U-Line 2115R Service Manual page 66

SIDE-TO-SIDE ADJUSTMENT

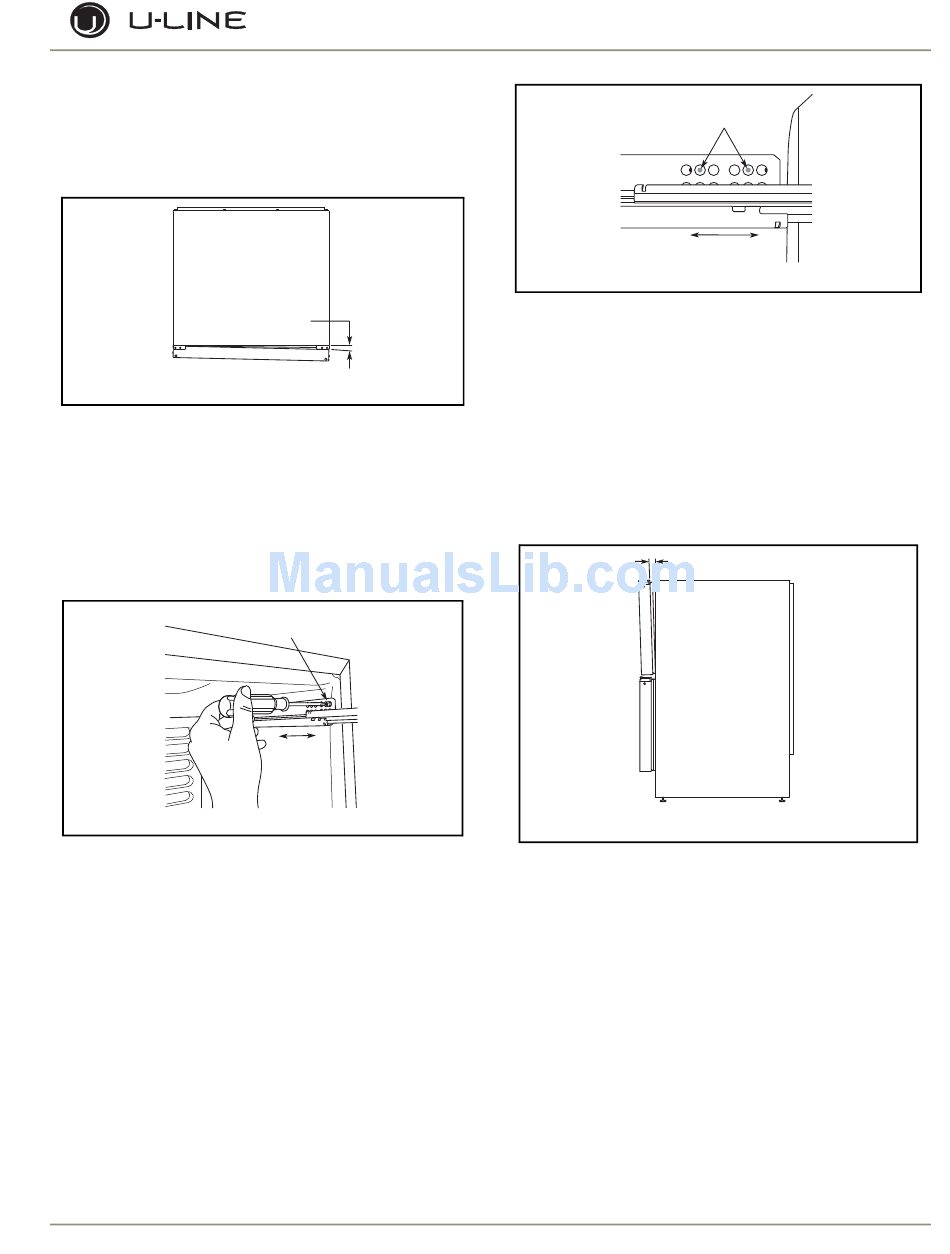

See Figure 46. The drawer will need a side-to-side adjustment if,
when viewed from the top, the drawer front is not square with the
sides of the cabinet. This is caused by one of the slides being
mounted too far forward on the unit's liner.
N t o i l A n g
T p o
Figure 46
Minor Adjustment
NOTE: The mounting holes on the slide are slightly larger than the screws'
diameter.
1. Loosen the slide's mounting screws.
2. Push the slide backward.
3. Retighten the screws (Figure 47).
Figure 47
Severe Adjustment
NOTE: The slides have extra mounting holes that may be used.
1. Remove the slide's mounting screws.
2. Reposition the slide so it is the same distance from the front of the
liner as the other slide. Measure to confirm.
3. Mark new drilling holes using different sets of mounting holes on
the slide (Figure 48).
d e i S e d t - - o i S e d
V e i w f o U t i n
ULIN_0315_A
o L s o n e
M u o i t n g n c S e r w s
P u h s i l S e d
a B k c w a d r
ULIN_0316_A
Section 3 - Service and Repair
M
NOTE: Front location holes are shown. Corresponding rear holes will also
need to be marked.
4. Drill all the new holes with a #30 drill bit.
5. Remount the slide.
FRONT-TO-BACK ADJUSTMENT
See Figure 49. The drawer will need a front-to-back adjustment if,
when viewed from the side, the drawer front is cocked forward or
back. This is caused by the slide mountings not being level front to
back.
N t o
i S
Minor Adjustment
NOTE: The mounting holes on the slide are slightly larger than the screws'
diameter.
1. Loosen one slide's mounting screws.
2. Level the slide.
3. Retighten the screws (Figure 50).
a k r a d n D l l i r N e w
M u o i t n g n H l o s e
P u h s i l S e d
a B k c w a d r
ULIN_0318_A
Figure 48
i l A n g d e r F n o t - t - o a B k c
e d V e i w f o U t i n
ULIN_0319_A
Figure 49
3-51
