TurboChef high h BATCH 2 Owner's Manual

Rapid cook oven
Hide thumbs Also See for high h BATCH 2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual
TM
Owner's Manual
fo r t h e tu rb o c h ef h ig h h ba tc h 2
r a p i d c o o k o ve n
T M
© 2009-2013 TurboChef Technologies, Inc.

Advertisement

Table of Contents
loading

Related Manuals for TurboChef high h BATCH 2

Summary of Contents for TurboChef high h BATCH 2

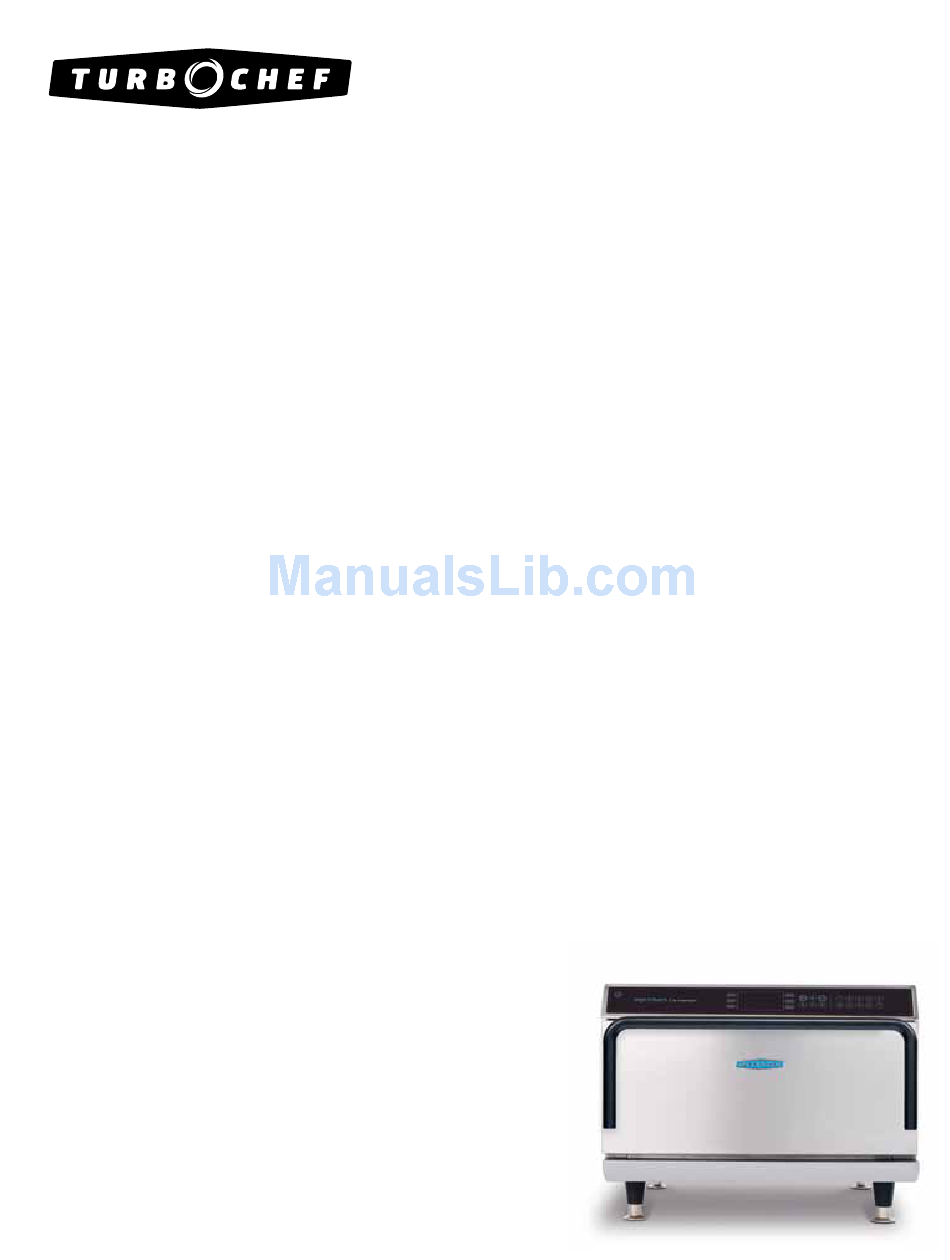

  • Page 1 Owner’s Manual fo r t h e tu rb o c h ef h ig h h ba tc h 2 r a p i d c o o k o ve n © 2009-2013 TurboChef Technologies, Inc.
  • Page 3 model serial number installed by installation checked by service center name / number For service or information: w i th in n o r th am e r i c a c a l l Customer Service at 1-800-90turbo ou tsi d e n o r th am e r i c a c al l +1-214-379-6000 or Your Authorized Distributor...
  • Page 4 The information contained in this manual is important for the proper installation, use, maintenance, and repair of this oven. Follow these procedures and instructions to ensure satisfactory baking results and years of trouble-free service. Errors – descriptive, typographic, or pictorial – are subject to correction. Specifications are subject to change without notice.

  • Page 5: Table Of Contents

    Table of Contents Important Safety Instructions General Safety Information Reducing Fire Risk Preventing Oven Damage Grounding Instructions Power Cord Replacement Specifications and Installation Theory of Operation Certifications Dimensions Construction Electrical Specifications Installation Packaging Damaged Shipment Claims Lifting and Placing the Oven Double Stacking Ovens Built-in Installation Installation Near Open Heat Source...
  • Page 6 Operating the Oven User Controls Cooking Additional Cooking Options Time Screen Done Screen Options Menu Enabling/Disabling the Edit Menu Erasing Oven Settings Enabling/Disabling the Write Card Function Enabling/Disabling the Time Screen Enabling/Disabling the Done Screen Demonstration Mode Programming Recipes Adjusting the Cook Cavity Temperature Modifying Recipes Ordering a Smart Card Loading a Menu from a Smart Card...

  • Page 7: Important Safety Instructions

    I M P O r T A N T S A f e T y I N S T r u C T I O N S IMPOrTANT SAfeTy INSTruCTIONS WARNING: When operating this oven, strictly adhere to all safety precautions below, on page ii, and throughout this manual to reduce the risk of burns, electric shock, fire, injury, oven damage, or property damage.

  • Page 8: Preventing Oven Damage

    ü Once per month or more frequently depending on use, perform the deep cleaning procedure (pages 9-10). Failure to do so will adversely affect cooking performance and shorten the life of the oven. ü Clean the oven only with TurboChef Oven Cleaner. ü Operate the oven only when food is in the cook chamber.

  • Page 9: Specifications And Installation

    1.45 cu. ft. (41.1 liters) Wall Clearance 2” (51 mm) Sides 2” (51 mm) 25.9 in. (658 mm) 31.7 in. (805 mm) 29.2 in. (742 mm) 10 in. (254 mm) f i gu r e 1: High h Batch 2 Dimensions...

  • Page 10: Construction

    S P e C I f I C A T I O N S A N D I N S T A L L A T I O N Construction Latin America HHBLA (P/N: HHB-8603-1K-2073) exterior Phase Stainless steel front, top, back, and powder- Voltage 230 VAC coated sides...

  • Page 11: Installation

    To file a claim, contact the shipping company within 24 hours of Bolt receiving the shipment. TurboChef is not respon- sible if a product is damaged during shipment. flat Washer Lifting and Placing the Oven...

  • Page 12: Double Stacking Ovens

    S P e C I f I C A T I O N S A N D I N S T A L L A T I O N Double Stacking Ovens 5. Remove the screws from the top oven, as shown in Figure 3.

  • Page 13: Built-In Installation

    S P e C I f I C A T I O N S A N D I N S T A L L A T I O N Built-In Installation Installation Near Open Heat Source TurboChef ovens are designed to be installed on a When placing a TurboChef oven near an open countertop or table. They are not intended for built- heat source, strictly adhere to the following in or enclosed installation.

  • Page 14: Setup

    Ventilation requirements Reinforcement: Welded gusset plates between legs and top to ensure rigidity/eliminate stand racking The TurboChef High h Batch 2 oven has been Frame: Fully welded 1.5” x 1.5” (38 mm x 38 approved by Underwriter’s Laboratory for ventless...

  • Page 15: Removing Jetplates

    S P e C I f I C A T I O N S A N D I N S T A L L A T I O N NOTE: If using 18” 39.2” (996 mm) (457 mm) cart, subtract 39.2”...

  • Page 16: Oven Maintenance

    The daily and deep cleaning procedures below will help the oven maintain top performance. Use only TurboChef Oven Cleaner; any other cleaner can damage and void the warranty on critical parts. To order TurboChef Oven Cleaner, Oven Guard, or a new filter, call 1-800-90TURBO, +1-214-379-6000, or your Authorized Distributor.

  • Page 17: Deep Cleaning

    O V e N M A I N T e N A N C e Deep Cleaning TurboChef recommends deep-cleaning once per month or more frequently depend- ing on oven use. Step 1: Prepare the Oven Ensure the oven is turned off – press the ON/OFF key.
  • Page 18 O V e N M A I N T e N A N C e Step 6: Clean the Cook Chamber. DO NOT spray Oven Cleaner directly on the back oven wall. Doing so may damage the oven. Spray Oven Cleaner to break up stubborn stains and allow it to penetrate for five minutes.

  • Page 19: Operating The Oven

    O P e r A T I N G T H e O V e N Operating the Oven fi gure 8: High h Batch 2 Keypad user Controls This section contains information on: User controls Refer to Figure 8.

  • Page 20: Cooking

    O P e r A T I N G T H e O V e N Cooking Additional Cooking Options Time Screen 1. Press the on/off key to turn the oven on. Refer to Figure 11. If the time screen is enabled, 2.
  • Page 21 O P e r A T I N G T H e O V e N ENTER COOK TIME 02:00 START Press the “Start” soft key (bottom right) Use the up and down keys to adjust the cook to start cooking. time in 5-second increments.

  • Page 22: Options Menu

    O P e r A T I N G T H e O V e N Options Menu enabling/Disabling the edit Menu Refer to Figure 13. Enabling the edit menu Use the options menu to: allows operators to modify the cook cavity Enable/disable the edit menu temperature, group/item names, and recipe Erase all oven settings...

  • Page 23: Enabling/Disabling The Time Screen

    O P e r A T I N G T H e O V e N enabling/Disabling the Time Screen enabling/Disabling Done Screen Refer to Figure 16. Enabling the done screen Refer to Figure 15. Enabling the time screen allows allows the operator to: the operator to adjust the total cook time before cooking.

  • Page 24: Programming Recipes

    O P e r A T I N G T H e O V e N Programming recipes 6. Select the food group that contains the item to be modified (Figure 18). Programming options include: 7. Select the food item to be modified (Figure 19). Adjusting the temperature set point 8.
  • Page 25 O P e r A T I N G T H e O V e N EDIT GROUP FROZEN PIZZA FRESH PIZZA APPETIZERS BAKING SANDWICH ROAST Step: 6 NOTE: Press the down key to view more food groups. In this example, pressing the top left soft key would access all food items in the “Frozen Pizza”...

  • Page 26: Ordering A Smart Card

    O P e r A T I N G T H e O V e N Ordering a Smart Card Saving a Menu to a Smart Card To order a smart card, call 1-800-90TURBO, CAUTION: Saving a menu to a smart +1 214-379-6000, or your Authorized Distributor.
  • Page 27 O P e r A T I N G T H e O V e N LOADING . . . FROM CARD Step: 3 Step: 4 fi gure 22: Loading from Smart Card SAVING . . . TO CARD Step: 4 Step: 5 fi gure 23: Saving to Smart Card 1ST GROUP...

  • Page 28: Troubleshooting Tips

    T r O u B L e S H O O T I N G T I P S Troubleshooting Tips Checking the fault Log To help ensure troubleshooting accuracy and to minimize the time your oven is down, please Before calling Customer Support, write down any follow the steps below regarding: faults the oven has logged.

  • Page 29: Table Of Common Issues And Solutions

    T r O u B L e S H O O T I N G T I P S I S S u e P O S S I B L e S O L u T I O N ( S ) Oven is not receiving power.

  • Page 30: North America Limited Warranty

    TurboChef Technologies, Inc. (“TurboChef”) warrants to you, the purchaser, that under normal use, the TurboChef High h Batch 2 Oven you have purchased (the “Equipment”) will be free from defects in mate- rial and workmanship during the Warranty Period, subject to the terms and conditions set forth herein.
  • Page 31 If the full invoiced amount for Equipment purchased has not been paid within forty-five (45) days from the invoice date, then TurboChef will have no obligation to honor this or any other warranty on the Equipment until payment is received in full, and any accrued interest or other charges have been satisfied, at which time warranty coverage will be reinstated, but the Warranty Period will not be extended.
  • Page 32 (including negligence), or otherwise, resulting from any breach by TurboChef or its service agents of this limited warranty, or resulting from the manufacture, use, or defects, of or in the Equipment, even if TurboChef was apprised of the possibility of such damages.

  • Page 33: International Limited Warranty

    International Limited Warranty TurboChef High h Batch 2 Oven - International This limited warranty shall apply to the sales of all TurboChef High h Batch 2 ovens (the “Equipment”) manufactured by TurboChef Technologies, Inc. (“TurboChef”), and sold to purchasers outside of the United States, Canada, Puerto Rico, Central and South America by an Authorized Distributor of TurboChef International (the “Authorized Distributor”).
  • Page 34 Fax: +1 214-379-6073 The claim must include the serial number of the Equipment and be received by TurboChef on or before the last day of the Warranty Period. Upon receipt of Your claim, TurboChef will promptly notify an Authorized Distributor or an authorized service agent to contact You, to verify Your claim and, if necessary, to arrange for an on-site repair visit during normal working hours.
  • Page 35 You or any third party, whether arising in contract, tort (including negli- gence), or otherwise resulting from any breach by TurboChef or the Authorized Distributor of the lim- ited warranty provided herein.
  • Page 36 + 1 2 1 4 .3 7 9 . 6 0 0 0 p h on e + 1 2 1 4 .3 7 9 . 6 0 7 3 fa x Customer Service: 8 0 0 .9 0 tu rbo Part Number: HHB-8326 / Revision D / April 2013 © 2009–2013 TurboChef Technologies, Inc. www.turbochef.com...
