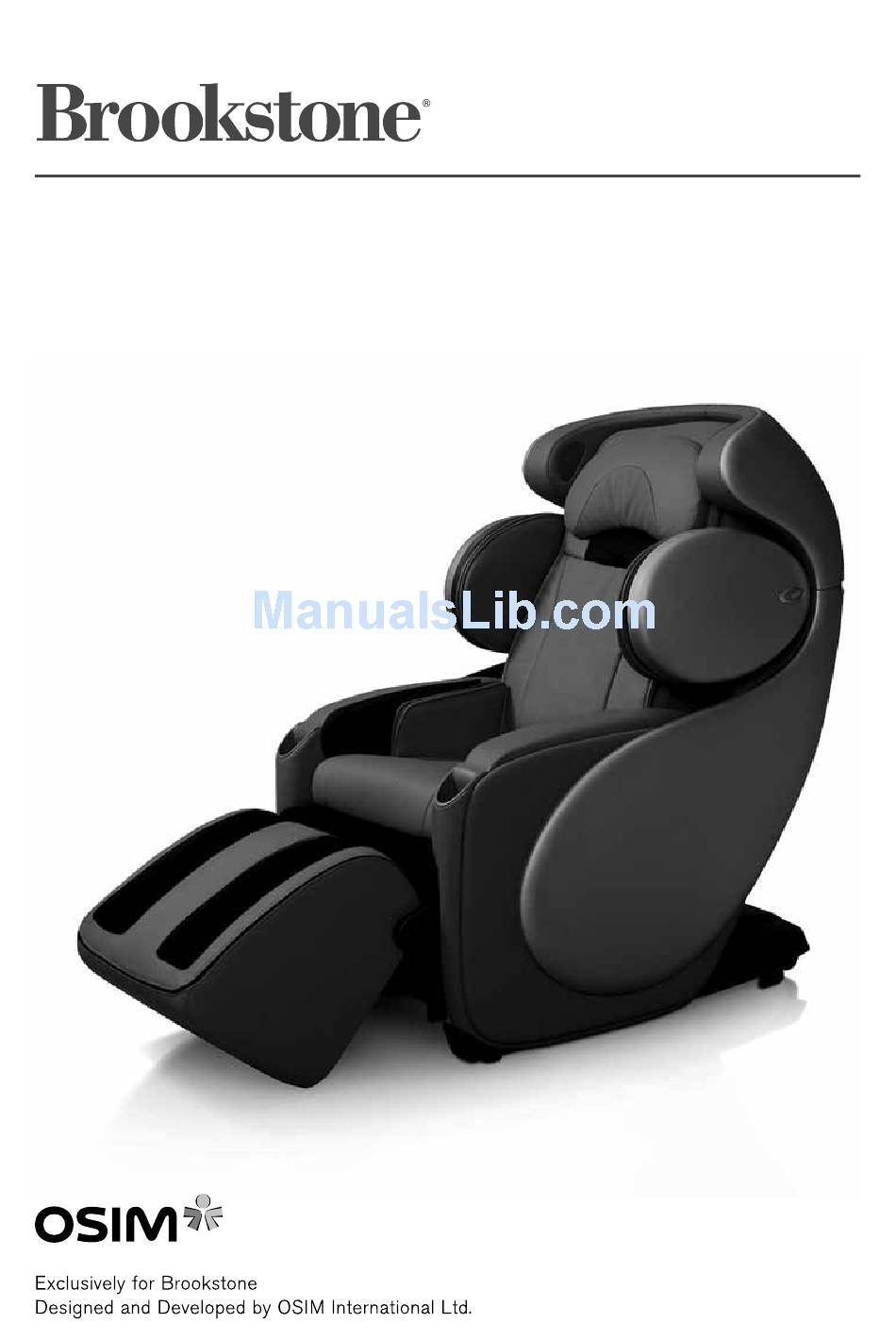

  • Page 1 OSIM uDevine ® ™ Massage Chair...

  • Page 2: Table Of Contents

    OS-808 uDivine Congratulations on your purchase! Thank you for purchasing the OSIM uDivine ® Massage Chair. Before you start using the uDivine Massage Chair, please read this operation manual thoroughly for the correct methods of usage, especially taking note of the section on safety. Call our Delivery Support Team at 866-336-3199 if you have questions during delivery, or damage at time of delivery.

  • Page 3: Important Safety Instructions

    866-336-3199 Contact Brookstone Customer Service at 6. Keep the cord away from heated surfaces. 7. Never operate the massage chair with the air openings blocked. Keep the air openings free of lint, hair, and the like.
  • Page 4 IMPoRTanT safeTY InsTRUCTIons (continued) 14. Children should be supervised to ensure that they do not play with the product. 15. Burns may result from improper use. 16. Do not crush—avoid sharp folds. 17. Keep children away from extended foot support (or other similar parts). 18.
  • Page 5 Safety 2. safety Precautions • To ensure safe and correct use of the uDivine, do not operate it without reading this operation manual carefully. • Do not use the uDivine when the upholstery or seat is removed. This may cause injury or malfunction.
  • Page 6 Safety Caution • The uDivine is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the uDivine by a person responsible for their safety.
  • Page 7 Safety 6. Things to note about the Power Plug and Cord • Check that the Alternating Current (AC) voltage corresponds with the specifications indicated for the uDivine. • Do not connect or disconnect the power plug from the electrical outlet with wet hands.

  • Page 8: Names Of Parts And Functions

    Names of parts and functions 1. Speakers 10. Controller and casing 2. Backrest pad 11. Casters 3. Hip massage unit 12. Footrest massage unit 4. Music source cable plug and casing 13. Backrest cover 5. Seat 14. Reclining safety mechanism 6.
  • Page 9 Names of parts and functions Controller LCD controller display To display information on massage program, timer, massage intensity and speed, 4-way directional roller position, etc. button To toggle between menu Menu button items (up/down/left/ right) for selection of To return the controller display desired item.

  • Page 10: Features And Effectiveness

    Features and effectiveness Features • Stylish controller with full-colored LCD display for item selection and massage progress report. • A deep massage, using a 3D, 4-roller system, airbags and kneading discs on • Built in casters for easy movement. full body. •...

  • Page 11: Preparation Before Use

    Preparation before use Setting up the uDivine Placing the uDivine • The chair is packed with its backrest in • Allow at least 28" of space behind the its fully reclined position. uDivine and 32" of space in front, so the uDivine can recline without obstruction •...
  • Page 12 Preparation before use Moving the uDivine Moving Method (2) • Raise the backrest fully to its upright The uDivine is fitted with casters for easy position and retract the footrest fully. maneuverability over a short distance. • Turn the main power switch OFF and •...
  • Page 13 Preparation before use Adjusting the shoulder Power ON/OFF massage units • Connect the power cord to the uDivine power inlet. • Slightly push to adjust the shoulder • Insert the power plug of the uDivine into massage units to your desired width the electrical outlet.
  • Page 14 Stop using the uDivine immediately if • Press and hold the backrest button [ you find even the slightest tear. Unplug until the backrest is lifted to the desired the uDivine and contact Brookstone angle. Customer Service at 866-336-3199. Note To recline the backrest •...
  • Page 15 Stop using the uDivine immediately if you find Safety release knob even the slightest tear. Unplug the uDivine and contact Brookstone Customer Service. • Turn your feet sideways, then lift your Upright position knees to ease legs from the footrest.
  • Page 16 Caution • In an emergency or any malfunction, press [ ] button to stop the massage. Rollers will return to storage position. Turn off the Main Switch. • You can change from one Automatic Program to another program at any time without having to wait for it to complete.

  • Page 17: Massage Programs And Selections

    Massage programs and selections The OSIM uDivine lets you personalize selections in 3 main massage categories: Setting, Pre-set Programs and Localized Area Programs. Note • Keep each massage session at a maximum of 15 minutes. • Do not massage any particular area of the body for more than 5 minutes. •...
  • Page 18 Massage programs and selections Setting 1. Turn on the controller by pressing [ 2. By default, the Quick massage program icon [ will illuminate on standby for selection. 3. Using the 4-way directional buttons, press ‘DOWN’ to select Settings [ 4.
  • Page 19 Massage programs and selections 5. Press [OK] to view Shoulder Position (9 levels). 6. Use the 4-way directional buttons ‘UP’ or ‘DOWN’ to adjust your desired shoulder height. Press [OK] to confirm your selection and return to Settings. 7. Press ‘RIGHT’ to select the Timer icon [ 8.
  • Page 20 Massage programs and selections 10. Press ‘RIGHT’ to select the Language icon [ 11. Press [OK] to view Language selection (English / Simplified Chinese /Korean). 12. Using the 4-way directional buttons, press ‘LEFT’ or ‘RIGHT’ to select your desired language. Press [OK] to confirm your selection and return to Settings.
  • Page 21 Massage programs and selections Type of Pre-set Program Main menu Quick Efficient 5-minute, full body massage for instant recovery. Neck & Shoulders For quick relief of aches & tension on the neck & shoulders. Fully body massage Relax Head-to-toe pampering to relax the body & mind. Energize Invigorating massage to stimulate the body &...
  • Page 22 Massage programs and selections 3. You can select other pre-set programs by pressing the ‘RIGHT’ button to switch to the Neck & Shoulder massage program [ 4. Press ‘UP’ to select the Full Body Massage [ function (9 pre-set programs). 5.
  • Page 23 Massage programs and selections 7. Massage will begin after detection is completed. Refer to #9. Note: Manually adjust the shoulder height position by pressing [OK] during the Auto Shoulder Detection function. Refer to #8. 8. Using the 4-way directional buttons ‘UP’ or ‘DOWN’ to adjust your desired shoulder height (9 levels).
  • Page 24 Massage programs and selections 10. By default, the Strength icon [ ] will illuminate on standby for selection. 11. To customize your desired massage area, press [OK] to proceed to the next screen. 12. Use the 4-way directional buttons to adjust and select your desired massage area and intensity level.
  • Page 25 Massage programs and selections 14. Press [OK] to proceed to the next screen for Foot Massage customization. 15. Use the 4-way directional buttons to adjust and select your desired massage area and intensity level. Press [OK] to confirm your selection and return to the Sub-menu.
  • Page 26 Massage programs and selections 3. At the Sub-menu screen, the Strength icon [ will illuminate for your adjustment. 4. Press [OK] to proceed to the next screen. 5. Use the 4-way directional buttons to select your desired massage area and intensity level. Press [OK] to confirm your selection.
  • Page 27 Massage programs and selections 7. Press [OK] to proceed to the next screen listing types of backrest massage (Kneading/Tapping/ Dual/Full Rolling/Partial Rolling; Speed/Direction/ Width adjustment of rollers). 8. Use the 4-way directional buttons to adjust and select your desired settings. Press ‘DOWN’ to select the Foot Massage function.
  • Page 28 Massage programs and selections 13. At the Sub-menu screen, the Shoulder Position Adjustment icon [ ] will illuminate for your selection. 14. Press [OK] to view the Shoulder Position Adjustment (9 levels) screen. 15. Use the 4-way directional buttons ‘UP’ or ‘DOWN’ to adjust desired shoulder height.
  • Page 29 Massage programs and selections Type of Strength adjustment Backrest roller massage Air massage low/High Shoulder Low/Mid/High Upper arm Lower arm Lower back Low/Mid/High low/High Seat (Hip massage) low/High Mode combinations of Backrest massage Type Kneading Tapping Dual Selection Direction Speed Rolling Width Function of selection...
  • Page 30 Massage programs and selections Mode of Footrest massage Mode of Air massage Kneading Auto/High/Low/Off Upper arm On/Off Vibration Auto/High/Low/Off Lower arm On/Off Warm air On/Off Seat (Hip massage) On/Off Note • Keep each massage session at a maximum of 15 minutes. •...
  • Page 31 Massage programs and selections To stop a massage session After using the uDivine Return the backrest to the upright position • To stop a massage, press the [ and lower/retract the footrest completely button on the controller. This will bring after use.

  • Page 32: Product Care And Storage

    Product care and storage Storing the uDivine Controller • Wipe dust and dirt off the uDivine with a • Use only a soft, dry cloth to clean the soft, dry cloth after use. controller. • Keep the uDivine clean and away from places of high humidity.

  • Page 33: Troubleshooting

    Brookstone Customer Service for servicing. Do not dismantle or attempt to repair the uDivine yourself. Doing so will void the warranty and OSIM will not be responsible for any subsequent consequences.
  • Page 34 Troubleshooting Problem Possible causes / action • The uDivine does not start • Ensure that the main switch is turned on. operation. • Ensure that the power plug is firmly connected to the electrical outlet. • Check that the voltage at the electrical outlet is adequate.

  • Page 35: Error Codes

    The product is overheating. Turn off the main switch and let the product cool down for at least 30 minutes before using again. Other error codes Turn off the main switch and re-start the program. If the problem persists, please turn off the main switch and contact Brookstone Customer Service.

  • Page 36: Specifications

    Specifications Model number/name OSIM OS-808 uDivine Voltage available 110-120v~ 60Hz Power consumption Approx. 280W Rating time 20 minutes Auto timer Approx. 15 minutes Reclining angle Approx. 113 to 153 degrees Backrest massage unit Kneading speed Min. 35 rpm / Max. 43 rpm (approximate) Kneading width 2.75"...
  • Page 37 Seat massage unit Air pressure Not more than 4.35 PSI Footrest massage unit Calf kneading speed Min. 20 rpm / Max. 27 rpm (approximate) Rolling / vibration speed 2000 rpm (approximate) Warm air temperature 104° F (approximate) Chair dimension Upright position Approx.
  • Page 38 Notes...

  • Page 39: Warranty

    ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product.
  • Page 40 Find thousands more great ideas online 786403 Merrimack, New Hampshire USA 03054 • 800-846-3000 • Brookstone.com...
