Beyerdynamic MCE 530 Features And Specifications

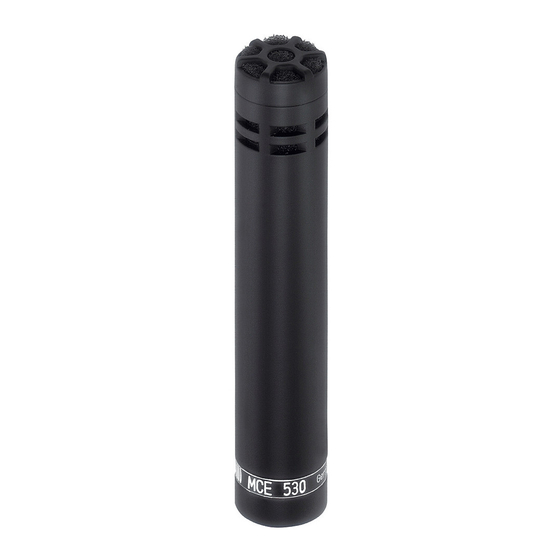

MCE 530
Condenser Microphone
V
ERSIONS
MCE 530 Condenser microphone supplied with MKV 109 microphone clamp for
shaft diameter of 19-21 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 466.387
MCE 530 Stereo Set consisting of 2 matched MCE 530, 2 x MKV 109, 2 x WS 53,
stereo bracket and rugged plastic case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 471.941
O A
PTIONAL CCESSORIES
BMC 05 FM BLK Standard microphone cable XLR-XLR, 5 m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 434.787
BMC 10 FM BLK Standard microphone cable XLR-XLR, 10 m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 434.795
EA 19/25 Elastic suspension 19 - 25 mm, with MKV 11 microphone clamp . . . . . . . . . . . . Order # 407.194
MAV 800 Clip for hanging mounting of microphones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 448.133
MAV 802 Multi-purpose mounting for two microphones . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 453.323
WS 53 Wind screen for MCE 530, charcoal-grey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 436.607
Germany
Theresienstr. 8
D-74072 Heilbronn
Tel. +49 (0 )71 31 / 6 17-0
Fax +49 (0 )71 31 / 617-224
E-mail: info@beyerdynamic.de
Internet: www.beyerdynamic.de
F
EATURES
• Cardioid polar pattern
• High SPL capability
• Slim, unobtrusive design
• Plastic casing strenghtened with carbon fibres
• Phantom powering 11 - 52 V
A
PPLICATIONS
The MCE 530 is a cardioid condenser microphone suitable
for both project studios and semi-professionals.
This microphone has been developed for studio and home
recording applications. Its frequency response has been
optimised for miking instruments and choirs. Using the
WS 53 wind screen the MCE 530 is also an ideal speaker's
microphone in churches and halls. Due to its light weight
it can be easily mounted onto goosenecks.
The cardioid polar pattern gives the MCE 530 high gain-
before feedback and eliminates noise from the rear.
Its plastic casing is strengthened with carbon fibres and is
extremely light and rugged. Its small and short design
permits flexible and unobtrusive positioning.
The microphone is powered by phantom power between
11 and 52 V.
Exceptional XY stereo recordings may be achieved using
two MCE 530 microphones with the adjustable MAV 802
mounting for two microphones.
United States
56 Central Ave.
Farmingdale, NY 11735
Tel. +1 (631) 293-3200
Fax +1 (631) 293-3288
E-mail: salesUSA@beyerdynamic.com
Internet: www.beyerdynamic.com
Great Britain
17 Albert Drive
Burgess Hill RH15 9TN
Tel. +44 (0)1444 / 258 258
Fax +44 (0)1444 / 258 444
E-mail: sales@beyerdynamic.co.uk
Internet: www.beyerdynamic.co.uk
