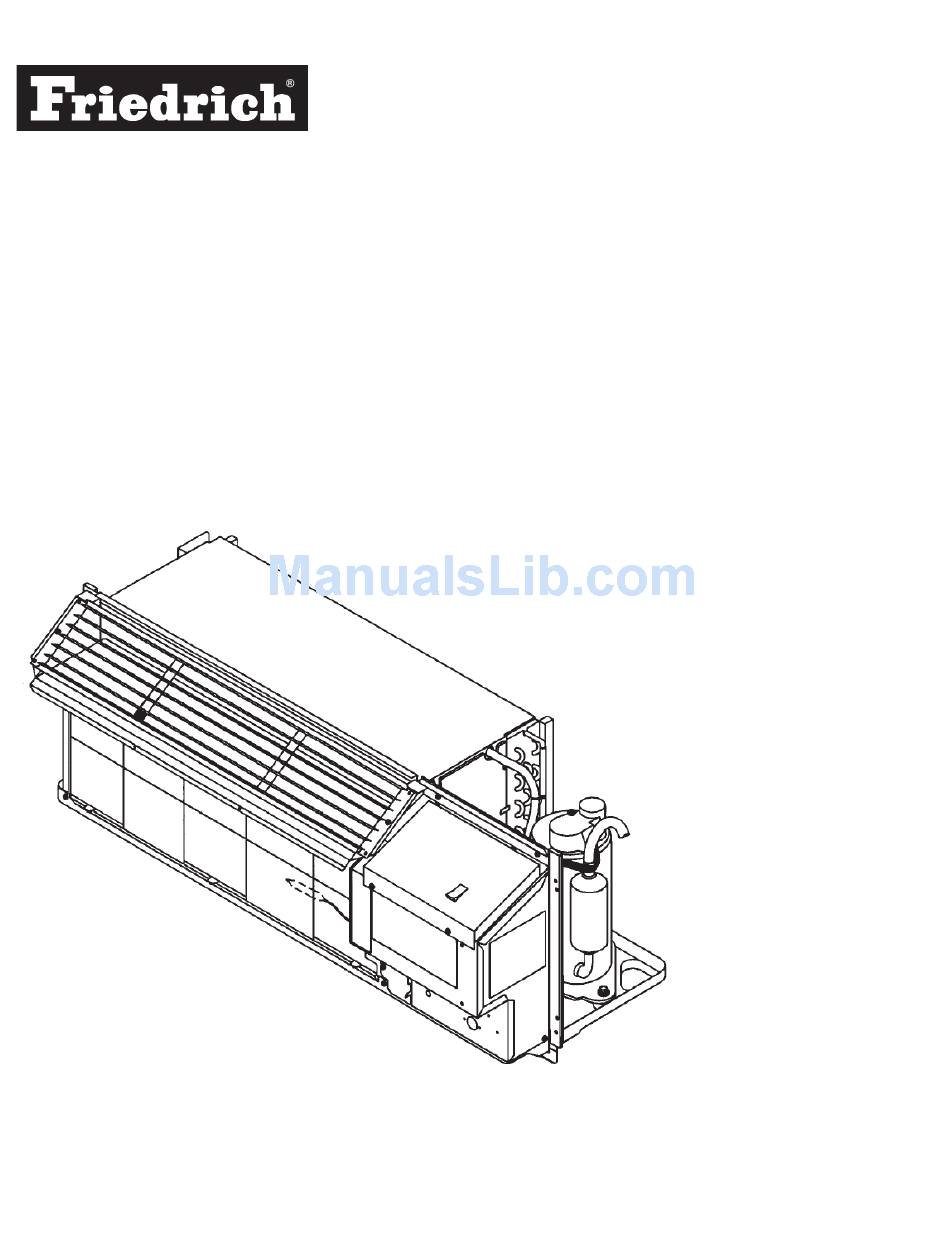

- Page 1 Parts Manual PT AC WallMaster Packaged Terminal Air Conditioner T Series WMPTAC02 (10-02)
-
Page 2: Table Of Contents
Table of Contents PTAC Model Number Identification Guide ... 3 PTAC Serial Number Identification Guide ... 3 Unit Assembly Drawing ... 4 Unit Assembly Parts List ... 5 Air Handler ... 6 Air Handler Parts List ... 7 Control Box Assembly ... 8 Control Box Parts List ... -
Page 3: Ptac Model Number Identification Guide
T = T Series Unit Type E = Electric Heat/No Heat H = Heat Pump Design Series C = Friedrich Manufactured A & B = ICP Manufactured Nominal Cooling Capacity 07 = 6,500 - 7,200 BTUh 09 = 8,500 - 9,200 BTUh... -
Page 4: Unit Assembly Drawing
Unit Assembly... -
Page 5: Unit Assembly Parts List
Part Number Description 25016900 Coil, Evaporator 25018600 Coil, Evaporator 20094777 Capillary, Tube .054X37" 21058777 Capillary, Tube .054X22" 21058804 Capillary, Tube .064X24" 21058885 Capillary, Tube Heating/Cooling .070X29" 21058713 Capillary, Tube Heating .049X17" 21058787 Capillary, Tube Heating .049X13" 21058812 Capillary, Tube Heating .049X17" 21058587 Check Valve 21058568... -
Page 6: Air Handler
Air Handler... -
Page 7: Air Handler Parts List
Page 5 Part Number Description 21058386 Blower Housing 21058867 Blower Housing 21062325 Blower Access Cover 21062145 Plate, Bearing Support 21058350 Scroll, Blower with Insulation 21059150 Scroll, Blower with Insulation 25007800 Blower Wheel, Indoor (evaporator) 25007801 Blower Wheel, Outdoor (condenser) 25007802 Blower Wheel, Outdoor (condenser) 21064013 Belt (black) -
Page 8: Control Box Assembly
Control Box Assembly... -
Page 9: Control Box Parts List
Part Number Description 25032800 Pump, Condensate 230V 25032900 Pump, Condensate 265V 21058433 Switch, Fan Speed Hi/Lo 21058433 Switch, Fan Continuous/Cycle 25011100 Thermostat, Defrost 61080345 Capacitor 15/7.5mfd@440V 230V 61080343 Capacitor 15/5.0mfd@370V 265V 61080339 Capacitor 25/5.0mfd@370V 265V 61080337 Capacitor 25/7.5mfd@370V 230V 61080344 Capacitor 25/5.0mfd@440V 265V 61822401 Thermostat, Indoor... -
Page 10: Front Cover Assembly Drawing
Front Cover & Front Cover Parts List Front Cover Parts Part Number Description 21067151 Front Cover Complete (includes #92 & #93) 25027500 Front Cover Complete (includes #92 & #93) 25031900 Control Door 21058685 Return Air Grill 25025600 Filter (top removal only) 21058402 Filter 21095059... -
Page 11: Central Desk Control Models
Notes & Comments These kits are to retrofit any "T" series PTAC tolerance ring "Flex Drive" to the Friedrich Drive system. Friedrich units with serial number prefix "JECS..." to "JELS..." were manufactured with the tolerance ring design. ICP manufactured units that have not been retrofitted to an outboard bearing. - Page 12 Use Factory Certified Parts. FRIEDRICH AIR CONDITIONING CO. Post Office Box 1540 · San Antonio, Texas 78295-1540 4200 N. Pan Am Expressway · San Antonio, Texas 78218-5212 (210) 357-4400 · FAX (210) 357-4480 www.friedrich.com Printed in the U.S.A. WMPTAC02 (10-02)
