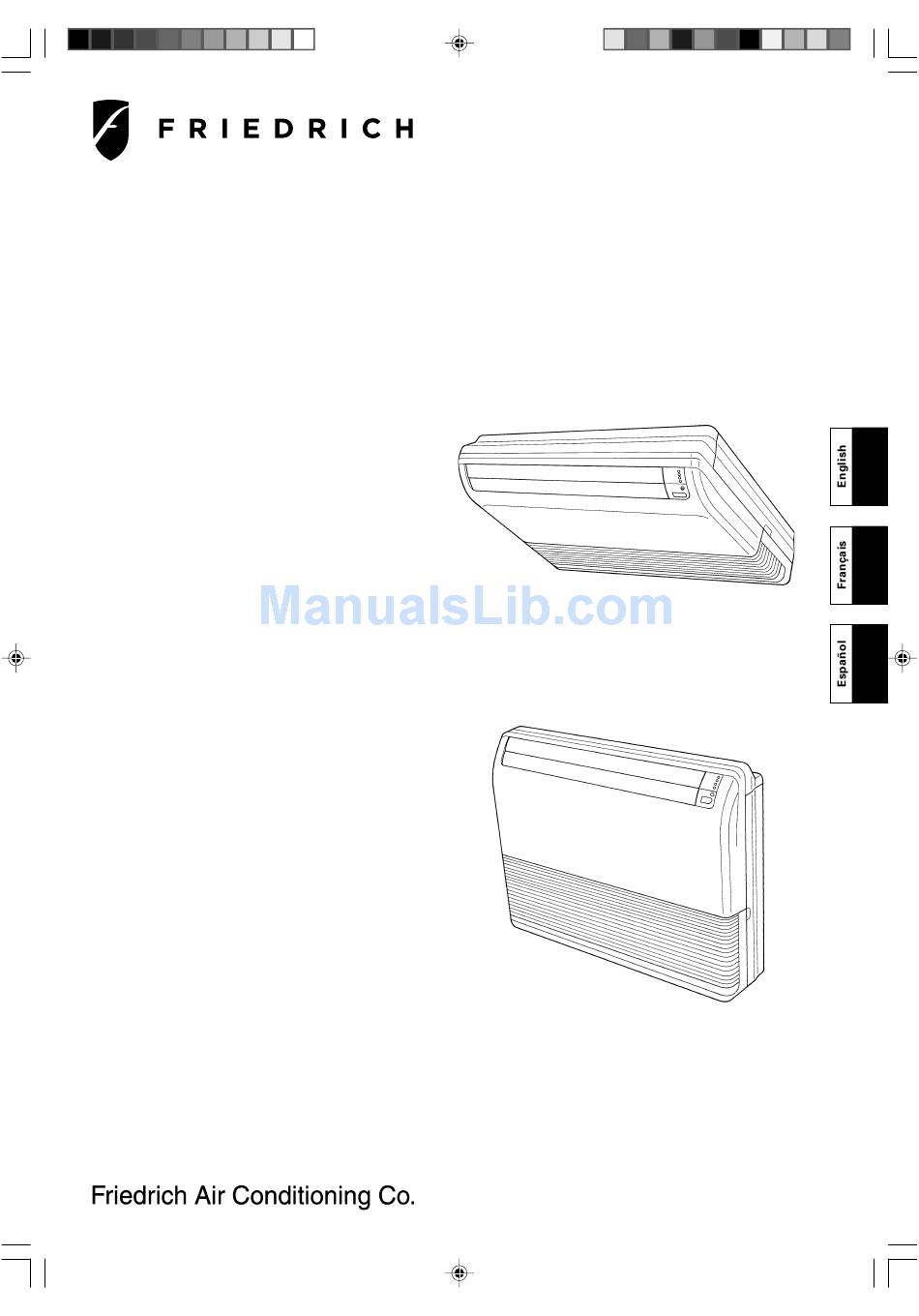

OPERATING MANUAL
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
AIR CONDITIONER
FLOOR CONSOLE/
UNDER CEILING
DUAL TYPE
KEEP THIS MANUAL FOR FUTURE REFERENCE
CONSERVEZ CE MODE D'EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT
GUARDE ESTE MANUAL PARA PODERLO CONSULTAR EN EL FUTURO
P/N9359944072-01
9359944072-01_OM_cover.p65
1
1/21/10, 1:48 PM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Friedrich P/N9359944072-01
Summary of Contents for Friedrich P/N9359944072-01
-
Page 1: Operating Manual
MANUAL DE FUNCIONAMIENTO AIR CONDITIONER FLOOR CONSOLE/ UNDER CEILING DUAL TYPE KEEP THIS MANUAL FOR FUTURE REFERENCE CONSERVEZ CE MODE D'EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT GUARDE ESTE MANUAL PARA PODERLO CONSULTAR EN EL FUTURO P/N9359944072-01 9359944072-01_OM_cover.p65 1/21/10, 1:48 PM... -
Page 2: Table Of Contents
G Do not insert fingers or objects into the outlet port or intake grilles. G Do not start and stop air conditioner operation by disconnecting the power supply cord and so on. -
Page 3: Automatic Operation
G HEAT & COOL MODEL (REVERSE CYCLE) When the SLEEP timer button is pressed during Heating mode, the air conditioner’s thermostat setting is gradu- ally lowered during the period of operation; during Cool- ing or Dry mode, the thermostat setting is gradually rised during the period of operation. -
Page 4: Name Of Parts
NAME OF PARTS Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Fig. 1 Fig. 4 Fig. 5 En-3 9359944072-01_OM_en.p65 Fig. 2 Fig. 3 Fig. 6 1/21/10, 1:50 PM... - Page 5 G Perform a test run only when installing the air conditioner. If the signal to perform a test run is received during normal opera- tion, the air conditioner’s thermostat will malfunction.
-
Page 6: Preparation
G The remote control unit must be pointed at signal receiver to operate correctly. G Operating range: About 7 meters. G When a signal is properly received by the air conditioner, a beeping sound will be heard. G If no beep is heard, press the remote control unit button again. -
Page 7: Operation
To Select Mode Operation Press the START/STOP button. The indoor unit’s OPERATION indicator lamp (red) will light. The air conditioner will start operating. Press the MASTER CONTROL button to select the de- sired mode. Each time the button is pressed, the mode will change in the following... - Page 8 *Heating: G Use to warm your room. G When Heating mode is selected, the air conditioner will operate at very low fan speed for about 3 to 5 minutes, after which it will switch to the selected fan set- ting. This period of time is provided to allow the indoor unit to warm up before beginning full operation.
-
Page 9: Timer Operation
(OFF → ON, or OFF ← ON). G One example of PROGRAM timer use might be to have the air conditioner automatically stop (OFF timer) after you go to sleep, then start (ON timer) automatically in the morning before you rise. -
Page 10: Sleep Timer Operation
SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. To Use the SLEEP timer While the air conditioner is operating or stopped, press the SLEEP button. -
Page 11: Adjusting The Direction Of Air Circulation
7) for long periods of time, since water vapor may condense near the outlet louvers and drops of water may drip from the air conditioner. G When used in a room with infants, chil- dren, elderly or sick persons, the air... -
Page 12: Swing Operation
SWING OPERATION Begin air conditioner operation before performing this procedure. To select Vertical airflow SWING Operation Press the AIR FLOW DIRECTION VERTICAL SWING button. The SWING indicator lamp (VERTICAL SWING) (orange) will light. In this mode, the UP/DOWN air direction flaps will swing automatically to direct the air flow both up and down. -
Page 13: Cleaning And Care
CLEANING AND CARE G Before cleaning the air conditioner, be sure to turn it off and disconnect the power supply cord. CAUTION! G Be sure the intake grille is installed securely. G When removing and replacing the air filters, be sure not to touch the heat exchanger, as per- sonal injury may result. -
Page 14: Selecting The Remote Control Unit Signal Code
In this case, start again from step 1. The air conditioner signal code is set to A prior to shipment. Contact your retailer to change the signal code. The remote control unit resets to signal code A when the batteries in the remote control unit are replaced. If you use a signal code other than signal code A, reset the signal code after replacing the batteries. -
Page 15: Troubleshooting
G During Cooling or Dry operation, a thin mist may be seen emitted from the indoor unit. This results from the sudden Cooling of room air by the air emitted from the air conditioner, resulting in con- densation and misting. -
Page 16: Operating Tips
G Are the remote control unit’s batteries dead? G Are the remote control unit’s batteries loaded properly? G Are you using an air conditioner signal code other than signal code A? *Microcomputer-controlled Automatic Defrosting G When using the Heating mode under conditions of low... -
Page 17: Auto Restart
Multi-type Air conditioner This indoor unit can be connected to a multi-type outdoor unit. The multi-type air conditioner allows multiple indoor units to be operated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective output. - Page 18 OPERATING TIPS Notice Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). *G During use of the heating mode, the outdoor unit will occasionally commence the defrost operation for brief periods. During the defrosting operation, if the user sets the indoor unit for heating again, the defrosting mode will continue, and the heating operation will begin after completion of defrosting, with the result that some time...
- Page 19 9359944072-01_OM_es.p65 1/21/10, 1:56 PM...
- Page 20 Friedrich Air Conditioning Co. 4200 N. Pan Am San Antonio, Texas 78218 USA Tel. (210) 357-4400 Fax (210) 357-4490 Visit us at www. friedrich. com 9359944072-01_OM_es.p65 1/21/10, 1:56 PM...
