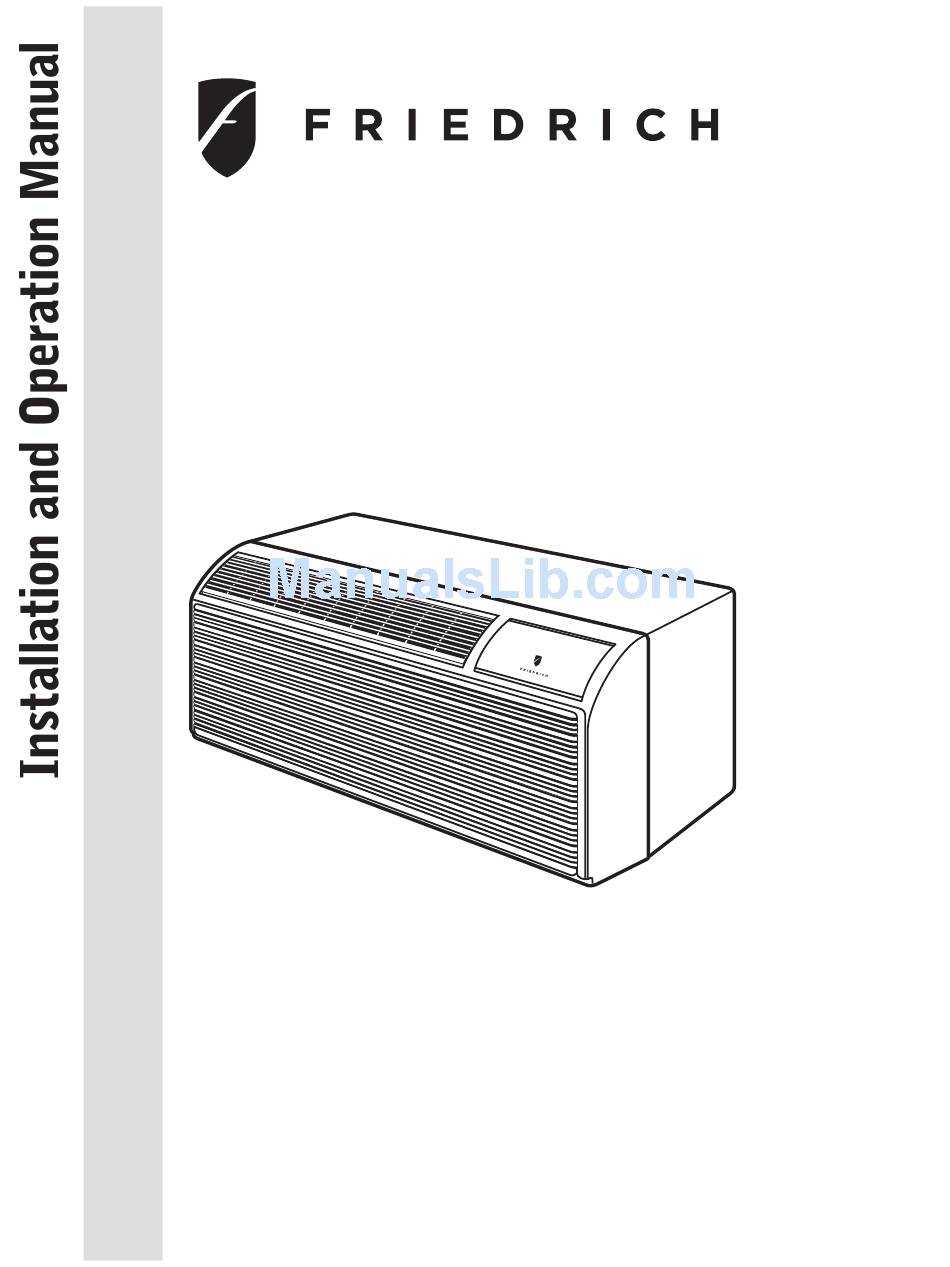

- Page 1 PTAC Packaged Terminal Air Conditioners & Heat Pumps ® ZoneAire...
- Page 2 PXDR10 Drain Kit Installation Instructions (optional for new construction)········································································ 10 PXGA Standard Grille Insta lation Instructions··········································································································· 12 Chassis Install Preparation····································································································································16 Chassis Installation·············································································································································· 18 Friedrich PTAC Digital Control and Unit Features······································································································· 19 System Configuration··········································································································································· 21 Digital Control User Input Configuration···················································································································· 22 Digital Control Operation······································································································································· 23 Remote Control Thermostat Installation····················································································································...
-
Page 3: Congratulations
Congratulations Thank you for your decision to purchase Friedrich. Your new Friedrich has been carefully engineered and manufactured to give you many years of dependable, efficient operation, maintaining a comfortable temperature and humidity level. Many extra features have been built into your unit to assure quiet operation, the greatest circulation of cool, dry air, and the most economic operation. -
Page 4: General Specifications
16-¼" x 42-¼" CHASSIS RETURN AIR GRILLE FRONT COVER MODEL NUMBER Engineering Digit Series PZ = Friedrich Digital PTAC Design Series System E = Cooling with electric heat H = Heat Pump with Auxiliary Heat Chassis S = Standard Nominal Capacity... -
Page 5: Ptac Installation Recommendations
FRP002 The above suggestions are for reference only and do not represent all possible installations. Please contact Friedrich for information regarding affects of other installation arrangements. By following these simple recommendations you can be confident that your Friedrich PTAC will provide years of worry free operation. -
Page 6: Wall Sleeve Installation Instructions
Wall Sleeve Installation Instructions (PDXWSA) NOTE: Insure that the unit is only installed in a wall structurally adequate to support the unit including the sleeve, chassis and accessories If the sleeve projects more than 8" into the room, a subbase or other means of support MUST be used. Please read these instructions completely before attempting installation. -
Page 7: Alternate Wall Instalations
Alternate Wall Instalations Figure 6 Figure 4 CurtainWall Panel Wall 1/4" MIN WALL OR PROJECTION WINDOW CASE FLANGE (BY OTHERS) OPTIONAL SUBBASE OPTIONAL SUBBASE LEVELING SCREW LEVELING SCREW FRP006 FRP004 Figure 5 Figure 7 Frame and Brick Veneer Block and Brick Veneer 1/4"... - Page 8 Figure 8 Wall Sleeve Attachment ALTERNATE FASTENING METHODS WALL (Field Supplied) SLEEVE NOTE: The Wall Sleeve must be horizontally level (side-to-side) and pitched 1/4 bubble to the outside when installed in an WOOD SCREW opening. TOGGLE BOLT The mounting hole location should be approximately 2-4”...
-
Page 9: One-Piece Deep Wall Sleeve Installation (Pdxwsext)
Drill two 3/16" holes through each side of the sleeve approximately If the chassis and exterior grille are to be installed later, leave the 4" from top and 4" from bottom of sleeve. Screw four #10 x 1" weatherboard and center support in place, otherwise remove and screws (included) or appropriate fasteners for your installation, dispose of them. -
Page 10: Pxdr10 Drain Kit Installation Instructions (Optional For New Construction)
PXDR10DrainKit Installation Remove the backing from the gasket and mount it on the flat side of the mounting plate. (See Figure 12, Page 11). Insert the drain Instructions (optional for new tube through the hole in the gasket and mounting plate so the tube flange will be against the wall sleeve. - Page 11 External Drain (for new Cover Plate Installation Mount the foam gasket to the cover plate. Using two #10 x ½" sheet construction or unit replacement) metal screws (provided), attach the cover plate to the remaining drain hole. Make certain the large flange on the plate is positioned When using an external drain system, the condensate is removed through at the bottom of the sleeve.
-
Page 12: Installation Instructions
PXGAStandard Grille Insert the remaining screws into the remaining holes and tighten securely. Installation Instructions WARNING Remove the center support and weatherboard if still installed in the sleeve. Insert six plastic grommets into the grille openings from the outside Falling Object Hazard of the grille as shown in Figure 13. - Page 13 Failure to do so can result in property damage, personal injury and/or death. B. Power Cord Information (230/208V models only) All Friedrich 230/208V PTAC units are shipped from the factory with a Figure 14 Leakage Current Detection Interrupter (LCDI) equipped power cord.The...
- Page 14 TABLE 2 MODEL HEATER kW Power Cord Kit Voltage Amperage Receptacle PZE / PZH07K 230/208 NEMA 6-20r PZE / PZH09K 230/208 NEMA 6-20r PZE / PZH12K 230/208 NEMA 6-20r PZE / PZH15K 230/208 NEMA 6-30r PZE / PZH09R NEMA 7-20r PZE / PZH12R NEMA 7-20r Electrical Wiring for 265 Volt...
- Page 15 Figure 16 Figure 15 TO CHASSIS JUNCTION STRAIGHT CONNECTOR WALL CONNECTION JUNCTION 4.0 IN. GROUND SCREW GROUND WIRE HARNESS COVER 18.0 IN. JUNCTION EXPOSE SCREWS BOX COVER WIRES FRP016 (1.0 IN.) TRIM HARNESS Figure 17 TO LENGTH LEADING SIDE FOR WIRE HARNESS INSERTION LOCKNUT SPACER...
- Page 16 FRP019 NOTE: Use a wall sleeve adapter kit (PXSE) if installing a P-Series IMPORTANT: When installing a Friedrich PTAC into an existing sleeve, chassis in a T-Series sleeve. it is important to ensure that the unit is installed completely. Inspection of the air seal between the condenser air baffles and around the indoor mounting flange is recommended.
- Page 17 Remove shipping screw from the vent door, if present. See Fig 21. CAUTION Figure 21 Unit Damage Hazard Shipping Screw Location Failure to follow this caution may result in equipment damage or improper operation. Failure to remove shipping tape and screw will prevent fresh air vent door from opening and may result in damage to vent door cable.
-
Page 18: Chassis Installation
Chassis Installation Place tabs over top rail (1). Push inward at bottom until panel snaps into place (2). Lift unit level and slide unit into wall sleeve until seal rests Reinstall front panel.See Figure 24. firmly against front of wall sleeve. CAUTION Figure 23 SecuringUnit... -
Page 19: Product Features
Product Features The new Friedrich digital PTAC has state of the art features to improve guest comfort,indoor air quality and conserve energy.Through the use of specifically designed control software for the PTAC industry Friedrich has accomplished what other.Manufacturer’s have only attempted –a quiet,dependable,affordable and easy to use PTAC. - Page 20 AIR FILTERS front cover. Friedrich PTAC units are capable of introducing up to 30 CFM of outside air into the conditioned space. FILTERED FRESH The outdoor air passes through a washable mesh screen to prevent debris from entering the airstream.
-
Page 21: System Configuration
System Configuration Figure 25 Air Vent Control Location Fresh Air Vent Control The vent control lever is located on the left side of the unit,behind the front panel. NOTE: The vent door shipping hardware must be removed before using the vent control lever.See page17,Figure21,(Remove Shipping Screw from Vent Door if present). -
Page 22: Digital Control User Input Configuration
Digital Control User Input Configuration The adjustable control dip switches are located at the front portion of the digital Smart Center. The inputs are only visible and accessible with the front cover removed from the PTAC. Dip Switch Setting Switch 5-Room Freeze Protection Units are shipped from the factory with the room freeze protection enable. -
Page 23: Digital Control Operation
Digital Control Operation Figure 29 Digital Control Panel FRP029 °F vs °C Display Heat/CoolModels (PZE) After pressing the “Heat” button, adjust the set point and the unit will cycle the electric strip on and off to maintain a comfortable room. The heater will The unit is factory configured to display all temperatures in degrees come on anytime that the room temperature is 2 °F below the set point. -
Page 24: Remote Control Thermostat Installation
Y = Call for Cooling W = Call for Heating All Friedrich PZ model PTAC units are factory configured to be controlled by either the chassis mounted Smart Center or a 24V remote wall B = Reversing Valve Energized in Heating.Mode mounted thermostat.The thermostat may be auto or manual changeover... - Page 25 Front Desk Control Terminal WARNING The Friedrich PZ model PTAC has built-in provisions for connection to an external switch to control power to the unit. The switch can be a central desk control system. Electrical Shock Hazard For front desk control operation, connect one side of the normal open Turn off electrical power before service switch to the R terminal and the other to the FD terminal.
-
Page 26: Final Inspection & Start-Up Checklist
& Operation manual, all accessory installation instructions, and the Ensure that the entire installation is in compliance with all applicable name, address and telephone number of the Authorized Friedrich national and local codes and ordinances that have jurisdiction. Warranty Service Company in the area for future reference if necessary. -
Page 27: Basic Troubleshooting
Basic Troubleshooting S olution Malfunction Possible Reasons Check the indicator LED on the LCID power head, it should be lit up, if not, push the RESET button, power line bad, units don’t have power if still don’t have voltage, but power grid has supply. - Page 28 Specifications and Features of our equipment. You can find the name of you local Authorized Service Provider by visiting Referrals to dealers, and distributors. our web site at www.friedrich.com. Use and Care information. If you require further assistance you can call the Customer Support Call Center at 1-800-541-6645.
-
Page 29: Accessories
SLEEVE EXTENSION RETROFIT KIT Galvanized zinc coated steel, 2 " sleeve extension attached to the room side of the sleeve to allow for the installation of a PZ-Series Friedrich PTAC in a T-Series sleeve. PXGA GRILLE Standard, stamped aluminium, anodized to resist chalking and oxidation. - Page 30 New Construction Accessories PDXDAA LATERAL DUCT ADAPTER Attaches to the Friedrich PTAC/PTHP unit to di- rect up to 35% of the total airflow to a second room. The unit-mounted duct plenum features a front-mounted aluminum grille that has two positions to provide the most optimal air direction.
-
Page 31: Limited Warranty
Friedrich Air Conditioning Company - International Division. Any defective part to be replaced must be made available to FRIEDRICH in exchange for the replacement part. Reasonable proof must be presented to be new or remanufactured. Replacement parts and labor are only warranted for any unused portion of the unit’s warranty.
