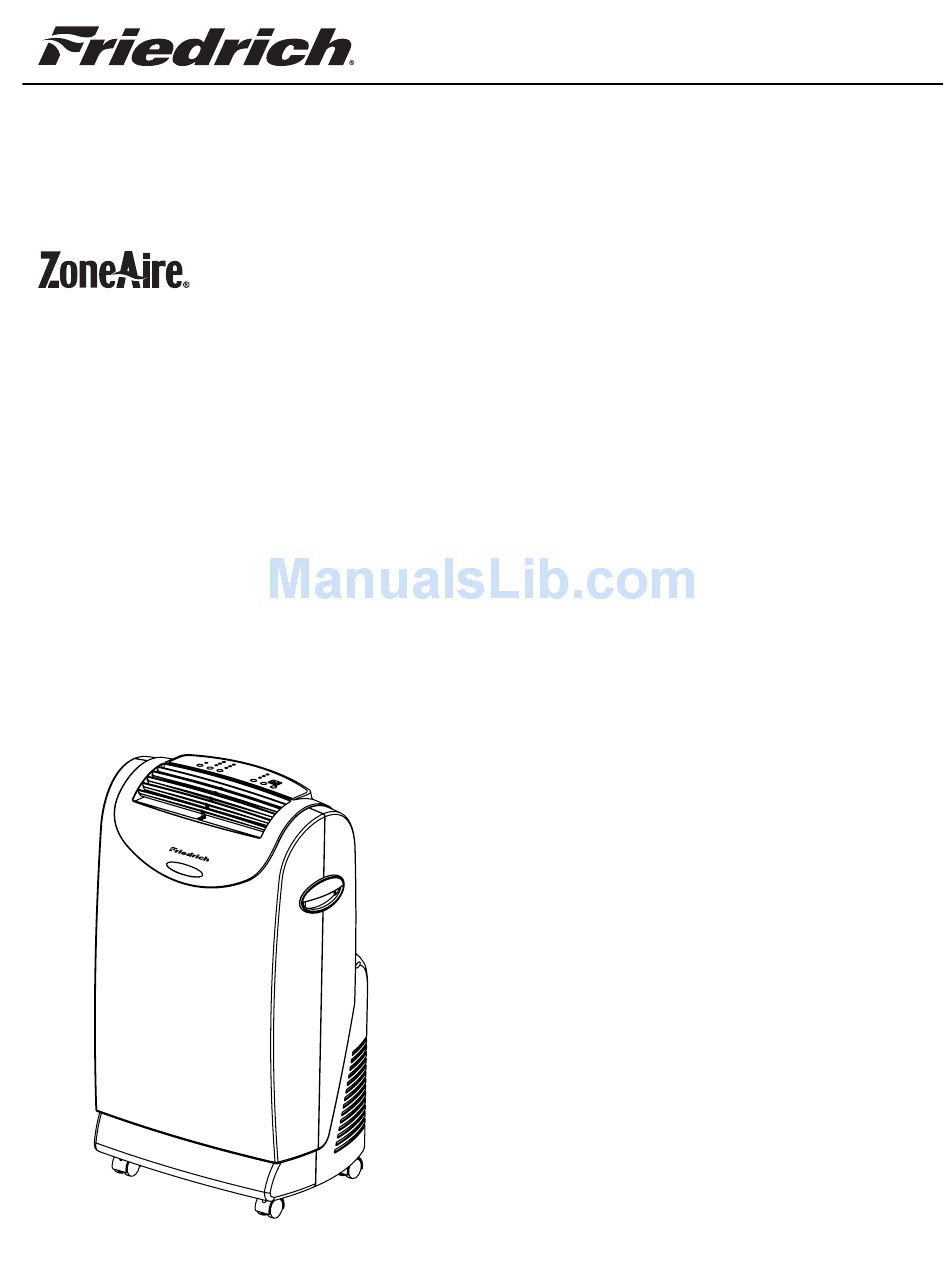

- Page 1 Installation & Operation Manual Portable Air Conditioner Models P09A and P12A PAC-IO (10-07)
-
Page 2: Table Of Contents
Thank you for purchasing the new Friedrich ZoneAire table Air Conditioner. We are confi dent that you will fi nd this unit a quiet and effi cient example of Friedrich reliability. This Installation and Operation Manual has been designed to insure maximum satisfaction in the performance of your unit. -
Page 3: Unit Identifi Cation
Unit Identification and Function Control panel Air outlet Signal receptor Handle Caster Air outlet hose Air fi lter Air intake hose 1/2" water outlet drain Power supply cord... -
Page 4: Cooling Operation
ON/ OFF button, the unit begins to run. LCDI power cord information All Friedrich portable air conditioners are shipped from the factory with a Leakage Current Detection Interrupter (LCDI) equipped power cord. The LCDI device meets the UL and NEC requirements for cord connected air conditioners effec- tive August 2004. -
Page 5: Remote Control Operation
Remote Control Identification and Function Time/Temperature Set Control Used for adjusting the timer and temperature The default display on control panel is room temperature. When the " " or the " " button is pressed in cool mode, the set temperature is displayed and may be adjusted. -
Page 6: Window Installation
Window installation Window adapter kit An installation parts kit is packed with your unit in a separate carton. Before you discard the packaging that your unit came in, please locate the carton that contains these parts and ensure that all parts are present. Window panel Attaches to window opening to allow air exchange for system air... -
Page 7: Hose And Window Kit
Installing the window adapter kit Note: The window adapter kit must be installed and con- nected for the air conditioner to work properly in Cool mode. The window adapter kit is not required when using the unit in Dehumidify or Fan modes. -
Page 8: Water Drainage Methods
Condensation Handling Your ZoneAire Portable Air Conditioner is designed to evapo- ® rate the condensation removed from the interior space through the exhaust hose. Under certain conditions it is possible that the unit will not evaporate 100% of the removed moisture. -
Page 9: Preparation For Storage
• When unplugging the unit, hold the power plug securely and pull it out carefully. • Never use an extension cord with this air conditioner. Other Warnings • Keep the unit one meter away from TV sets or radios to avoid the risk of electromagnetic interference. -
Page 10: Troubleshooting
Before seeking repair or service, please check the following fi rst: Trouble Is there power? Is it plugged in? Air conditioner does not operate Is the fuse or circuit breaker switch off? Is timer on? Is air inlet or outlet blocked? Is there any other heat source in the room? Cooling effi... -
Page 11: Warranty
PORTABLE AIR CONDITIONERS ANY PART: If any part supplied by FRIEDRICH fails because of a defect in workmanship or material within twelve months from date of original purchase, FRIEDRICH will repair the product at no charge, provided the product is transported to a Friedrich Authorized Service Center for repair. - Page 12 Friedrich Air Conditioning Co. Post Office Box 1540 • San Antonio, Texas 78295-1540 4200 N. Pan Am Expressway • San Antonio, Texas 78218-5212 (210) 357-4400 • FAX (210) 357-4480 www.friedrich.com PAC-IO (10-07)
