ATEN ALTUSEN KM0216 User Manual

ATEN ALTUSEN KM0216 User Manual

Matrix kvm switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

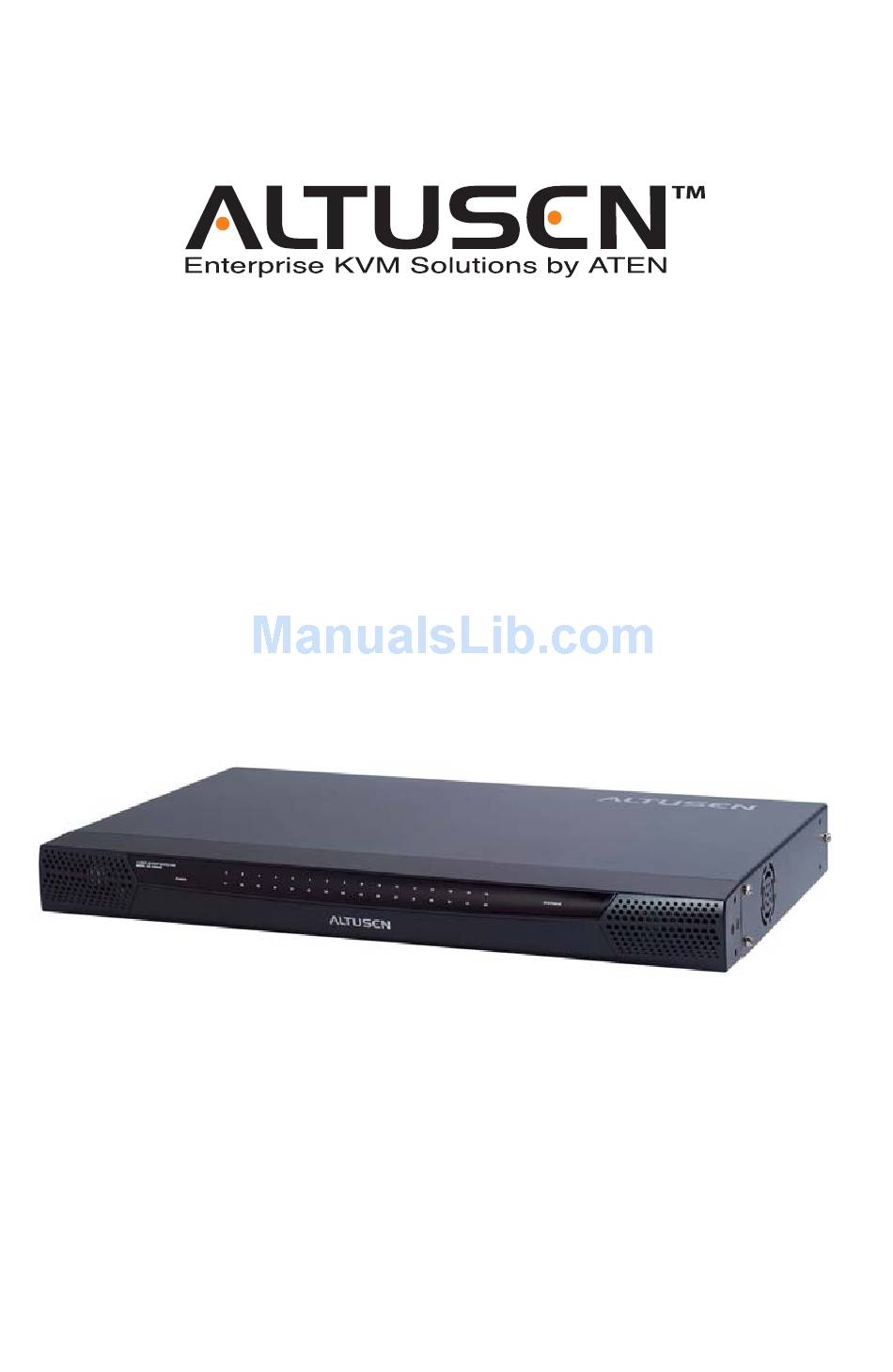

Matrix KVM Switch™
KM0216 / KM0432
User Manual
www.aten.com

Advertisement

Table of Contents
loading

Related Manuals for ATEN ALTUSEN KM0216

Summary of Contents for ATEN ALTUSEN KM0216

  • Page 1 Matrix KVM Switch™ KM0216 / KM0432 User Manual www.aten.com...

  • Page 2: Fcc Information

    KM0216 / KM0432 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: User Information

    KM0216 / KM0432 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America ATEN TECH http://www.aten-usa.com/product_registration ATEN NJ http://support.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959...

  • Page 4: Package Contents

    Copyright © 2006 ATEN® International Co., Ltd. Manual Part No. PAPE-0213-3AXG Printing Date:4/2010 Altusen and the Altusen logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 5: Table Of Contents

    KM0216 / KM0432 User Manual Contents FCC Information ..........ii SJ/T 11364-2006.
  • Page 6 KM0216 / KM0432 User Manual Powering Off and Restarting ....... . 29 Port Selection .
  • Page 7 KM0216 / KM0432 User Manual Chapter 6. The Firmware Upgrade Utility Introduction ..........57 Before You Begin .

  • Page 8: About This Manual

    KM0216 / KM0432 User Manual About This Manual This User Manual is provided to help you get the most from your KM0216 / KM0432 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 9: Conventions

    For information about all ALTUSEN products and how they can help you connect without limits, visit ALTUSEN on the Web or contact an ALTUSEN Authorized Reseller. Visit ALTUSEN on the Web for a list of locations and telephone numbers: International http://www.aten.com North America ATEN TECH http://www.aten-usa.com ATEN NJ http://www.aten.com...
  • Page 10 KM0216 / KM0432 User Manual This Page Intentionally Left Blank...

  • Page 11: Chapter 1. Introduction

    Chapter 1 Introduction Overview The KM0216 / KM0432 Matrix KVM Switch gives IT administrators in large corporations advanced control of multiple servers. Operators working at up to two (KM0216) or four (KM0432) consoles (keyboard, mouse, and monitor) can simultaneously and independently take direct control of up to 16 (KM0216) or 32 (KM0432) computers.

  • Page 12: Features

    KM0216 / KM0432 User Manual Features Two or four consoles independently and simultaneously control up to 16 or 32 directly connected computers Daisy-chain up to 7 additional units Cascade up to 16 or 32 compatible KVM switches from each station Up to 16 or 32 consoles control all of the computers on a daisy-chained/ cascaded installation Compact design –...

  • Page 13: Requirements

    Chapter 1. Introduction Requirements Console The following hardware components are required for each console: A VGA, SVGA, or MultiSync monitor capable of displaying the highest resolution provided by any computer in the installation Keyboard and mouse (PS/2 or USB) Console modules are required to connect consoles to the KM0216 / KM0432. They provide flexibility for your installation by allowing PS/2 and USB interfaces to be mixed and matched at the console side.

  • Page 14: Remote Computers

    KM0216 / KM0432 User Manual Remote Computers The following hardware components are required for each computer: A VGA, SVGA, or MultiSync video graphics card with an HDB-15 port; or, for legacy Sun systems, a Sun 13W3 video port PS/2 keyboard and mouse ports (6-pin Mini-DIN); or, at least one USB port;...

  • Page 15: Operating Systems

    Chapter 1. Introduction Operating Systems Supported operating systems are shown in the table, below: Version Windows 95 and higher Linux RedHat 6.0 and higher SuSE 8.2 and higher Mandriva (Mandrake) 9.0 and higher UNIX 4.3 and higher FreeBSD 3.51 and higher Solaris 8 and higher Novell Netware...

  • Page 16: Front View

    KM0216 / KM0432 User Manual Front View KM0216 KM0432...
  • Page 17 Chapter 1. Introduction Component Description Powed LED Lights (blue) to indicate that the unit is receiving power. Port LEDs A steady amber light indicates the KVM port is selected and the connected computer is powered on. A flashing amber light indicates the KVM port is selected and the KVM port is cascaded to a powered on KVM switch.

  • Page 18: Rear View

    KM0216 / KM0432 User Manual Rear View KM0216 KM043...
  • Page 19 Chapter 1. Introduction Component Description Power Socket The power cord to the AC source plugs in here. Power Switch This is a standard rocker switch that powers the KVM switch on and off. Daisy-chain Ports When daisy-chaining stations (see page 21), the daisy-chain cables plug in here.
  • Page 20 KM0216 / KM0432 User Manual This Page Intentionally Left Blank...

  • Page 21: Chapter 2. Hardware Setup

    Chapter 2 Hardware Setup Overview For convenience and flexibility that allows mixing the PS/2 and USB interfaces, the KM0216 / KM0432's design utilizes console modules that act as signal translation intermediaries between the consoles and the switch, and KVM adapter cables, that serve as intermediaries between the switch and the computers: KA9120 KA9170...

  • Page 22: Stacking And Rack Mounting

    KM0216 / KM0432 User Manual Stacking and Rack Mounting The KM0216 / KM0432 can be stacked on the desktop or rack mounted by different methods in 1U of rack space. The procedures for each method are described in the following sections. Note: 1.

  • Page 23: Rack Mounting - Front

    Chapter 2. Hardware Setup Rack Mounting – Front 1. Remove the two screws from the sides at the front of the unit. Phillips head hex M3 x 6 2. Use the M3 x 8 Phillips hex head screws supplied with the rack mounting kit to screw the rack mounting brackets into the sides at the front of the unit.
  • Page 24 KM0216 / KM0432 User Manual (Continued from previous page.) 3. Place the switch in the rack. Position it so that the holes in the mounting brackets line up with those in the rack. Secure the mounting brackets to the rack.

  • Page 25: Rack Mounting - Rear

    Chapter 2. Hardware Setup Rack Mounting – Rear 1. Remove the two screws from the sides at the rear of the unit. Phillips head hex M3 x 6 2. Use the M3 x 8 Phillips head hex screws supplied with the rack mounting kit to screw the rack mounting brackets into the sides at the rear of the unit.

  • Page 26: Grounding

    KM0216 / KM0432 User Manual (Continued from previous page.) 3. Place the switch in the rack. Position it so that the holes in the mounting brackets line up with those in the rack. Secure the mounting brackets to the rack. Grounding To prevent damage to your installation it is important that all devices are properly grounded.

  • Page 27: Single Stage Installation

    Chapter 2. Hardware Setup Single Stage Installation In a Single Stage installation, there are no additional KVM switches daisy- chained or cascaded down from the first station. To set up a single stage installation, refer to the diagram on page 18 (the numbers in the diagrams correspond to the numbered steps) and do the following: 1.
  • Page 28 KM0216 / KM0432 User Manual Single Stage Installation Diagrams This product supports several console module and KVM adapter cable types. See Requirements, page 3, and KVM Adapter Cable Installation Diagrams, Console Module page 20, for details.
  • Page 29 Chapter 2. Hardware Setup Console Installation Diagrams KA9222 CON SOLE KA9272 CON SOLE...

  • Page 30: Kvm Adapter Cable Installation Diagrams

    KM0216 / KM0432 User Manual KVM Adapter Cable Installation Diagrams KA9120 KA9130 KA9131 KA9140 SERIAL TERMINAL KA9170...

  • Page 31: Multilevel Installations

    Chapter 2. Hardware Setup Multilevel Installations The number of computers that can be added to your installation can be greatly expanded by performing a multilevel installation. The KM0216 / KM0432 supports three types of multilevel installation: Daisy-chained Cascaded Daisy-chained plus cascaded Overview Daisy-chaining refers to connecting two KVM switches via dedicated daisy- chain ports.
  • Page 32 KM0216 / KM0432 User Manual computers (up to 128 or 256) on the installation. The consoles belonging to each Slave switch only control the computers connected to the switch on the same level (see Computer Connection Tables, page 69, for tables showing the relation between the number of computers and the number of switches needed to control them.) To set up a daisy-chained installation, refer to the diagram on page 23 and do...
  • Page 33 Chapter 2. Hardware Setup Daisy-chained Installation Diagram Console Module Console Module This product supports several console module and KVM adapter cable types. See Requirements, page 3, and KVM Adapter Cable Installation Diagrams, page 20, for details.

  • Page 34: Cascading

    KM0216 / KM0432 User Manual Cascading Another way to expand your KVM installation is to cascade additional KVM switches from the KVM ports of the KM0216 / KM0432. Up to 16 (KM0216) or 32 (KM0432) additional KVM switches can be cascaded. As many as 128 (KM0216) or 256 (KM0432) computers can be controlled in a cascaded installation.
  • Page 35 Chapter 2. Hardware Setup 3. Use KVM cable sets (as described in the Cables section of the cascaded KVM switch's user manual) to connect any available KVM port on the Second Stage unit to the keyboard, video, and mouse ports of the computer you are installing.

  • Page 36: Daisy-Chaining Plus Cascading Expansion

    KM0216 / KM0432 User Manual Daisy-chaining Plus Cascading Expansion The expansion methods previously described for daisy-chain and cascade installations can be combined to produce extremely large KVM installations. Up to 8 daisy-chained KM0216 / KM0432 Matrix KVM Switches can cascade one compatible KVM switch from each port, allowing up to 1,024 or 2,048 computers and 32 consoles in a full installation (8 x 16 x 8 or 8 x 32 x 8).
  • Page 37 Chapter 2. Hardware Setup Daisy-chained/Cascaded Installation Diagram KM0432 KA9120 KH88 KM0432 KA9120 KH88 This product supports several console module and KVM adapter cable types. See Requirements, page 3, and KVM Adapter Cable Installation Diagrams, page 20, for details.

  • Page 38: Topology Considerations

    KM0216 / KM0432 User Manual Topology Considerations The use of RJ-45 port connectors, combined with Auto Signal Compensation (ASC), allow signals to travel up to 500 feet (150 meters) and still maintain reliability and high video resolution. This allows the KM0216 / KM0432 installation to take advantage of the internal Cat 5e and Cat 6 wiring built into most modern commercial buildings.

  • Page 39: Basic Operations

    Chapter 2. Hardware Setup Basic Operations Hot Plugging The KM0216 / KM0432 supports hot plugging – components can be removed and added back into the installation by unplugging their cables from the ports without the need to shut the unit down. In order for hot plugging to work properly, however, the procedures described below must be followed: Switching Station Positions On daisy-chained installations, you can switch station positions by simply...

  • Page 40: Port Id Numbering

    KM0216 / KM0432 User Manual Port ID Numbering Each KVM port on a KM0216 / KM0432 installation is assigned a unique Port ID. You can access and control any computer on the installation by specifying the Port ID of the port that it is connected to. Depending on where the computer is on the installation, its Port ID will have either two or three parts.

  • Page 41: User Management And Security

    Chapter 2. Hardware Setup User Management and Security The KM0216 / KM0432 permits the creation of 6 operator profiles when the switch is either on a stand alone installation or is the Master switch of a multilevel installation, as follows: 1 Super Administrator 1 Administrator 4 Users...
  • Page 42 KM0216 / KM0432 User Manual Operators (Super Administrator, Administrators, and Users) on the Master KM0216 / KM0432 can have User access rights to all ports on the Slave KVMs. Access rights are given by the Super Administrator or Administrator with the USER BUS AUTHORIZATION function (see page 45). The operators on Slave KVMs can only access computers on their segment.

  • Page 43: Chapter 3. Osd Operation

    Chapter 3 OSD Operation OSD Overview The KM0216 / KM0432 On Screen Display (OSD) provides a visual, menu- driven, mouse enabled, interface that offers quick and convenient computer access and control, as well as efficient system administration including user management (access rights, passwords, etc.). Each OSD menu option activates a function that configures and controls the operation of the KVM installation.

  • Page 44: Single Stage Installation

    KM0216 / KM0432 User Manual After you log in, a screen similar to the one below appears: Note: 1. The diagram depicts the Super Administrator's Main Screen. The User Main Screen does not show the F4 and F6 functions, since these are reserved for Administrators and can't be accessed by ordinary Users.

  • Page 45: Cascaded Installation

    Chapter 3. OSD Operation Cascaded Installation In a cascaded installation, the default port list will show every port, including those from cascaded switches connected to the KM0216 / KM0432. Any switches or computers added to, disconnected from or rearranged in the installation will be detected and the port list will be automatically updated.

  • Page 46: Daisy-Chain Installation

    KM0216 / KM0432 User Manual Daisy-chain Installation In a daisy-chain installation, the port list shows the ports of the currently selected station. Any computers added to, disconnected from or rearranged in the installation will be detected and the port list will be automatically updated. To list the ports of another daisy-chained switch in the installation, use the F1 GOTO function (see page 38) to select the other station.

  • Page 47: Osd Main Screen Headings

    Chapter 3. OSD Operation OSD Main Screen Headings Heading Explanation This field shows the Station Number that the currently selected port is connected to. The first number is the Station's position in the chain; the second number shows the total number of stations in the chain. This column lists the Port Numbers.

  • Page 48: Osd Functions

    KM0216 / KM0432 User Manual OSD Functions OSD functions configure and control the OSD. Examples of what can be accomplished with the OSD include: rapidly switching to any port; auto scanning specifically selected ports; limiting the list of ports you wish to view; designating a port as a Quick View Port;...

  • Page 49: F2 List

    Chapter 3. OSD Operation F2 LIST This function lets you broaden or narrow the scope of which ports the OSD lists on the Main Screen. Many of the OSD functions only operate on the computers that are currently displayed (listed) on the Main Screen. The submenu choices and their meanings are given in the table below: Choice Meaning...

  • Page 50: F3 Set

    KM0216 / KM0432 User Manual F3 SET This function allows each operator to set up his own working environment. A separate profile for each is stored by the OSD and is activated according to the Username that is provided during Login. To change a setting: 1.
  • Page 51 Chapter 3. OSD Operation (Continued from previous page.) Setting Function PORT ID Determines how long a Port ID displays on the monitor after a port DISPLAY – change has taken place. The choices are: User Defined which lets DURATION – you select the amount of time (from 1–255 sec.);...

  • Page 52: F4 Adm

    KM0216 / KM0432 User Manual F4 ADM F4 is a Super Administrator and Administrator only function. It allows them to configure and control the overall operation of the OSD. To change a setting Double Click it; or use the Up and Down Arrow Keys to move the highlight bar to it then press [Enter].
  • Page 53 Chapter 3. OSD Operation (Continued from previous page.) Setting Function EDIT PORT To help remember which computer is attached to a particular port, NAMES every port can be given a name. This function allows the Administrator to create, modify, or delete port names. To Edit a port name: 1.
  • Page 54 KM0216 / KM0432 User Manual (Continued from previous page.) Setting Function SET QUICK This function lets the Administrator select which Ports to include as VIEW PORTS Quick View ports. To select/deselect a port as a Quick View Port, click the port, or use the Navigation Keys to move the highlight bar to it, then press [Spacebar].
  • Page 55 Chapter 3. OSD Operation (Continued from previous page.) Setting Function This function allows the Super Administrator to authorize Operator AUTHORIZAT access to Stations on the installation other than the ones connected to the Station the Operator is logged in on. For each Operator, press the [Spacebar] to cycle through the choices: F (Full access), V (View Only), or blank (No access).

  • Page 56: F5 Skp

    KM0216 / KM0432 User Manual F5 SKP This function enables you to easily skip backward or forward – switching the console focus from the currently active KVM port to the previous or next available one. The selection of computers to be available for Skip Mode switching is made with the Scan/Skip Mode setting under the F3 SET function (see page 41).

  • Page 57: F7 Scan

    Chapter 3. OSD Operation F7 SCAN This function allows you to automatically switch among the available computers at regular intervals so that you can monitor their activity without having to take the trouble of switching manually. The selection of computers to be included for Auto Scanning is made with the Scan/Skip Mode setting under the F3 SET function (see SCAN/SKIP MODE, page 41).
  • Page 58 KM0216 / KM0432 User Manual This Page Intentionally Left Blank...

  • Page 59: Keyboard Port Operation

    Chapter 4 Keyboard Port Operation Hotkey Port Control Hotkey Port Control allows you to provide KVM focus to a particular computer directly from the keyboard. Note: Hotkeys work best in single stage and basic cascaded or daisy-chained installations. For installations that combine daisy-chaining and cascading, it is simpler, more convenient, and more efficient to use the OSD.

  • Page 60: Selecting The Active Port

    KM0216 / KM0432 User Manual When HKM is active: The Caps Lock, and Scroll Lock LEDs flash in succession to indicate so. They stop flashing and revert to normal status when you exit HKM. A Command Line appears at the bottom of the monitor screen. The command line prompt is the word Hotkey: in white text on a blue background.

  • Page 61: Auto Scanning

    Chapter 4. Keyboard Port Operation Auto Scanning Auto Scan switches among all the KVM ports that are accessible to the current Operator at regular intervals (see SCAN/SKIP MODE, page 41, for information regarding accessible ports). This function is convenient for automatically monitoring the activity of the computers on the installation.

  • Page 62: Invoking Auto Scan

    KM0216 / KM0432 User Manual Invoking Auto Scan To start Auto Scanning, key in the following Hotkey combination: 1. Invoke HKM (see page 49). 2. Press [A]. After you press [A], you automatically exit HKM, and enter Auto Scan Mode, and Auto Scanning begins. While you are in Auto Scan Mode, you can pause the scanning in order to keep the focus on a particular computer either by pressing [P] or with a Left Click of the mouse.

  • Page 63: Skip Mode

    Chapter 4. Keyboard Port Operation Skip Mode This feature allows you to switch between computers in order to monitor them manually. In contrast to Auto Scanning, which automatically switches after a fixed interval, Skip Mode lets you dwell on a particular port for as long or as little as you like.

  • Page 64: Hotkey Beeper Control

    KM0216 / KM0432 User Manual Hotkey Beeper Control The Beeper (see ACTIVATE BEEPER, page 43) can be Hotkey toggled On and Off. To toggle the Beeper, key in the following Hotkey combination: 1. Invoke HKM (see page 49). 2. Press [B] After you press [B], the Beeper toggles On or Off.

  • Page 65: Chapter 5. Keyboard Emulation

    Chapter 5 Keyboard Emulation Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt]...

  • Page 66: Sun Keyboard

    KM0216 / KM0432 User Manual Sun Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. PC Keyboard Sun Keyboard [Ctrl] [T]...

  • Page 67: The Firmware Upgrade Utility

    Chapter 6 The Firmware Upgrade Utility Introduction The purpose of the Windows-based Firmware Upgrade Utility (FWUpgrade.exe) is to provide an automated process for upgrading the KVM switch's firmware as easy as possible. The program comes as part of a Firmware Upgrade Package that is specific for each device. As new firmware revisions become available, new firmware upgrade packages are posted on our Website.
  • Page 68 KM0216 / KM0432 User Manual (Continued from previous page.) 4. Shut down all of the computers – but not the stations – on your KVM installation. 5. From the console of your KVM switch, bring up the OSD (see page 33) and select the F4 ADM function.

  • Page 69: Performing The Upgrade

    Chapter 6. The Firmware Upgrade Utility Performing the Upgrade Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file – either by double clicking the file icon, or by opening a command line and keying in the full path to it.
  • Page 70 KM0216 / KM0432 User Manual (Continued from previous page.) The Utility inspects your installation. The devices capable of being upgraded by the package are listed in the Device List panel. Note: 1. Although only one device type is shown in the list (KA9220, for example), all units of that type receive the upgrade.
  • Page 71 Chapter 6. The Firmware Upgrade Utility As the Upgrade proceeds, status messages appear in the Status Messages panel, and the progress toward completion is shown on the Progress bar. As each device update completes, its status is reported in the Status Messages panel.

  • Page 72: Upgrade Failed

    KM0216 / KM0432 User Manual Upgrade Failed If a member of a device group fails to complete the upgrade successfully: 1. Click Finish to close the Firmware Upgrade Utility. 2. Start the firmware upgrade procedure again (see page 59). 3. When the Device List is complete, click on the device group that the failed device belongs to in the Device List panel (see page 59).

  • Page 73: Appendix

    Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
  • Page 74 KM0216 / KM0432 User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).

  • Page 75: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 76: Technical Support

    Online Technical Support http://support.aten.com Support Troubleshooting http://www.aten.com Documentation Software Updates Telephone Support 886-2-8692-6959 North America Email Support ATEN TECH support@aten-usa.com ATEN NJ sales@aten.com Online Technical Support ATEN TECH http://www.aten-usa.com/support Support ATEN NJ http://support.aten.com Troubleshooting ATEN TECH http://www.aten-usa.com Documentation ATEN NJ http://www.aten.com...

  • Page 77: Specifications

    Appendix Specifications Function KM0216 KM0432 Computer Direct Connections Max. (via 8 level Daisy-chain) (via 8 level Daisy-chain) (via 2 level Cascade) (via 2 level Cascade) 1,024 2,048 (via 8 level Daisy-chain (via 8 level Daisy-chain + 2 level Cascade) + 2 level Cascade) Console Connections 2 Direct;...

  • Page 78: Osd Factory Default Settings

    KM0216 / KM0432 User Manual OSD Factory Default Settings The factory default settings are as follows: Setting Default OSD Hotkey [Scroll Lock] [Scroll Lock] Port ID Display Position Upper Left Corner Port ID Display Duration 3 Seconds Port ID Display Mode The Port Number plus the Port Name Scan Duration 5 Seconds...

  • Page 79: Computer Connection Tables

    Appendix Computer Connection Tables The following tables indicate the relationship between the number of KVM units and the number of computers that they control: KM0216 Daisy-chain KM0216s Computers 1–16 17–32 33–48 49–64 65–80 81–96 97–112 113–128 KM0216 Cascade to KH88 KVMs Computers KVMs...

  • Page 80: Km0432 Daisy-Chain

    KM0216 / KM0432 User Manual KM0432 Daisy-chain KM0432s Computers 1–32 33–64 65–96 97–128 129–160 161–192 193–224 225–256 KM0432 Cascade to KH88 KVMs Computers KVMs Computers KVMs Computers KVMs Computers 32–39 88–95 144–151 200–207 39–46 95–102 151–158 207–214 46–53 102–109 158–165 214–221 53–60 109–116...

  • Page 81: Clear Login Information

    Appendix Clear Login Information If you are unable to perform an Administrator login (because the Username and Password information has become corrupted, or you have forgotten it, for example), you can clear the login information with the following procedure: 1. Power off the Matrix KVM Switch and remove the power cord from the power socket.
  • Page 82 KM0216 / KM0432 User Manual KA9140 RS-232 Connector Pin Assignments The following table lists the pin assignments for the KA9140 D-sub 9-pin RS-232 connector. Description DTR (+10V) RTS (+10V)

  • Page 83: Troubleshooting

    Appendix Troubleshooting Problem Solution The operator can only There is only one display channel for all the ports on a access one port on a cascaded KVM switch. The previous operator's access cascaded KVM switch timeout expired (see SET ACCESS TIMEOUT, page 44), so and cannot switch to the port is released, but his logout timeout has not expired so any of the other ports.

  • Page 84: Sun Systems

    KM0216 / KM0432 User Manual Sun Systems Problem Solution Video display problems The display resolution should be set to 1024 x 768 @ with HDB-15 interface 60Hz. systems (e.g. Sun Blade Under Text Mode: 1000 servers). 1. Go to OK mode and issue the following commands: setenv output-device screen:r1024x768x60 reset-all Under XWindow:...

  • Page 85: Limited Warranty

    Appendix Limited Warranty ALTUSEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ALTUSEN's support department for repair or replacement of your unit. ALTUSEN will not issue a refund. Return requests can not be processed without the original proof of purchase.
  • Page 86 KM0216 / KM0432 User Manual...
  • Page 87 Index Expansion Cascading, 24 Activate Beeper, 43 Daisy-chaining, 21 ADM, 42 Daisy-chaining Plus Administrator functions, 42 Cascading, 26 Advanced Firmware Upgrade, 62 Auto Scanning, 47, 51 Invoking Auto Scan, 52 F1 GOTO, 38 Pausing Auto Scan, 52 F2 LIST, 39 Scan Duration, 41 F3 SET, 40 Setting the Scan Interval, 51...
  • Page 88 KM0216 / KM0432 User Manual Navigation, 37 Overview, 33 Installation Cascading, 24 Daisy-chaining, 21 Password, 42 Daisy-chaining Plus Pause, 47 Cascading, 26 Port Multilevel, 21 Names, 43 Single Stage, 17 Selection, 29 Invoking Hotkey Mode, 49 Port ID Display Duration, 41 Display Mode, 41 Keyboard Emulation Numbering, 30...
  • Page 89 Chapter . Password, 42 Switching Station Positions, 29 Quick View Ports, 44 System Requirements USERNAME, 42 Cables, 4 Setting the Auto Scan Interval, 51 SJ/T 11364-2006, ii Skip Mode, 41, 46, 53 Technical Support, 66 SKP, 46 Telephone support, iii Specifications, 67 Troubleshooting Stacking, 12...
