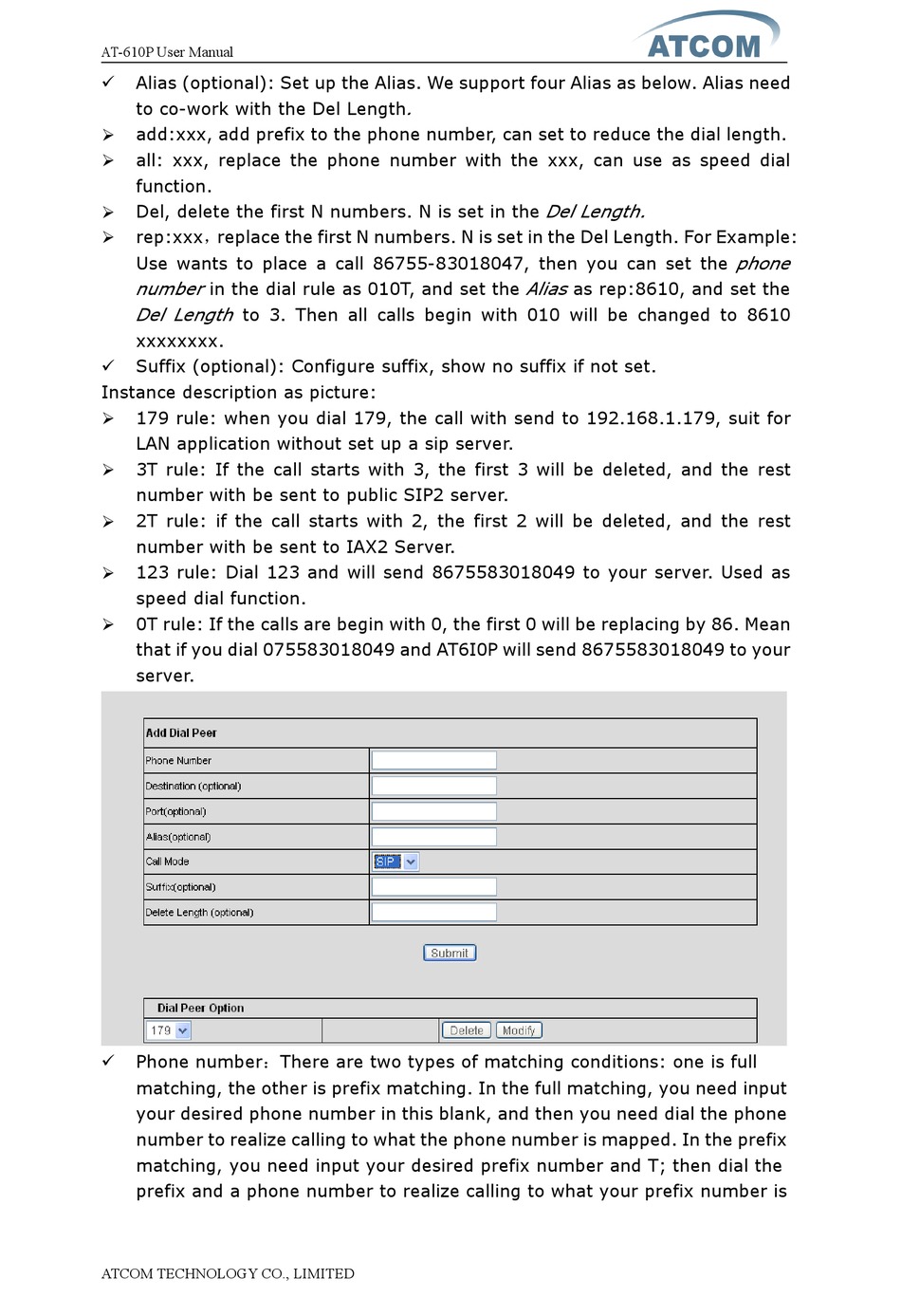

ATCOM AT-610P User Manual page 34

AT-610P User Manual
� Alias (optional): Set up the Alias. We support four Alias as below. Alias need
to co-work with the Del Length .
� add:xxx, add prefix to the phone number, can set to reduce the dial length.
� all: xxx, replace the phone number with the xxx, can use as speed dial
function.
� Del, delete the first N numbers. N is set in the Del Length.
� rep:xxx， replace the first N numbers. N is set in the Del Length. For Example:
Use wants to place a call 86755-83018047, then you can set the phone
number in the dial rule as 010T, and set the Alias as rep:8610, and set the
Del Length to 3. Then all calls begin with 010 will be changed to 8610
xxxxxxxx.
� Suffix (optional): Configure suffix, show no suffix if not set.
Instance description as picture:
� 179 rule: when you dial 179, the call with send to 192.168.1.179, suit for
LAN application without set up a sip server.
� 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest
number with be sent to public SIP2 server.
� 2T rule: if the call starts with 2, the first 2 will be deleted, and the rest
number with be sent to IAX2 Server.
� 123 rule: Dial 123 and will send 8675583018049 to your server. Used as
speed dial function.
� 0T rule: If the calls are begin with 0, the first 0 will be replacing by 86. Mean
that if you dial 075583018049 and AT6I0P will send 8675583018049 to your
server.
�
Phone number：There are two types of matching conditions: one is full
matching, the other is prefix matching. In the full matching, you need input
your desired phone number in this blank, and then you need dial the phone
number to realize calling to what the phone number is mapped. In the prefix
matching, you need input your desired prefix number and T; then dial the
prefix and a phone number to realize calling to what your prefix number is
