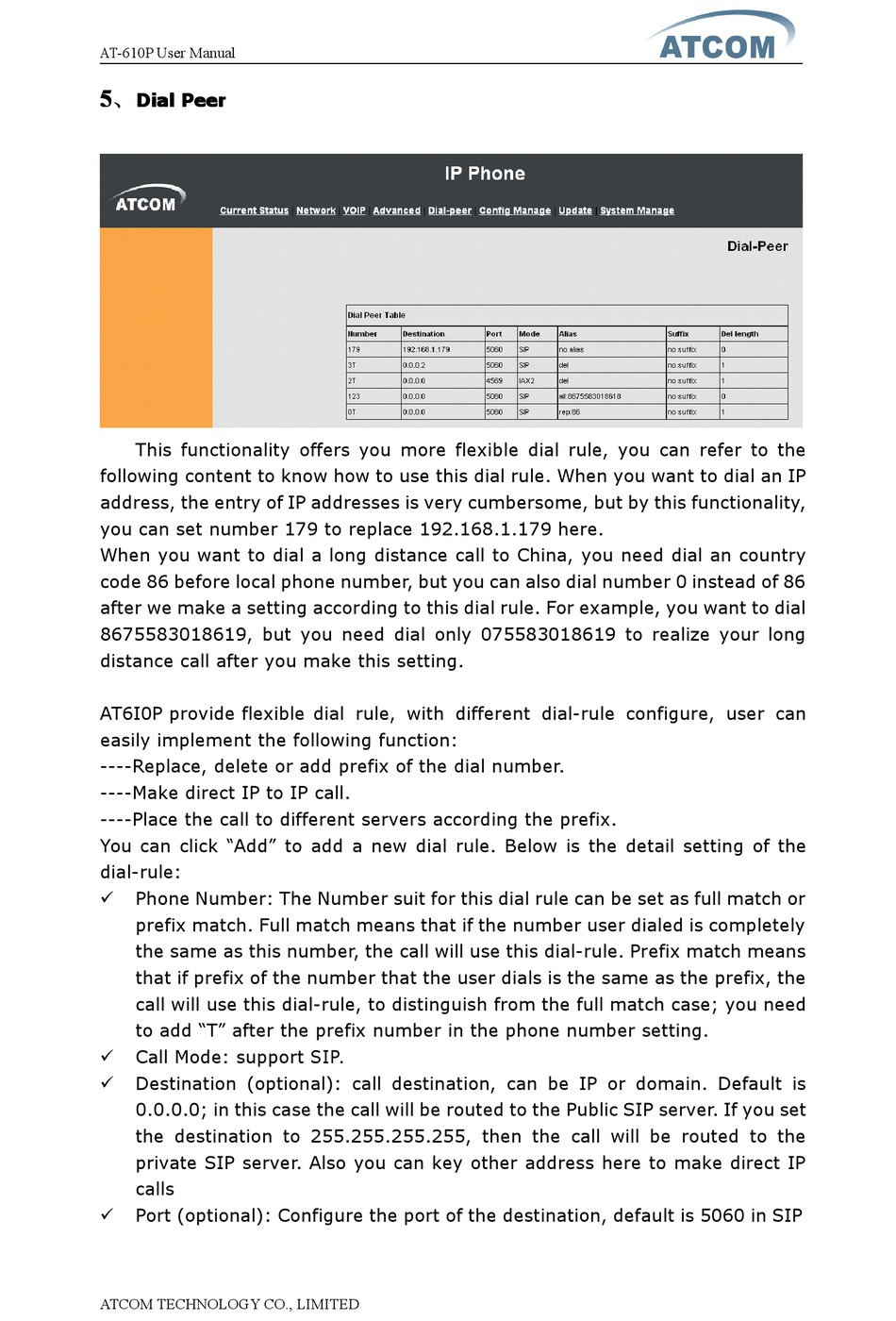

ATCOM AT-610P User Manual page 33

AT-610P User Manual
5 5 5 5 、
Dial Dial Dial Dial Peer Peer Peer Peer
This functionality offers you more flexible dial rule, you can refer to the
following content to know how to use this dial rule. When you want to dial an IP
address, the entry of IP addresses is very cumbersome, but by this functionality,
you can set number 179 to replace 192.168.1.179 here.
When you want to dial a long distance call to China, you need dial an country
code 86 before local phone number, but you can also dial number 0 instead of 86
after we make a setting according to this dial rule. For example, you want to dial
8675583018619, but you need dial only 075583018619 to realize your long
distance call after you make this setting.
AT6I0P provide flexible dial rule, with different dial-rule configure, user can
easily implement the following function:
----Replace, delete or add prefix of the dial number.
----Make direct IP to IP call.
----Place the call to different servers according the prefix.
You can click "Add" to add a new dial rule. Below is the detail setting of the
dial-rule:
� Phone Number: The Number suit for this dial rule can be set as full match or
prefix match. Full match means that if the number user dialed is completely
the same as this number, the call will use this dial-rule. Prefix match means
that if prefix of the number that the user dials is the same as the prefix, the
call will use this dial-rule, to distinguish from the full match case; you need
to add "T" after the prefix number in the phone number setting.
� Call Mode: support SIP.
� Destination (optional): call destination, can be IP or domain. Default is
0.0.0.0; in this case the call will be routed to the Public SIP server. If you set
the destination to 255.255.255.255, then the call will be routed to the
private SIP server. Also you can key other address here to make direct IP
calls
� Port (optional): Configure the port of the destination, default is 5060 in SIP
ATCOM TECHNOLOGY CO., LIMITED
