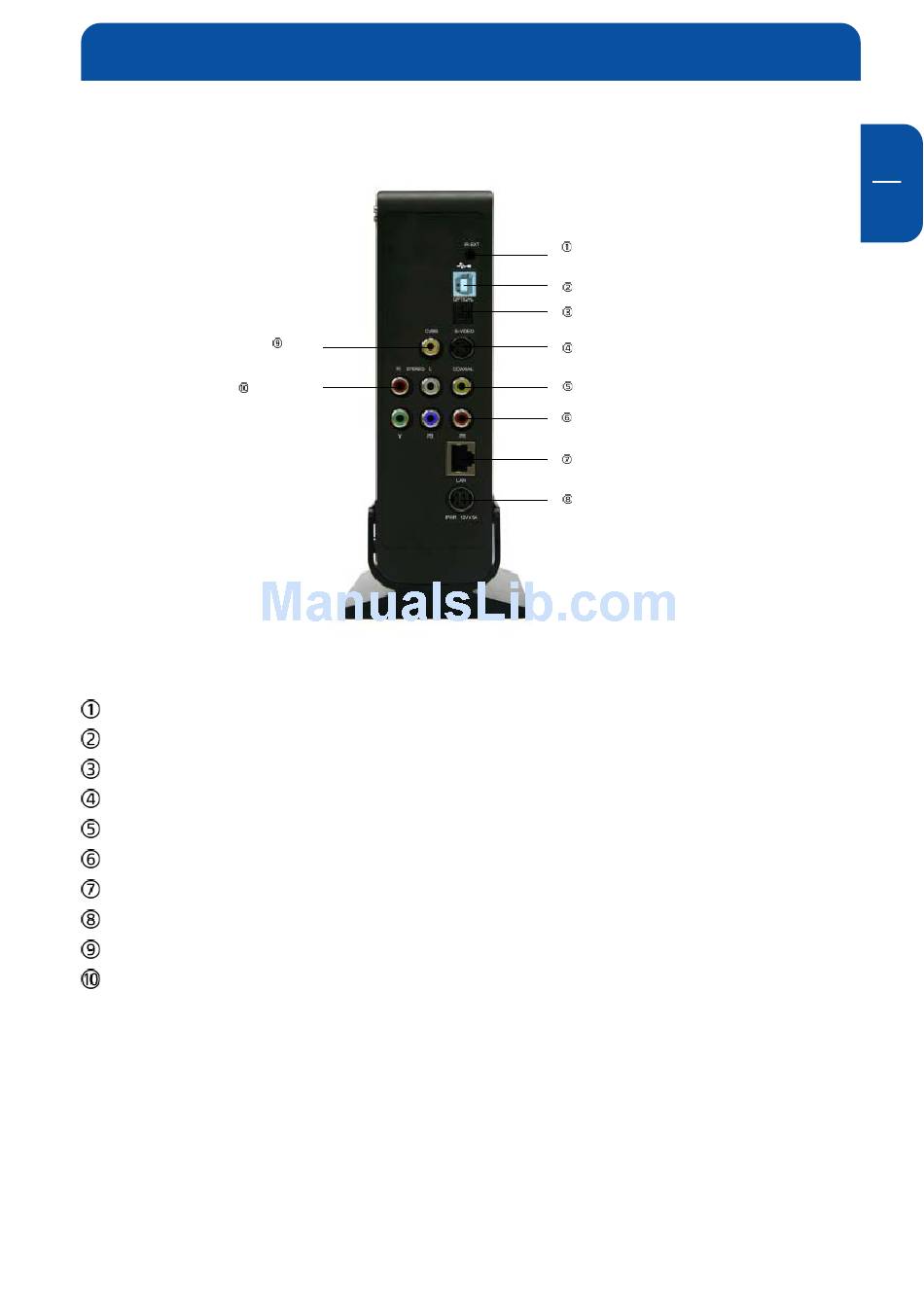

2. BACK VIEW
Stereo L - R
IR-EXT
USB
OPTICAL
S-VIDEO
COAXIAL
Y, PB, PR
LAN
PWR
CVBS
STEREO L-R
CVBS
Connect external remote control IR receiver
Connect USB cable
Connect Optical cable for 5.1 ch. digital audio output
Connect s-video for video output
Connect coaxial cable for 5.1 ch. digital audio output
Connect component Y, Pb, Pr cable for video output
Connect lan cable for networking
Connect power cable
Connect composite cable for video output
Connect stereo cable for audio output
Getting Started
IR-EXT
USB
Optical
S-Video
Coaxial
Y. PB. PR
LAN
PWR
