Page 1: Media Player

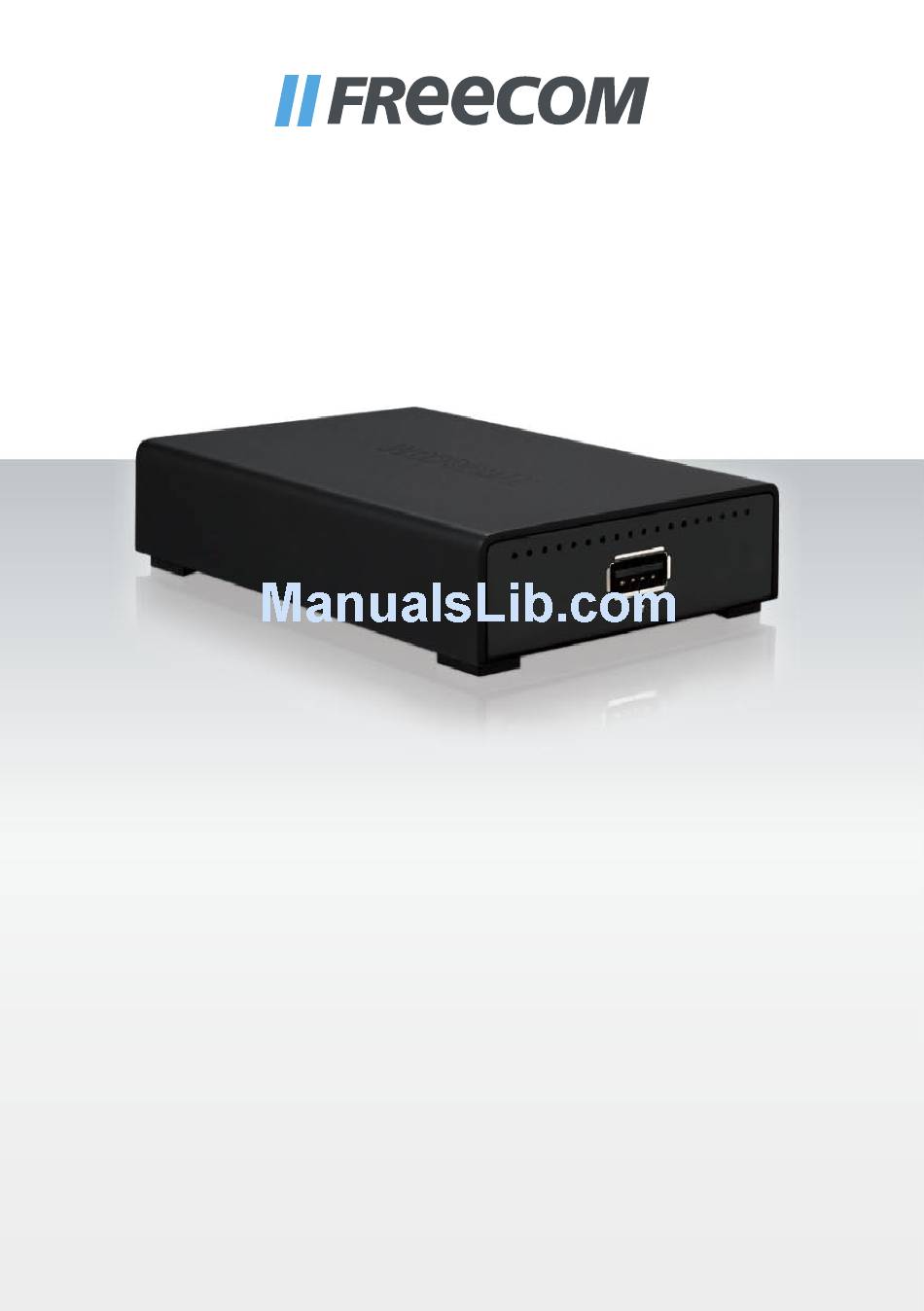

MANUAL MEDIA PLAYER XS HDMI EXTERNAL MULTIMEDIA ADAPTER USB HOST Rev. 912... - Page 2 -whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use this Freecom product, even if Freecom has been advised of the pos- sibility of such damages.
-
Page 3: Table Of Contents
4.1 Main menu ........................Page 11 4.1.1 All Files ........................Page 12 4.1.2 Photo ........................Page 13 4.1.3 Music ........................Page 15 4.1.4 Video ........................Page 16 4.1.5 Setup ........................Page 18 Chapter 5: Q & A ............................Page 24 © 2009 Freecom Technologies... -
Page 4: Function
12.1W Important note: The Freecom device has not been developed or conceived for use with disregard to copyrights or other rights to intellectual property. The Freecom device can only be used with material which is the legal property of the user or where the user has a legal licence for this purpose so that such use must be permitted because of these property rights or licenses. -
Page 5: Precautionary Measures
No naked flame sources, such as lighted candles should be placed on the device. • Do not drop the Freecom MediaPlayer XS HDMI or expose it to other kinds of sud- den mechanical shocks as this may result in data loss and damage to the Freecom MediaPlayer XS HDMI. -
Page 6: Mediaplayer Xs Hdmi Connectors
Freecom MediaPlayer XS HDMI 1. MediaPlayer XS HDMI connectors Front view 1. USB connector for external USB Device (USB stick, USB hard drive, MP3 player etc.) Rear view 2. External remote control receiver (infrared eye) 3. AV Audio and Video output port (to connect to the TV) 4. -
Page 7: How To Connect The Mediaplayer Xs Hdmi
How to connect the MediaPlayer XS HDMI Chapter : How to connect the MediaPlayer XS HDMI IR cable to MP XS HDMI 1. Connect the remote control receiver cable to the corresponding input interface on your MediaPlayer XS HDMI. Fix IR cable to TV 2. - Page 8 MediaPlayer XS HDMI. Now you can enjoy your multimedia fi les (Photo, Music, Video) from your USB device directly on your TV. For detailed instructions how to use the Freecom MediaPlayer XS HDMI please see chapter 3-4. If no image appears, please press “OUTPUT” key on remote control till the image ap-...
-
Page 9: Remote Control Function
Remote control function Chapter : Remote control function Button Definition ALL FILES Opens the file list with all media files (Photo, Music, Video). PHOTO Opens file list with all Photo files. MUSIC Opens file list with all Music files. VIDEO Opens file list with all Video files. -
Page 10: Important Notice
Freecom MediaPlayer XS HDMI Skip to previous file Skip to previous file Playback / Pause Playback / Pause Skip to next file Skip to next file SETUP Opens "Setup" menu HOME Opens main menu Up, Down Navigation Key: Up, Down ;... -
Page 11: User Operation Guide
User operation guide Chapter 4: User operation guide After successful hardware installation, you can start using the Freecom MediaPlayer XS HDMI by following the menu on your TV screen. 4.1 Main Menu Connect a USB Stick or a USB hard disk to the USB slot. The Main Menu will show 4 func-... -
Page 12: All Files
Freecom MediaPlayer XS HDMI Note3: Don’t arbitrarily remove the USB Stick or a USB hard disk when it is playing. This can damage your device. In case the device can’t detect any files, the message “NO MEDIA DETECTED” (see Figure 3). -
Page 13: Photo
User operation guide 4.1. Photo Photo Playback To playback photos on your TV, press either the "All files" or the "Photo" button (Figure 5) on the remote control. "All files" will display all files in the file list, when the "Photo" button is pressed, only photo files will be shown. - Page 14 Freecom MediaPlayer XS HDMI Photo File Information Enter the file list (Figure 7) and press INFO on the remote control. The properties of the photo will show on the top of the screen (size, resolution, creation date). (see Figure 8)
-
Page 15: Music
User operation guide Pause/ Play: Pause: Press , MP3 background music will not stop while the photo playback stops Play: Press a second time, music and photo will both be played again. 4.1. Music To playback music on your TV, press either the "All files" or the "Music" button on the remote control. -
Page 16: Video
Freecom MediaPlayer XS HDMI Adjust Volume to turn volume up or down, or press MUTE to mute audio dur- Press ing playback. Fast Forward or Fast Rewind Press for Fast Forward or press to Fast Rewind. Previous/next song When listening to MP3 music, press... - Page 17 Important! If your video cannot be played, it might be in an incompatible video format for the Freecom MediaPlayer XS HDMI. In this case, convert your video file to a compatible format.
-
Page 18: Setup
Freecom MediaPlayer XS HDMI 4.1.5 Setup Select "SETUP" on the remote control to open the Freecom MediaPlayer XS HDMI Setup menu. General Setup (see Figure 14) Figure 14 OSD Language You can choose between the following languages for the On-Screen Display (OSD): 1. - Page 19 User operation guide Slide Show Mode Choose here to show pictures as slide show („Automatic”) or to change manually to the next picture (“Manually”). 1. Automatic Figure 16 2. Manually Figure 17...
- Page 20 Freecom MediaPlayer XS HDMI Captions (see Figure 18) Select here to turn captions on or off: 1. ON 2. OFF Figure 18 Screen saver (see Figure 19) Turn screen saver on or off in this menu: 1. ON 2. OFF...
- Page 21 User operation guide Video Setup (see Figure 21) Use the Video Setup to configure video output and display options. Figure 21 Video Output (see Figure 22) Choose the video output according to your needs between 1. HDMI 2. VIDEO Figure 22 TV Display (see Figure 23) Choose TV Display between the following options: 1.
- Page 22 Freecom MediaPlayer XS HDMI TV Type (see Figure 24) Choose TV Type between 1. Multi System 2. NTSC 3. PAL Figure 24 Resolution (see Figure 25) Select your required resolution: 1. SD Interlace 2. SD Progressive 3. 720p 4. 1080i...
- Page 23 User operation guide Preferences (see Figure 27) Figure 27 Defaults (see Figure 28) Figure 28 Reset Choose this function to reset all settings to factory settings (original settings). MAIN PAGE (see Figure 29) Press MAIN PAGE to return to previous page of the Setup Menu (see Figure 29): Figure 29 Press EXIT SETUP to quit the Setup Menu (see Figure 14).
-
Page 24: Q & A
TV set. If the video line is properly connected, but still no im- age appears on TV, contact the Freecom Support Center. No Sound Video line is not connected well. Check all connectors and make sure that the video line is connected to the TV set. -
Page 25: Technical Specification
Supported TV Format: PAL, NTSC • Firmware: upgradable Package: Freecom MediaPlayer XS HDMI, power adapter, SCART adapter, AV line, HDMI line, remote control, remote control receiver, manual on CD, warranty, Quick Install Guide Power: DC 5V adapter, AC 100-240V input, Max output voltage: 5.5V, Max output power: 12.1W... - Page 26 Be sure to exclude all parts not covered by this guarantee prior to returning the product to Freecom. Freecom is not liable for any loss or damage to these items. If during the repair of the product the contents of the hard drive are altered, deleted or in any way modified, Freecom is not liable whatsoever.
