Chapter 3: Use as Multimedia Player

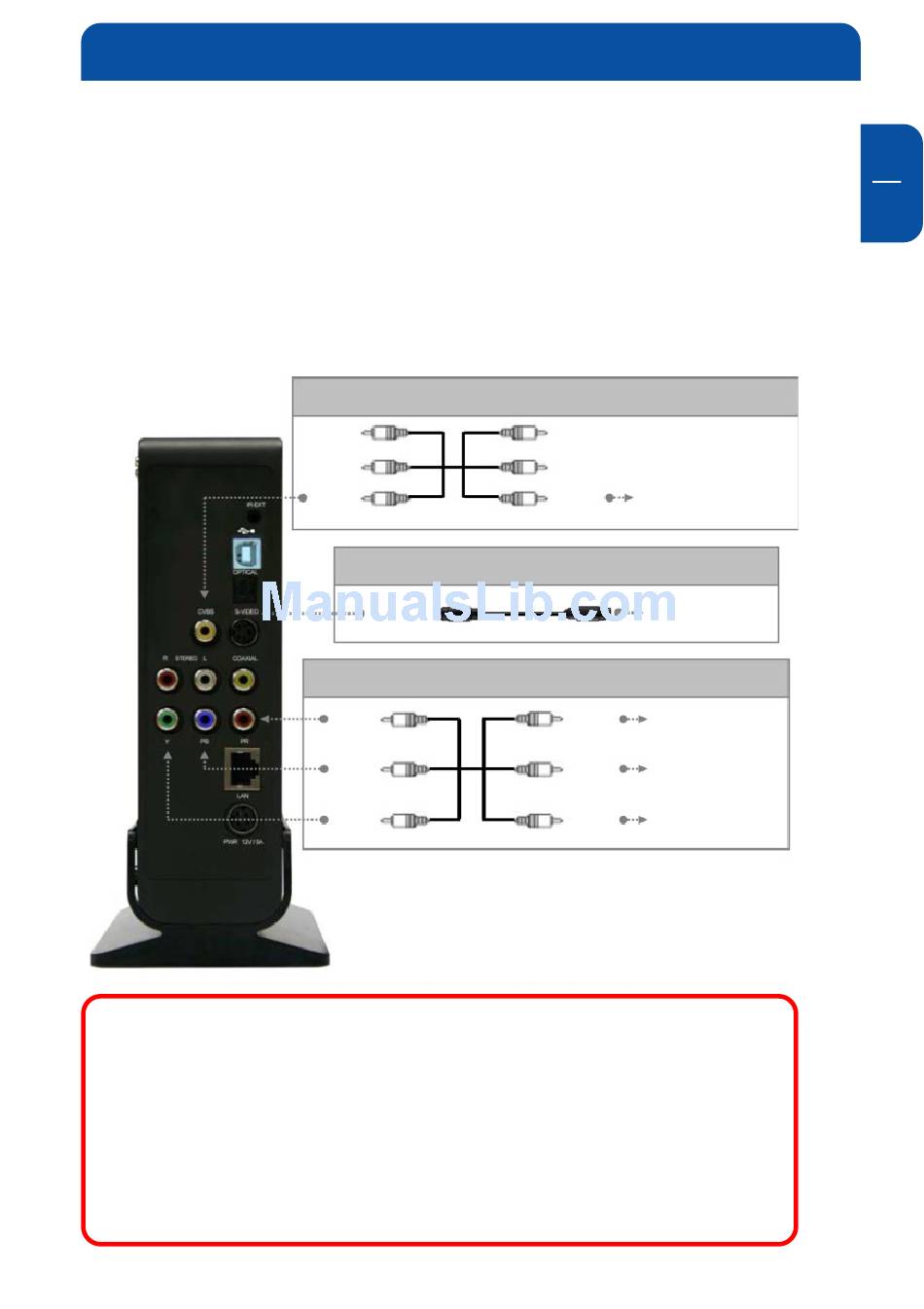

3.1 Connect to External AV Device
3.1.1 Connect Video Cable
The player supports 3 types of video output; "Composite, S-video and Compo-
nent". Use the video connection that your TV supports. Normally, TV supports
composite video connection; a composite video cable is supplied with the
player.
When you do not see a normal screen after connecting the video
cable, check the following:
1. "TV "– Switch to Video Input Mode: Turn on TV, and switch to
video input mode same as video connection. See TV user
manual.
2. "player" – Switch to Video Output Mode: Press [VIDEO] button
repeatedly. Whenever press [VIDEO], video output signal is
changed.
1. Composite: Yellow RCA cable. (Supplied)
Yellow
(CVBS)
2. S-Video: Black rounded cable (not supplied)
S-VIDEO
3. Component: Y, Pb, Pr component cable (not supplied)
Red
(Pr)
Blue
(Pb)
Green
(Y)

Use as Multimedia Player

Yellow Connect to Composite
(CVBS) (CVBS) Jack of TV
Connect S-Video Jack
of TV
Red
Connect Pr Jack of TV
(Pr)
Blue
Connect Pb Jack of TV
(Pb)
Green
Connect Y Jack of TV
(Y)
