User Manual
EnviroNET™ 2100 Series
Ethernet Extender
Quick Start Guide
Important
intended nor approved for use in a residential environment.
Important
for connection to customer premise equipment.
Part Number: 07MEN2100-QS, Rev. B
Revised: February 29, 2012
—This is a Class A device and is intended for use in an industrial environment. It is not
—This device is NOT intended nor approved for connection to the PSTN. It is intended only
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Advertisement
Table of Contents
Related Manuals for Patton electronics EnviroNET 2100 Series
Summary of Contents for Patton electronics EnviroNET 2100 Series
-
Page 1: Quick Start Guide

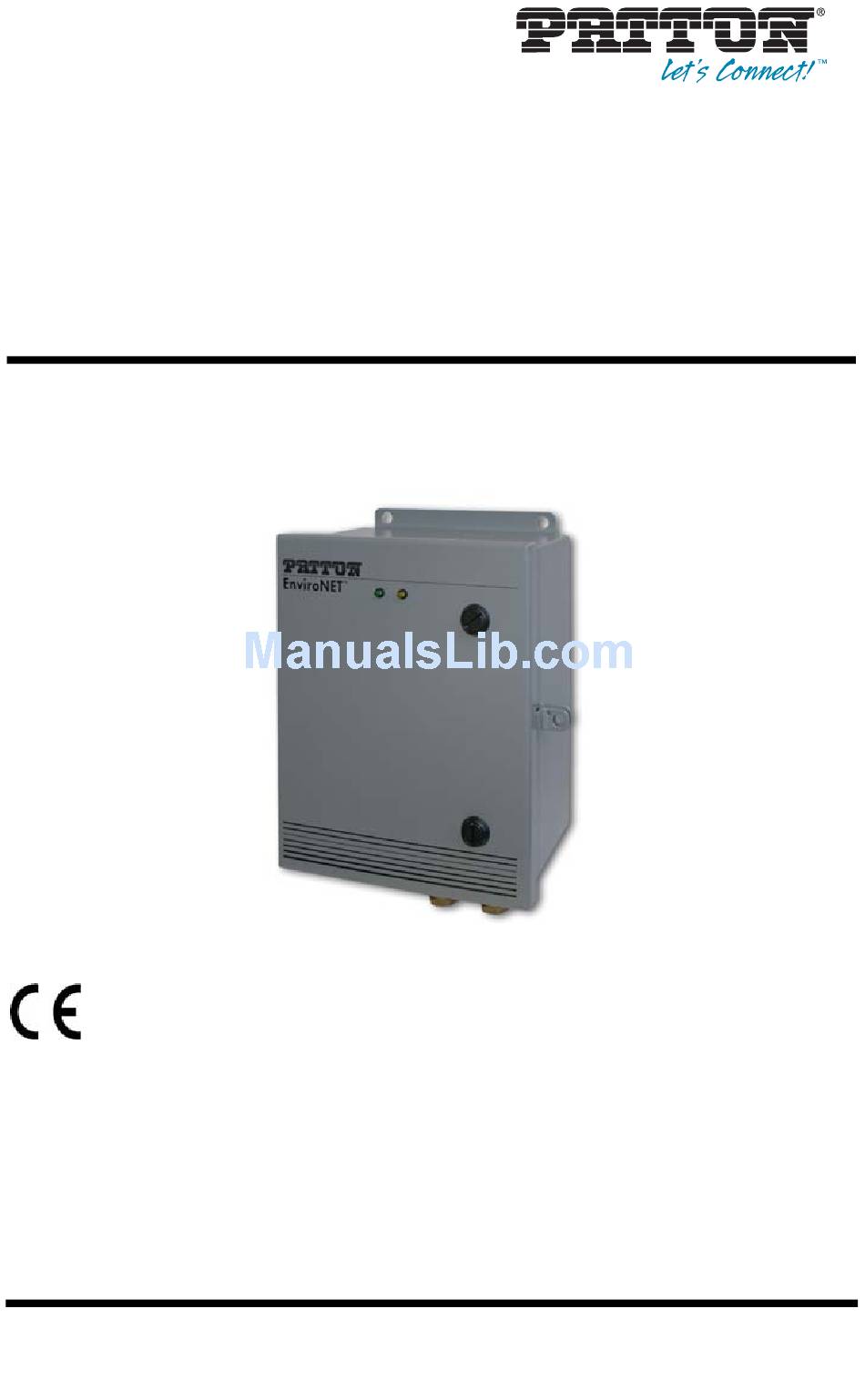

EnviroNET™ 2100 Series Ethernet Extender Quick Start Guide Important —This is a Class A device and is intended for use in an industrial environment. It is not intended nor approved for use in a residential environment. Important —This device is NOT intended nor approved for connection to the PSTN. It is intended only for connection to customer premise equipment. -
Page 2: Before You Begin
1.0 Before you begin 1.1 What you will need The following components are included: EnviroNET unit, including PC board, power supply, and interface board – You will need the following components (not included): Flat-tip (large-bladed) screwdriver – Crescent® (adjustable) wrench –... -
Page 3: Wiring The Power
2.0 Wiring the power 2.1 Running the power cable through the gland To run the power cable through the gland: Locate the gland that the power cable should be run through. You may unscrew the gland to allow more flexibility when threading the power cable wires. To unscrew the gland, either by hand or with a Crescent®... -
Page 4: Running The Twisted Pair Wires Through The Gland
3.0 Wiring the terminal block 3.1 Running the twisted pair wires through the gland To run the twsited pair wires through the gland: Locate the glands that the twisted pair wires should run through. You may unscrew the gland to allow more flexibility when threading the wires. To unscrew the gland, either by hand or with a Crescent®... -
Page 5: Configuring The Environet
4.0 Configuring the EnviroNET You can configure the EnviroNET via the dip switches on the PC board (except for the 2156 and 2157 models, which require no user configuration). Dip Switch POWER ONE BLP-30 1 2 3 4 1 2 3 4 5 6 7 8 5 6 7 8 4.1 EnviroNET Model 2172... -
Page 6: Switches 2 And 3: Data Rate
Switches 2 and 3: Data Rate Refer to for the symmetric line rate settings. (Switch 1 must be in the “On” position). table 4 Refer to for the asymmetric line rate settings. (Switch 1 must be in the “Off” position). table 5 Symmetric CopperLink Line Rates Selection Chart Table 4. -
Page 7: Switch 8: Remote Configuration
Switch 8: Remote Configuration To enable or disable Remote Configuration, push toggle switch eight (8) up or down. Refer to for settings. table 8 Remote Configuration Table 8. S2-8 Description Remote Configuration Enabled Remote Configuration Disabled The S2-8 switch applies to the remote unit only. If enabled, the remote unit will follow the dip switch Note configuration of the local unit. -
Page 8: Switches 2, 3, And 4: Data Rate
Ethernet Auto Sense Selection Chart Table 10. S1-1 Setting Limited Auto Negotiation (100 Mbps Half Duplex) 10 Mbps Full or Half Duplex) Switches 2, 3, and 4: Data Rate Refer to for the symmetric line rate settings. (Switch 1 must be in the “On” position). table 11 Refer to for the asymmetric line rate settings.(Switch 1 must be in the “Off”... -
Page 9: Mounting The Environet
The Temperature Control Indicator light will be on when the heater or fan turns on to control temperature. EH models do not have a fan or heater, therefore they do not have LEDs. Note 7.0 Additional Information Refer to the EnviroNET 2100 Series User Manual available online at www.patton.com/manuals/ for detailed information about: EN2100.pdf Installing, configuring, operating, and troubleshooting. -
Page 10: Customer And Technical Support
A.0 Customer and Technical Support Online support: www.patton.com E-mail support: support@patton.com—answered within 1 business day Telephone support: Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST (1300 to • 2200 UTC/GMT) Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm CET (0900 to 1800 •... -
Page 11: Radio And Tv Interference (Fcc Part 15)
B.2 Radio and TV Interference (FCC Part 15) This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in strict accordance with the manufacturer's instructions—may cause interference to radio and television recep- tion. This equipment has been tested and found to comply with the limits for a Class A computing device in accor- dance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection from such interference in a commercial installation. -
Page 12: Copyright Statement
Warranty, Trademark, & Compliance Information For warranty, trademark and compliance information, refer to the EnviroNET 2100 Series User Manual available online at www.patton.com/manuals/EN2100.pdf. • This device is to be installed only by qualified service personnel. It contains no user serviceable parts, and shall be returned to Patton Electronics for repairs, or repaired by qualified service per- sonnel.
