Patton electronics 2173 User Manual

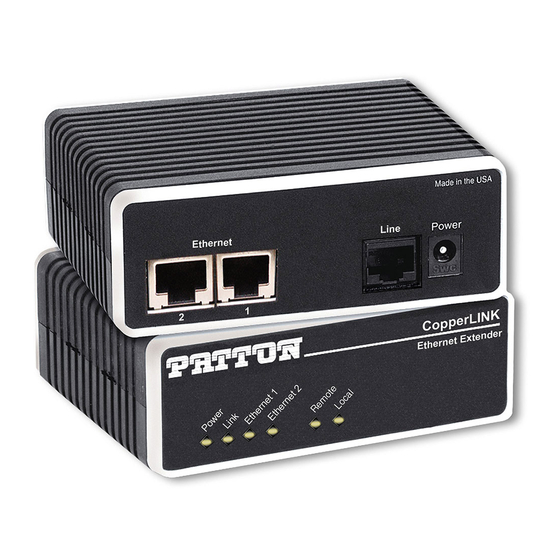

Copperlink high speed ethernet extender
Hide thumbs Also See for 2173:
Table of Contents

Advertisement

Quick Links

Download this manual
This is a Class A device and is intended for use in a
light industrial (commercial) environment only. It
is not intended nor approved for use in a heavy
industrial or residential environment.
Part# 07M2173-UM
Rev. A
Revised 4/8/10
An ISO-9001Certified
Company
USER
MANUAL
MODEL 2173
CopperLINK™ High Speed
Ethernet Extender
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2173 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Patton electronics 2173

Summary of Contents for Patton electronics 2173

  • Page 1 USER MANUAL MODEL 2173 CopperLINK™ High Speed Ethernet Extender This is a Class A device and is intended for use in a light industrial (commercial) environment only. It is not intended nor approved for use in a heavy industrial or residential environment.

  • Page 2: Table Of Contents

    A.7 Humidity ..................16 A.8 Dimensions ................. 16 Model 2173 Series Factory Replacement Parts and Accessories........17 Model 2173 Series Interface Pin Assignment ......18 C.1 10/100Base-T Interface .............. 18 RJ-45 ..................18 C.2 CopperLINK Interface ..............18 RJ-45 ..................18...
  • Page 3 Distance Chart, Based on 24 AWG (0.5 MM) ......19...

  • Page 4: Warranty Information

    1.0 WARRANTY INFORMATION Patton Electronics warrants all Model 2173 components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of the shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse or unauthorized modification.

  • Page 5: Ce Declaration Of Conformity

    of Part 15 of FCC rules, which are designed to provide reasonable pro- tection from such interference in a commercial installation. However, there is no guarantee that interference will not occur in a particular instal- lation. If the device does cause interference to radio or television recep- tion, which can be determined by disconnecting the unit, the user is encouraged to try to correct the interference by one or more of the follow- ing measures: moving the computing equipment away from the receiver,...

  • Page 6: Safety When Working With Electricity

    1.6 SAFETY WHEN WORKING WITH ELECTRICITY • This device contains no user serviceable parts. This device can only be repaired by qualified service person- nel. • Do not open the device when the power cord is con- nected. For systems without a power switch and without an external power adapter, line voltages are present within the device when the power cord is connected.
  • Page 7 In accordance with the requirements of council direc- tive 2002/96/EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you sepa- rate this product from other waste and scrap and deliver to the WEEE collection system in your country for recy- cling.

  • Page 8: General Information

    Operating in pairs, one Model 2173 is configured as the (L) Local unit located at one end of the LAN extension and the other Model 2173 is con- figured as the (R) Remote unit at the other end. The Model 2173 is config- ured as a L or R via the switch on the bottom of the unit.

  • Page 9: Installation

    Figure 1. Typical application The pair of 2173 models work together to create a transparent extension between two peered Ethernet LANs. Figure 1 shows a typical point-to- point application. 3.0 INSTALLATION The Interconnecting cables shall be acceptable for external use and shall be rated for the proper applica-...

  • Page 10: Connecting The Twisted-Pair Line Interface

    Note The Model 2173 units work in pairs. One of the units must be configured as a (L) Local unit, and the other unit must be config- ured as a (R) Remote unit. It does not matter which end is the L and which is the R.

  • Page 11: Connecting The 10/100Base-T Ethernet Interface

    19 (0.9mm) and 26 AWG (0.4mm). Leased circuits that run through signal equalization equipment are not acceptable. 2. The Model 2173 is equipped with an RJ-45 interface jack that can be used on the CopperLINK interface. The CopperLINK interface is a two-wire interface.

  • Page 12: Connecting Power

    An external AC or DC power supply is available separately. This connec- tion is made via the barrel jack on the rear panel of the Model 2173. No configuration is necessary for the power supply (See Appendix B for domestic and international power supply and cord options).
  • Page 13 Figure 5. Removing protective cover Figure 6 on page 13 shows the orientation of the DIP switches in the On and Off positions. Front Rear Switch toggle Push toggle up for ON position Push toggle down for 1 2 3 4 OFF position Figure 6.

  • Page 14: Configuring Dip Switch S1

    No user settings required. This section describes reading the LED status monitors. 5.1 POWER UP Before applying power to the Model 2173, please review section 3.3, “Connecting Power” on page 12 to verify that the unit is connected to the appropriate power source.

  • Page 15: Front Panel Led Status Monitors

    5.2 FRONT PANEL LED STATUS MONITORS The Model 2173 features six front panel LEDs that monitor power, the Ethernet signals, the CopperLINK connection, and the remote/local set- ting. Figure 7 shows the front panel location of each LED. Table 2 on page 15 describes the LED functions.

  • Page 16: Specifications

    APPENDIX A SPECIFICATIONS A.1 LAN CONNECTION • Two shielded RJ-45, 10/100Base-T, IEEE 802.3 Ethernet • CopperLINK Connection: Shielded RJ-45 A.2 TRANSMISSION LINE Two-wire unconditioned twisted pair. A.3 COPPERLINK LINE RATE AND COPPERLINK DISTANCE • Line Rate: 100/70 Mbps, upstream/downstream. Additional three line rates are available via DIP switch settings.

  • Page 17: Model 2173 Series Factory

    APPENDIX B MODEL 2173 SERIES FACTORY REPLACEMENT PARTS AND ACCESSORIES Patton Model # Description Base Models 2173/E CopperLINK Multi Rate 100 Mbps Ethernet Extender; No power supply 2173/E-2PK CopperLINK Multi Rate 100 Mbps Ethernet Extender Kit (2 units preset to local and remote); No power supply...

  • Page 18: Model 2173 Series Interface Pin Assignment

    APPENDIX C MODEL 2173 SERIES INTERFACE PIN ASSIGNMENT C.1 10/100BASE-T INTERFACE RJ-45 • Pin 1: TX+ • Pin 2: TX- • Pin 3: RX+ • Pin 6: RX- • Pins 4, 5, 7, 8: no connection C.2 COPPERLINK INTERFACE RJ-45 •...
  • Page 19 APPENDIX D DISTANCE CHART, BASED ON 24 AWG (0.5 MM) Throughput Distance in feet Line Rate at Max Distance (km) (bits per second) 4250 ft 4,629,408 (DS) (1.3 km) 1,175,328 (US) 100/70 500 ft 91,738,752 (DS) (0.15 km) 70,795,872 (US) 50/50 1000 ft 55,352,640 (DS)
  • Page 20 Copyright © 2010. Patton Electronics Company All Rights Reserved.
