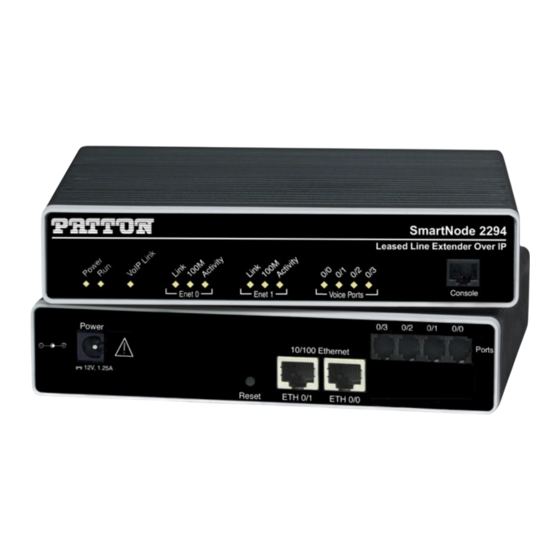

Model 2292 & 2294
Leased-Line Extenders over IP
Quick Start Guide
Important
intended nor approved for use in an industrial or residential environment.
Part Number: 07M2292-QS, Rev. A
Revised: April 13, 2009
—This is a Class A device and is intended for use in a light industrial environment. It is not
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patton electronics 2292
Summary of Contents for Patton electronics 2292

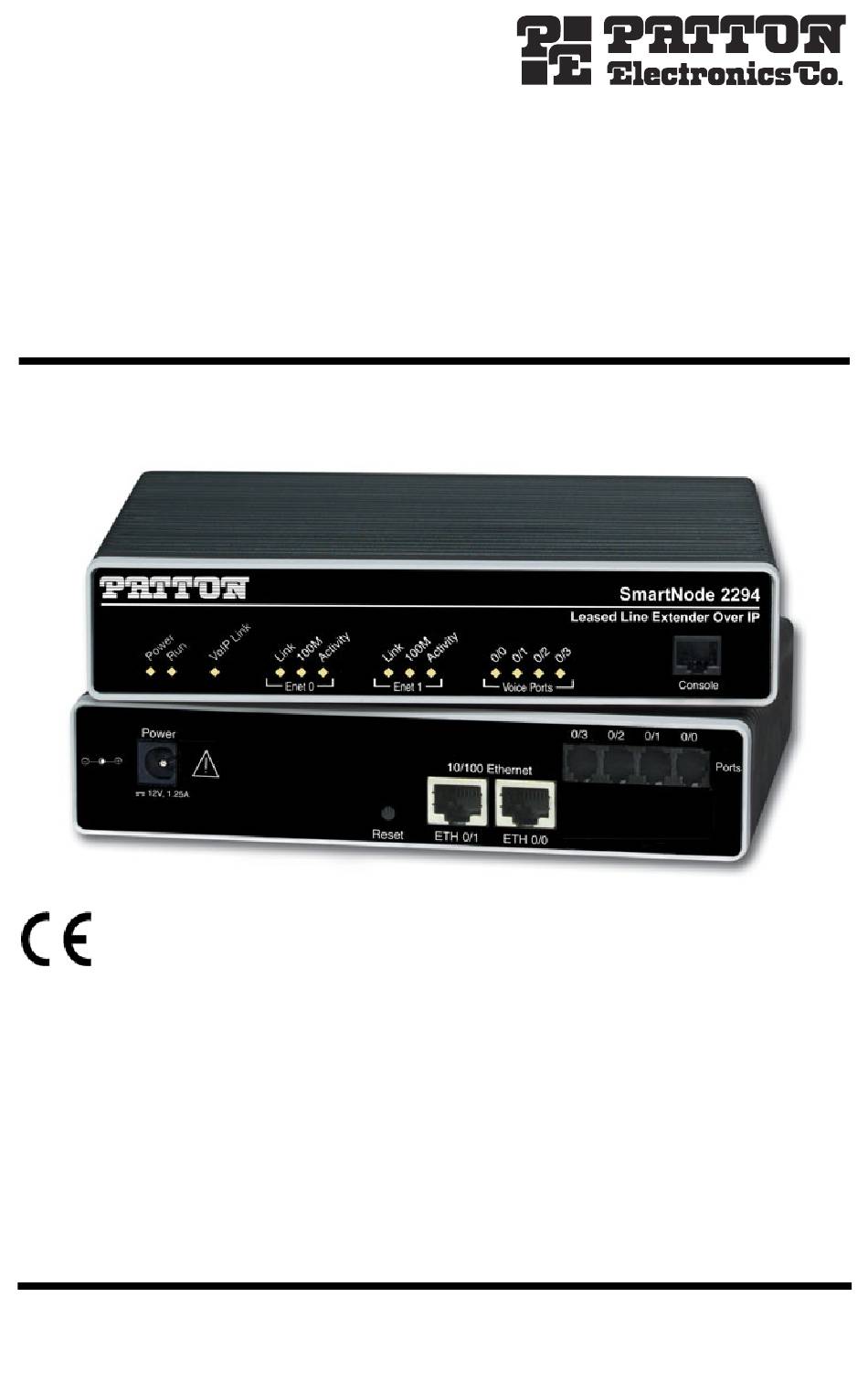

- Page 1 Model 2292 & 2294 Leased-Line Extenders over IP Quick Start Guide Important —This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment.
-
Page 2: Installing The Smartnode Extender
• This device contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • Mains Voltage: Do not open the case when the power cord is con- nected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected. -
Page 3: Installing An Interface Cable On The Extender's Voice Ports
Rear view showing location of Ethernet connectors and voice ports (SmartNode 2294 shown) Figure 1. . 2 5 0 / 1 0 / 0 r t s RJ-11, male RJ-11, male FXS connection Figure 2. Model 2292/2294 Quick Start Guide... - Page 4 FXO connection Figure 3. o le r t s Socket Plug RJ-11 pinout diagram Figure 4. RJ-11 socket Table 1. Signal Ring (-) Tip (+) Unit must not connect directly to telecom network voltage (TNV). Note Model 2292/2294 Quick Start Guide...
-
Page 5: Installing The Ethernet Cable
1.4 Installing the Ethernet cable The SmartNode 2292 Series has automatic MDX (auto-cross-over) detection and configuration on the Ethernet ports. Any of the two ports can be connected to a host or hub/switch with a straight-through wired cable (see figure 5). -
Page 6: Connecting To External Power Source
Patton SmartNodes can be used for a wide variety of IP-based network applications. To support and ease the configuration of the SmartNodes configuration, templates for the most important applications are available on the Patton server at www.patton.com/voip. The main steps for setting up a new SmartNode are shown in figure Model 2292/2294 Quick Start Guide... -
Page 7: Configure The Ip Address
The factory default configuration for the Ethernet interface IP addresses and network masks are listed in table Factory default IP address and network mask configuration Table 3. IP Address Network Mask DHCP DHCP Interface Ethernet 0 (ETH0) 192.168.1.1 255.255.255.0 Interface Ethernet 1 (ETH1) Both Ethernet interfaces are activated upon power-up. Model 2292/2294 Quick Start Guide... -
Page 8: Connect With The Serial Interface
SmartNode Series device Connecting to the terminal Figure 8. Terminal emulation program settings: 9600 baud • no parity • 8 bit • 1 stop bit • 1 start bit • No flow control • Model 2292/2294 Quick Start Guide... - Page 9 Reboot both units and connect them back-to-back through their Ethernet 0/1 ports. Voice connections will automatically be set up between the units. The steps above will configure the IP addresses as well as the required configurations for voice connections. Model 2292/2294 Quick Start Guide...
-
Page 10: Additional Information
3.0 Additional Information Refer to the Model 2292/2294 Getting Started Guide located on the CD-ROM shipped with your device and avail- able online at For detailed information about: www.patton.com/manuals. Installing, configuring, operating, and troubleshooting. • Warranty, trademark & compliance •... -
Page 11: Compliance Information
The safety advice in the documentation accompanying this product shall be obeyed. The conformity to the above directive is indicated by CE sign on the device. The signed Declaration of Conformity can be downloaded at www.patton.com/certifications. Model 2292/2294 Quick Start Guide... -
Page 12: Copyright Statement
Warranty For warranty information, refer to the Model 2292/2294 Getting Started Guide located on the CD-ROM that came with your device or available online at www.patton.com. In accordance with the requirements of council directive 2002/96/EC on Waste of...
