Output Technology 2100 Series Replacement Parts Catalog

Hide thumbs

Advertisement

Quick Links

Download this manual
2100 Series Printers
Replacement Parts Catalog

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Output Technology 2100 Series

Summary of Contents for Output Technology 2100 Series

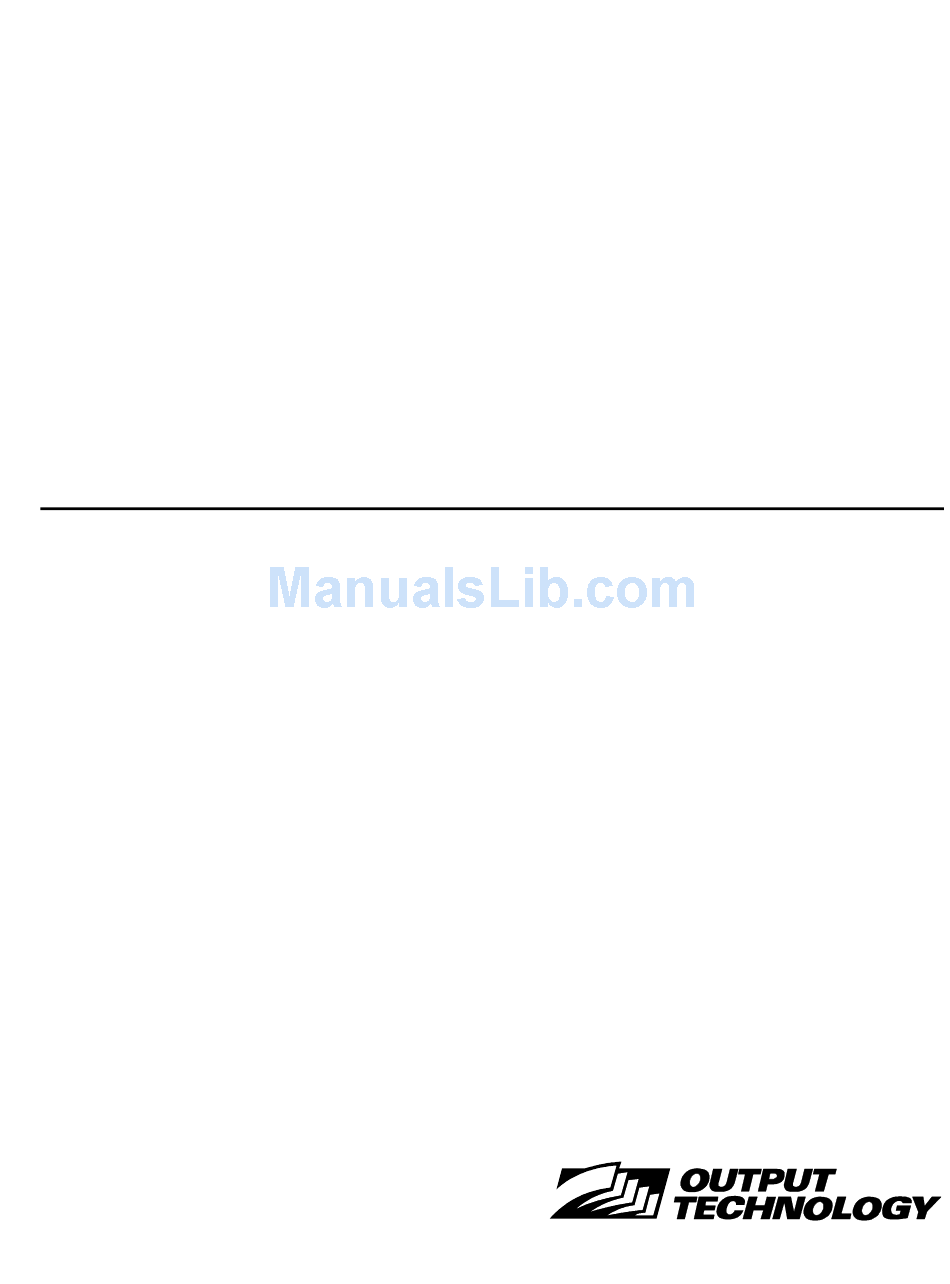

  • Page 1 2100 Series Printers Replacement Parts Catalog...
  • Page 2 For service, please have your printer model and serial numbers handy — these are located on the back of the printer. Output Technology maintains a Bulletin Board System (BBS) service. In the U.S.A., call (509) 533- 1217 to access our BBS service for the very latest, up-to-date drivers, firmware, pricing, maintenance and troubleshooting aids, and application information.

  • Page 3: Ordering Information

    GENERAL This catalog contains itemized lists of all servicing aids, supplies, expendables, and field replaceable parts for all models of the printer. Ordering information is provided for field replaceable units (FRUs). FRUs are illustrated at the end of this publication. Parts are listed in the following tables —...

  • Page 4: Customer Replaceable Units (Crus) And Miscellaneous

    If applicable, have your Visa or MasterCard number and expiration date ready, and then contact Output Technology Corporation by phone, fax, or mail: 2310 North Fancher Road Spokane, WA 99212-1381 Phone: (509) 536-0468 Fax: (509) 533-1280 To order customer replaceable units (CRUs) or other miscellaneous items, select from the following table and then continue as directed in Step 4 above.
  • Page 5 FIELD SERVICE TOOLS (Recommended) Screwdrivers - #1 Straight slot - #2 Straight slot - #1 Phillips - #2 Phillips with 8-to-10-in. shaft, such as Xcelite® part number XST-102. Hex Allen wrenches ", ", ", ", ", " Open end wrenches or sockets ", ", ",...

  • Page 6: Field Replaceable Units (Frus)

    FIELD REPLACEABLE UNITS (FRUs) Model Item Fig. FRU Part No. Description 2140 2160 2180 001-00093-XX Sleeve, Ribbon Drive 001-00095-01 Shim, Printhead .001 Thick 001-00095-02 Shim, Printhead .002 Thick 001-00147-XX Clamp, Ribbon Shield 001-00166-XX Clamp, Ribbon Shield 001-00277-XX Shield, Ribbon, Stainless 001-00287-XX Clamp, Ribbon Shield 002-00066-XX...
  • Page 7 FRUs (Continued) Model Item Fig. FRU Part No. Description 2140 2160 2180 020-00020-10 Cable, 44 Cond, Printhead, Ext 1 020-00020-11 Cable, 44 Cond, Printhead, Ext 2 020-00020-12 Cable, 44 Cond, Printhead, Ext 3 020-00024-XX Cable, Interlock/Jam 020-00031-10 Cable, Printhead, Carriage, #1 020-00031-11 Cable, Printhead, Carriage, #2 020-00031-12...
  • Page 8 FRUs (Continued) Model Item Fig. FRU Part No. Description 2140 2160 2180 021-00055-XX Access Door, Paper 021-00085-XX Transformer 021-00089-XX Paper Feed Motor w/o Tractor Pulley 021-00111-XX Forms Compressor 37.5 021-00112-XX PCB, Serial Interface w/o Firmware 021-00114-XX PCB, Coax 021-00164-XX Superfan 021-00198-XX Access Door, Ribbon 021-00393-XX...
  • Page 9 FRUs (Continued) Model Item Fig. FRU Part No. Description 2140 2160 2180 043-00040-03 EPROM, Serial Interface, V3.04 043-00045-02 EPROM Set, V3.03 043-00051-01D EPROM Set, V2.03 043-00052-02 EPROM, Motor Controller, V3.00 043-00053-00A EPROM Set, V1.00 54.3 043-00053-01A EPROM Set, V2.00 54.5 043-00054-00E EPROM, Coax Mother PCB, V1.04 043-00080-00A...
  • Page 10 FRUs (Continued) Model Item Fig. FRU Part No. Description 2140 2160 2180 046-00084-XX Tractor 046-00119-XX Printhead Carriage 046-00120-XX Switch Panel 046-00121-XX Carriage Motor 046-00132-XX Printhead Carriage 62.3 5a&b 046-00137-XX Printhead, 21 Wire (includes shims) 62.5 046-00141-XX Paper Feed Motor 046-00178-XX PCB, Analog 046-00179-XX PCB, Digital...
  • Page 11 FRUs (Continued) Model Item Fig. FRU Part No. Description 2140 2160 2180 082-00031-XX Belt, Line Feed, ", 180T 082-00036-03 Pulley,LF Tractor Shaft,DF,36T, " 082-00045-01 Belt, Carriage Drive, ", 95T 082-00045-02 Belt, Carriage Drive, ", 115T 082-00049-XX Pulley, Carriage Idler, DF, 10T —...
  • Page 12 Figure 1a. Enclosure (Top View) BD0-A1 2100 Parts Catalog 2/10/98...
  • Page 13 Figure 1b. Enclosure (Bottom View) BD0-J 2100 Parts Catalog 2/10/98...
  • Page 14 Figure 2a. Base Assembly (Models 2140 & 2160, Shown With Optional Serial Interface) BD0-B1 2100 Parts Catalog 2/10/98...
  • Page 15 Figure 2b. Base Assembly (Model 2180, Shown With Optional Serial Interface) BD0-C2 2100 Parts Catalog 2/10/98...
  • Page 16 Figure 3a. Twinax Option BD0-D Figure 3b. Coax Option BD0-E 2100 Parts Catalog 2/10/98...
  • Page 17 Figure 4. Printer Mechanism BD0-F2 2100 Parts Catalog 2/10/98...
  • Page 18 Figure 5a. Printhead Carriage (Model 2140) BD0-G2 2100 Parts Catalog 2/10/98...
  • Page 19 Figure 5b. Printhead Carriage (Model 2160) BD0-H1 2100 Parts Catalog 2/10/98...
  • Page 20 Figure 5c. Printhead Carriage (Model 2180) BD0-I1 2100 Parts Catalog 2/10/98...
