PrintStation 60/70
ILLUSTRATED PARTS
CATALOG
066069000 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PrintStation 60 and is the answer not in the manual?

Questions and answers

Related Manuals for Output Technology PrintStation 60

Summary of Contents for Output Technology PrintStation 60

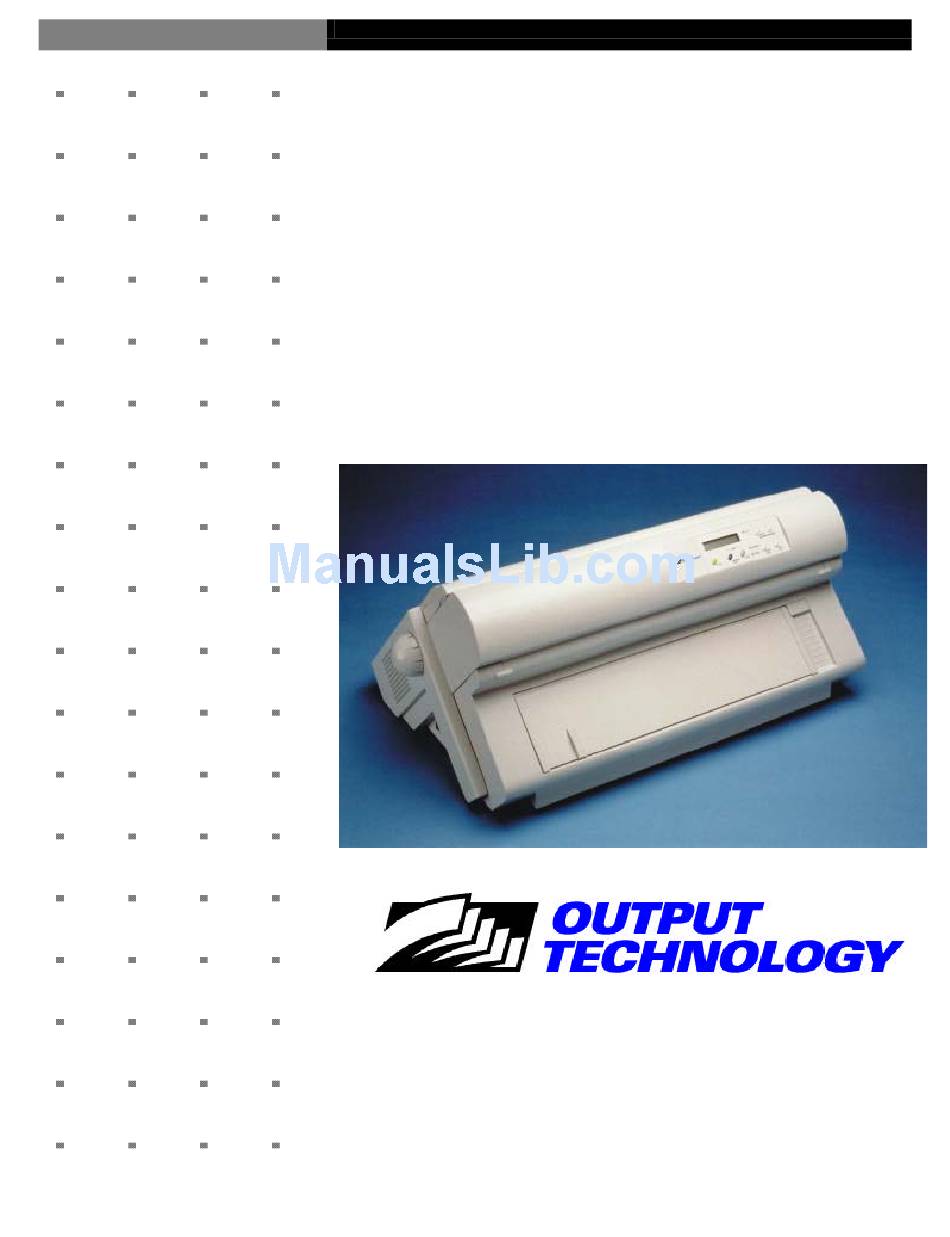

  • Page 1 PrintStation 60/70 ILLUSTRATED PARTS CATALOG 066069000 Rev. B...

  • Page 3: Table Of Contents

    Mechanical Assembly III Figure 9 First (Lower) Tractor Assembly Figure 10 Second (Upper) Tractor Assembly Figure 11 Pull Tractor Assembly Figure 12 Automatic Sheet Feeder Assy Figure 13 Paper Stacker Assembly Figure 14 Color Motor Assy ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 4: Section I

    When a code is written with remark (Misc. item xx), please refer to the Section IV for the composition of these miscellaneous Kits. Where no code is written, this part is not available for the Field Service department. For each possible part number evolution and its intercheangeability, please refer to Product Support of Output Technology. ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 5: Recommended Spare Parts List

    MOVABLE GEAR 78900726-001 AGA MOTOR ASSY 78900727-001 CONNECTOR TRACTOR COVER 78402178-003 BASE ASSY 78900816-001 IDLE GEAR 78402706-001 IDLE 78402707-001 PAPER MOTOR ASSY 78404539-001 AGA SUPPORT GROUP 78402827-002 REAR TRACTOR COVER GR. 78402853-003 FAN SUPPORT 78403037-001 ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 6: Table 1 Recommended Spare Parts List For Basic Printer

    FRONT COVER GROUP 78407425-001 MAIN BOARD 2V7F24 78900681-001 LEFT TRACTOR 4 pin 78900689-001 RIGHT TRACTOR 4 pin 78900688-001 LEFT TRACTOR 6 pin 78203350-005 RIGHT TRACTOR 6 pin 78203350-006 KIT TRACTOR Left + Right 4 pin 78900690-001 ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 7: Table 2 Recommended Spare Parts List For Options

    ASF CAP 2 78403031-001 ASF CAP 1 78403032-001 ASF DEFLECTOR ASSY 78403039-001 ASF ANTINOISE COVER 78403042-002 P.S. BOARD GX2STK 78403319-001 P.S. RIGHT CAP 78405479-002 P.S. LEFT CAP 78405480-002 PULL TRACT. CONN. COVER 78405721-002 GX2TRP BOARD 78405722-001 ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 8: Basic Printer Exploded Views

    Circlip D 6 78399163-004 (misc. Kit item 5) Washer 78399163-004 (misc. Kit item 12) Thrust washer 78399163-004 (misc. Kit item 11) First (Lower) Tractor As.y 78900695-001 First (Lower)Tractor As.y 78900696-001 Screw M3x8 78399161-003 (misc. Kit item 7) ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 9: Figure 1 Cover Assembly I

    Illustrated Parts Catalogue Figure 1 Covers Assembly I ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 10: Table 4 Covers Assembly

    Right Gear Cover 78900742-001 Right Gear Cover for Pull Opt. 78405724-002 Fastener Loop 78399159-006 (misc. Kit item 13) Paper Deflector 78900741-001 GX2INT Board 78900746-001 Note: Item 26 contains item 26A Item 5 ( ) contains item 5A ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 11: Figure 2 Covers Assembly Ii

    Illustrated Parts Catalogue Figure 2 Covers Assembly II ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 12: Table 5 Basic Assembly I

    (misc. Kit item 17) Mechanical Assy Mechanical Assy Mechanical Block 78399159-006 (misc. Kit item 1) Mechanical Block 78399159-006 (misc. Kit item 2) Base Assembly 78900816-001 Fastener Loop Self-Lock 78399159-006 (misc. Kit item 13) Paper Position Mylar 78404205-001 ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 13: Figure 3 Basic Assembly I

    Illustrated Parts Catalogue Figure 3 Basic Assembly I ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 14: Table 6 Basic Assembly

    Carriage Fan Assy 78900815-001 Screw M3x30 78399161-003 (misc. Kit item 21) Nut M3 78399163-004 (misc. Kit item 17) Clamp for Cable 78399158-004 (misc. Kit item 13) Washer D3.2 Screw M3x8 78399161-003 (misc. Kit item 7) ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 15: Figure 4 Basic Assembly Ii

    Illustrated Parts Catalogue Figure 4 Basic Assembly II ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 16: Table 7 Basic Assembly

    (misc. Kit item 19) Screw M4x14 78399161-003 (misc. Kit item 2) Washer 78399163-004 (misc. Kit item 8) Label Label Print Head ER24MR 78405418-001 Washer 78399163-004 (misc. Kit item 25) Alternance Cable 78401288-002 Paper Stacker Cable 78900756-001 ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 17: Figure 5 Basic Assembly Iii

    Illustrated Parts Catalogue Figure 5 Basic Assembly III ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 18 Thrust Washer 78399163-004 (misc. Kit item 11) Vibrodamp 78399158-004 (misc. Kit item 1) Cable Retainer 78399158-004 (misc. Kit item 11) Lower Mylar Assy 78399660-001 Bracket Paper Guide Paper Guide Cable Clamp 78399158-004 (misc. Kit item 13) ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 19 Illustrated Parts Catalogue Figure 6 Mechanical Assy I ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 20 78399159-006 (misc. Kit item 15) Wear Res. Spring 78405381-001 Eccentric bushing 78399655-001 Screw M4x12 78399655-001 Note: Item 59 includes item 34, 35, 36, 59A, 59B, 61, 62, 69 Note: Item 63 includes item 147, 154 ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 21 Illustrated Parts Catalogue Figure 7 Mechanical Assy II ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 22 (misc. Kit item 11) Spacer 78399158-004 (misc. Kit item 12) Washer D 3 78399163-004 (misc. Kit item 15) Connector Plate Washer 60d 78399184-001 Screw 2.5x4 Note: item 102A includes 102, 103, 46, and 146 (2 pieces). ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 23 Illustrated Parts Catalogue Figure 8 Mechanical Assy III ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 24: Table 11 First (Lower) Tractor Assembly

    Board Cover 78402178-003 O-Ring 78399159-006 (misc. Kit item 14) Screw M3x8 78399161-003 (misc. Kit item 5) Washer D3.2 78399163-004 (misc. Kit item 20) ESD Spring Dual Tractor Gear 78406807-001 Spacer Lower Support right Lower Support left ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 25: Figure 9 First (Lower) Tractor Assembly

    Illustrated Parts Catalogue Figure 9 First (lower) Tractor Assy ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 26: Table 12 Second (Upper) Tractor Assembly

    (misc. Kit item 1) Screw M3x6 78399161-003 (misc. Kit item 17) Left Cover 78403360-002 Right Cover 78403359-004 O-Ring 78399159-006 (misc. Kit item 14) ESD Spring Lower Support right Lower Support left Magnet Assy Circlip D10 ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 27: Figure 10 Second (Upper) Tractor Assembly

    Illustrated Parts Catalogue Figure 10 Second (Upper) Tractor Assy ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 28: Options Exploded Views

    (misc. Kit item 5) Screw 2.9x9.5 78399162-002 (misc. Kit item 13) Spacer Bracket Bracket Ground Ground Circlip D 4 78399163-004 (misc. Kit item 9) Circlip D 8 78399163-004 (misc. Kit item 10) Washer lock D 3.2 ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 29: Figure 11 Pull Tractor Assembly

    Illustrated Parts Catalogue Figure 11 Pull Tractor Assy ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 30: Table 14 Automatic Sheet Feeder Assy

    (misc. Kit item 20) Washer 78399163-004 (misc. Kit item 20) Bracket GX2INT Board 78900746-001 Note: item 9 is also included in item 10 (2 pieces) and in item 11 (1 piece) Figure 12 Automatic Sheet Feeder Assy ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 31: Table 15 Paper Stacker Assembly

    (misc. Kit item 14) Screw M3x4 78399161-003 (misc. Kit item 3) Board GX2STK 78403319-001 Left Cap 78405480-002 Cable Assy Board 78402834-003 Right Cap 78405479-002 Shaft Nut M3 78399163-004 (misc. Kit item ) Figure 13 Paper Stacker Assy ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 32: Figure 14 Color Motor Assy

    Table 16 COLOR MOTOR ASSEMBLY INDEX N. DESCRIPTION PART NUMBER Carriage Assy 78399661-001 Color Motor Assy 78399167-002 Screw M3x8 78399161-003 Note: item 3 is also included in item 2 (2 pieces). Figure 14 Color Motor Assy ____________ __________________________________________________________________________ Output Technology PS60/70...

  • Page 33: Miscellaneous Kits

    (quantity of 1) Damper Spacer (quantity of 1) Shaft Retainer (quantity of 1) Stud (quantity of 1) Spring Guide (quantity of 1) Cable Retainer (quantity of 1) Spacer (quantity of 1) Clamp for Cable (quantity of 2) ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 34 Screw M3x4 (quantity of 3) Screw M3x6 (quantity of 3) Screw M3x10 (quantity of 3) Screw M4x8 (quantity of 3) Screw M3x4 (quantity of 3) Screw M3x30 (quantity of 3) Aga stud (quantity of 1) ____________ __________________________________________________________________________ Output Technology PS60/70...
  • Page 35 (quantity of 5) Insulating Washer (quantity of 5) Washer 3.2 (quantity of 5 Washer 6.0 (quantity of 2) Screw M2x6 (quantity of 2) Washer D2.2 (quantity of 2) Thrust Washer (quantity of 5) Washer (quantity of 5) ____________ __________________________________________________________________________ Output Technology PS60/70...

This manual is also suitable for:

Printstation 70
