Output Technology LaserMatrix 2400 Series Replacement Parts Catalog

Hide thumbs

Advertisement

Quick Links

Download this manual
®
Series 2400 Laser Printers
Replacement Parts Catalog

Advertisement

loading
Need help?

Need help?

Do you have a question about the LaserMatrix 2400 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Output Technology LaserMatrix 2400 Series

Summary of Contents for Output Technology LaserMatrix 2400 Series

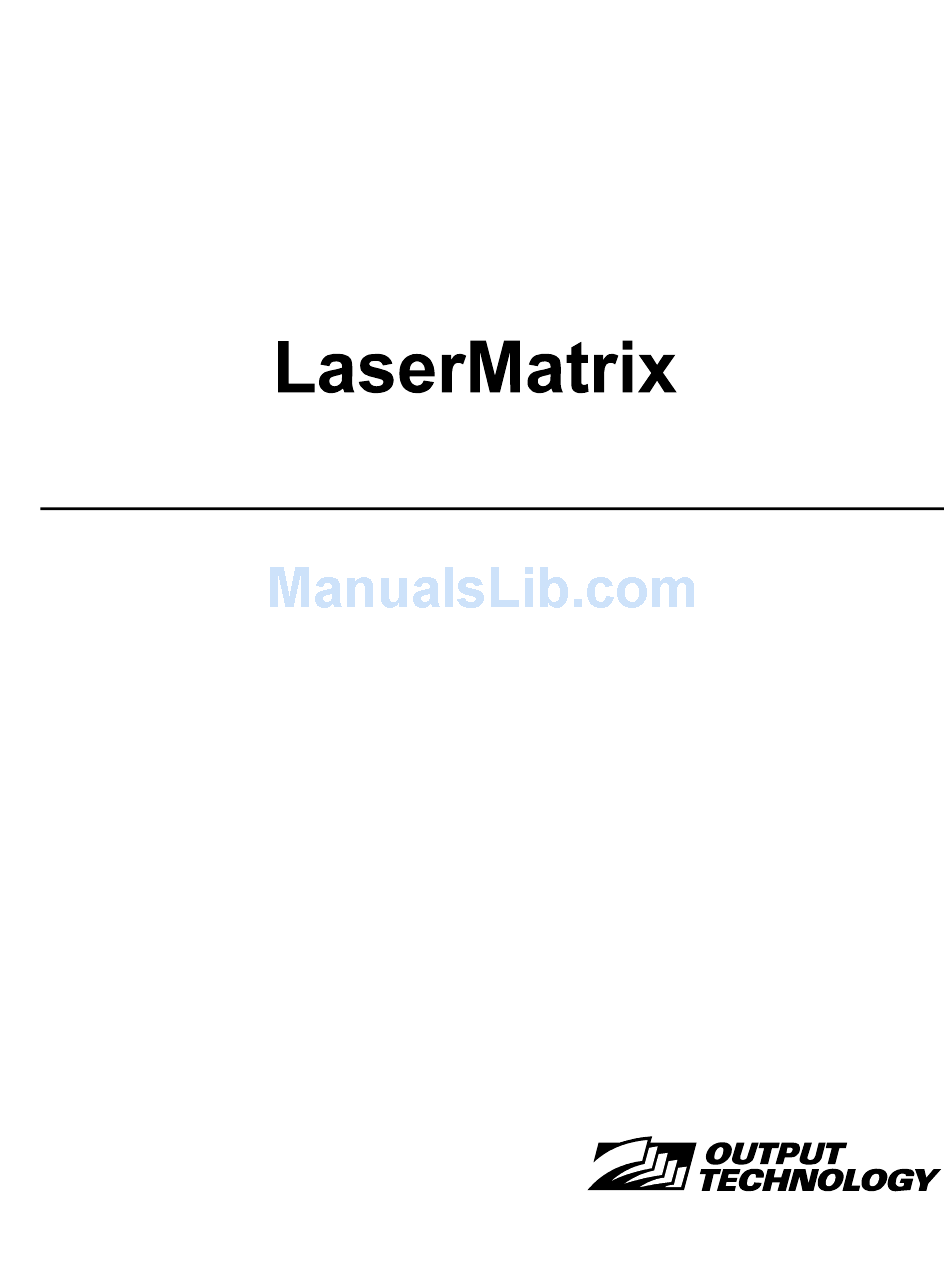

  • Page 1 ® Series 2400 Laser Printers Replacement Parts Catalog...
  • Page 2 Output Technology Corporation. Output Technology Corporation 3808 North Sullivan Road — Spokane, WA 99216 (509) 536-0468 We suggest you use genuine Output Technology parts and authorized service centers: Contact us at — Voice: (509) 536-0468 — Fax: (509) 533-1280 WWW: http://www.output.com...

  • Page 3: Ordering Information

    Obtain the serial number of your printer (on the right side of the printer). If applicable, have your Visa or MasterCard number and expiration date ready, and then contact Output Technology Corporation by phone, fax, mail as instructed on the inside cover of this publication.

  • Page 4: Customer Replaceable Units (Crus) And Miscellaneous

    To order customer replaceable units (CRUs) or other miscellaneous items, select from the following table and then continue as directed in Step 4 above. CUSTOMER REPLACEABLE UNITS (CRUs) AND MISCELLANEOUS Order Number Description Customer Replaceable Units (CRUs) LM2400C101 Developer Kit, containing — (1) Startup Toner Bottle (1) Toner Bottle Sprout (1) Developer Unit...
  • Page 5 Order Number Description CRUs (Continued) 080-00072-00 Cleaning Kit, containing — (5) Wipes (5) Large-tipped swabs (1) Brush for cleaning corona wires Publications Manual, Installation Guide NON-IMPACTCD100 · Manual, Operator's Guide · Manual, Parts Catalog 066-00496-00 Manual, Maintenance Shipping 046-00324-00 Ship Kit FIELD SERVICE TOOLS (Recommended) Screwdrivers Digital voltmeter...

  • Page 6: Field Replaceable Units (Frus)

    FIELD REPLACEABLE UNITS (FRUs) Qty Per Item Figure FRU Part No. Description Printer 001-00333-00 Contact, Earth Ground 001-00929-00 Guide, Paper, Top-Of-Form 002-00264-00 Housing, Ozone Filter, Plenum 002-00265-00 Cover, Tractor Sensor 002-00274-00 Lid Catch, Left 002-00275-00 Lid Catch, Right 6 & 7 002-00279-00 Latch, Developer, Retaining, Green 002-00333-00...
  • Page 7 FIELD REPLACEABLE UNITS (FRUs) Qty Per Item Figure FRU Part No. Description Printer 021-00654-00 Tractor Assembly 021-00655-00 Frame Assembly, Right 021-00656-00 Frame Assembly, Left LM2400C104 Fuser (Heater & Pressure) Assembly, 115 VAC 021-00658-00 Fuser Base 021-00659-00 Top Cover Assembly, With Release Button 021-00660-00 Heat Roller Subassembly, Without Lamp 021-00661-00...
  • Page 8 FIELD REPLACEABLE UNITS (FRUs) Qty Per Item Figure FRU Part No. Description Printer 043-00370-06 EPROM, EC Firmware V1.33 046-00348-00 Kit, PCB,RIP Controller 082-00201-01 Gear, Inner Transfer, Front-End 082-00204-01 Gear, Main Drive, Front-End 082-00415-00 Actuator, Drum Sensor 097-00127-00 Clutch, Fuser 107-00102-00 Motor, Front-End Drive (With Gear) 107-00104-00 Fan, Ozone...
  • Page 9 Figure 1a. Main Upper Access Series 2400 2/19/98...
  • Page 10 Figure 1b. Main Lower Access to LVPS & Backplane Series 2400 2/19/98...
  • Page 11 Figure 2. Lid Access Series 2400 2/19/98...
  • Page 12 Figure 3a. Paper Path Series 2400 2/19/98...
  • Page 13 Figure 3b. Paper Path Series 2400 2/19/98...
  • Page 14 See Figure 4c for disassembly of fuser base assembly. See Figure 4b for disassembly of fuser heater & pressure assemblies. Figure 4a. Fuser Assemblies Series 2400 2/19/98...
  • Page 15 Figure 4b. Fuser Heater & Pressure Assembly Series 2400 2/19/98...
  • Page 16 Figure 4c. Fuser Base Assembly Series 2400 2/19/98...
  • Page 17 Figure 5. Right-Front Corner Series 2400 2/19/98...
  • Page 18 Figure 6. Right Frame Assembly Series 2400 2/19/98...
  • Page 19 Figure 7. Left Frame Assembly Series 2400 2/19/98...
  • Page 20 PCB does not contain firmware. Figure 8. Engine Controller PCB PD1- Series 2400 2/19/98...
  • Page 21 PCB does not contain firmware. See Figure 10 for firmware. Figure 9. RIP Controller PCB (Without Firmware) PD1-N Figure 10. RIP Firmware (DIMM) PCB PD1-O1 Series 2400 2/19/98...
  • Page 22 Figure 11. Low Voltage Power Supply Series 2400 2/19/98...
