Note: For the other buttons shown on the web pages, please refer to Chapter 4 for detailed
explanation.
1 . 3 L E D I n d i c a
1 . 3 L E D I n d i c

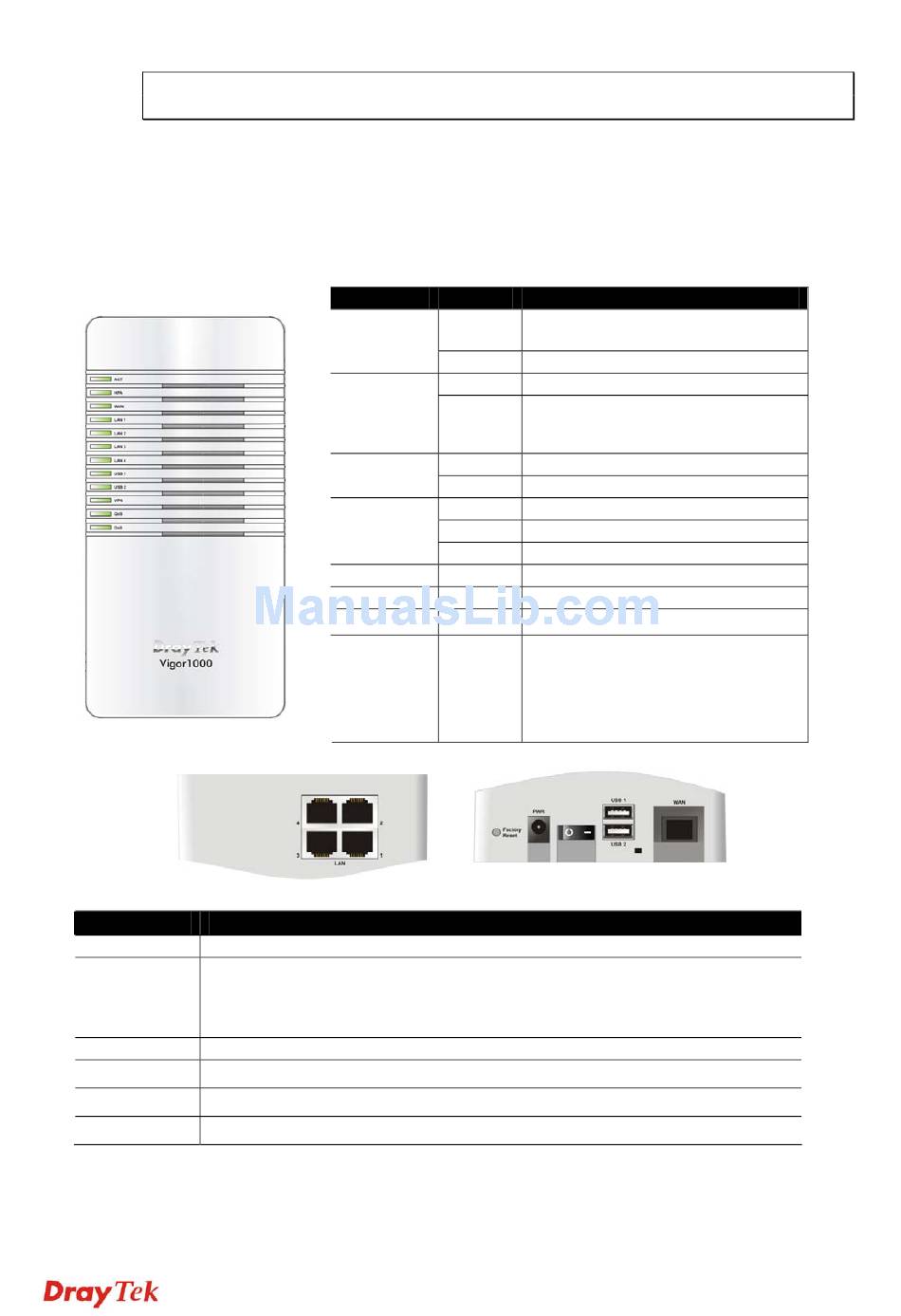

Before you use the Vigor router, please get acquainted with the LED indicators and connectors
first.
1 . 3 . 1 F o r V i g o
1 . 3 . 1 F o r V i g o
Interface
LAN (1-4)
Factory Reset
PWR
ON/OFF
USB (1-2)
WAN
t o r s a n d C o n
a t o r s a n d C o n
r 1 0 0 0
r 1 0 0 0
LED
ACT
(Activity)
HPA
(Hardware
Packet
Accelerate)
WAN
LAN1/2/3/4
USB1/2
VPN
QoS
DoS
Description
Connectors for local networked devices.
Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press
the hole and keep for more than 5 seconds. When you see the ACT LED begins to
blink rapidly than usual, release the button. Then the router will restart with the
factory default configuration.
Connector for a power adapter.
Power switch.
Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup.
Connector for accessing the Internet.
n e c t o r s
n e c t o r s
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On Hardware NAT is enabled.
Off Hardware NAT is disabled.
On The WAN port is connected.
Blinking It will blink while transmitting data.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
On The VPN tunnel is active.
On The QoS function is active.
On The DoS/DDoS function is active.
