Syslog/Mail Alert - Draytek Vigor2820 Series User Manual

3 . 1 5 . 6 S y s l o g / M a
3 . 1 5 . 6 S y s l o g / M a

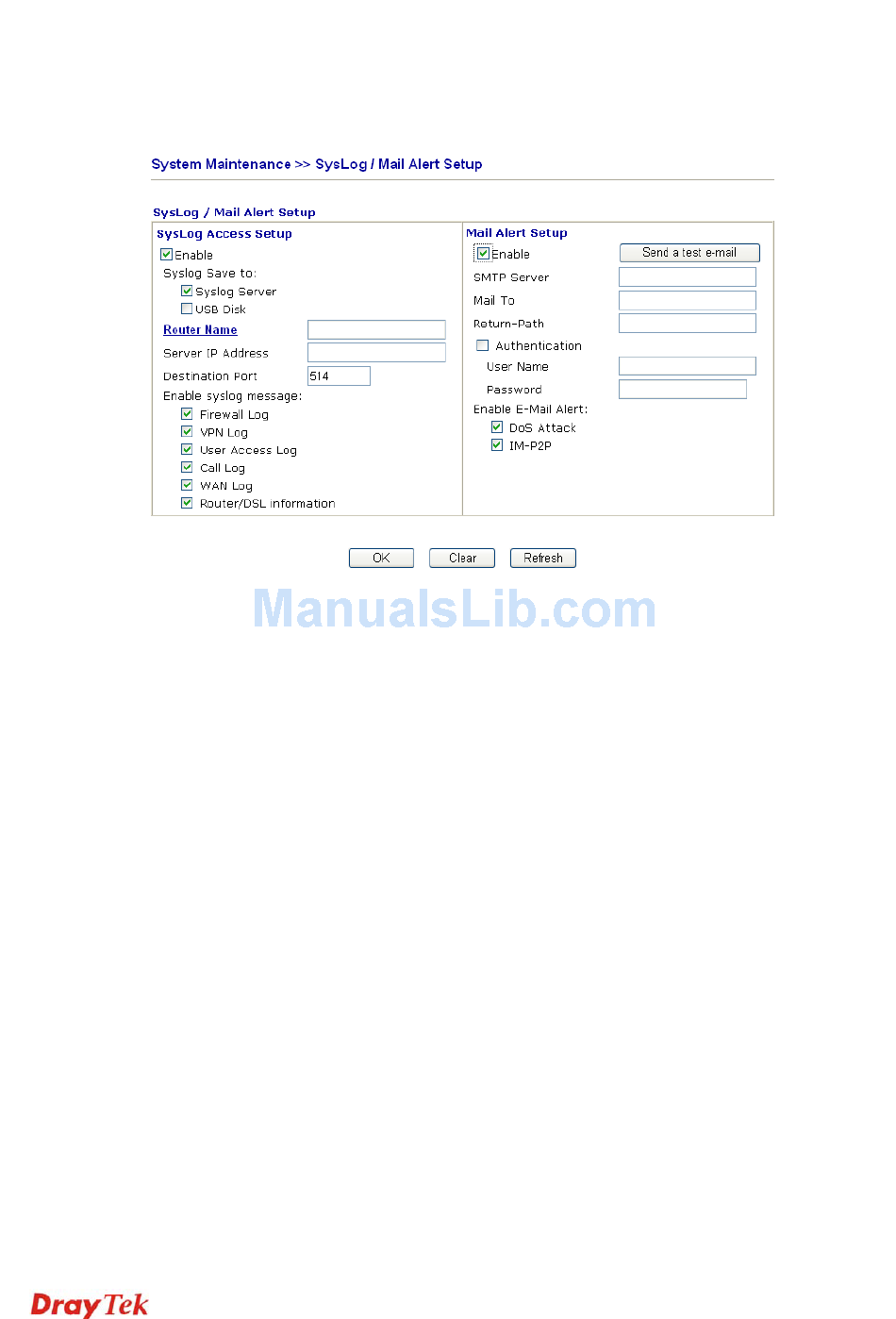

SysLog function is provided for users to monitor router. There is no bother to directly get into
the Web Configurator of the router or borrow debug equipments.
SysLog Access Setup
Router Name
Server IP Address
Destination Port
Enable syslog message
Mail Alert Setup
Send a test e-mail
SMTP Server
Mail To
Return-Path
Authentication
User Name
Password
i l A l e r t
i l A l e r t
Enable - Check Enable to activate function of syslog.
Syslog Save to – Check Syslog Server to save the log to
Syslog server.
Display the name for such router configured in System
Maintenance>>Management.
If there is no name here, simply lick the link to access into
System Maintenance>>Management to set the router name.
The IP address of the Syslog server.
Assign a port for the Syslog protocol.
Check the box listed on this web page to send the
corresponding message of firewall, VPN, User Access, Call,
WAN, Router/DSL information to Syslog.
Check "Enable" to activate function of mail alert.
Make a simple test for the e-mail address specified in this page.
Please assign the mail address first and click this button to
execute a test for verify the mail address is available or not.
The IP address of the SMTP server.
Assign a mail address for sending mails out.
Assign a path for receiving the mail from outside.
Check this box to activate this function while using e-mail
application.
Type the user name for authentication.
Type the password for authentication.
241
Vigor2820 Series User's Guide
