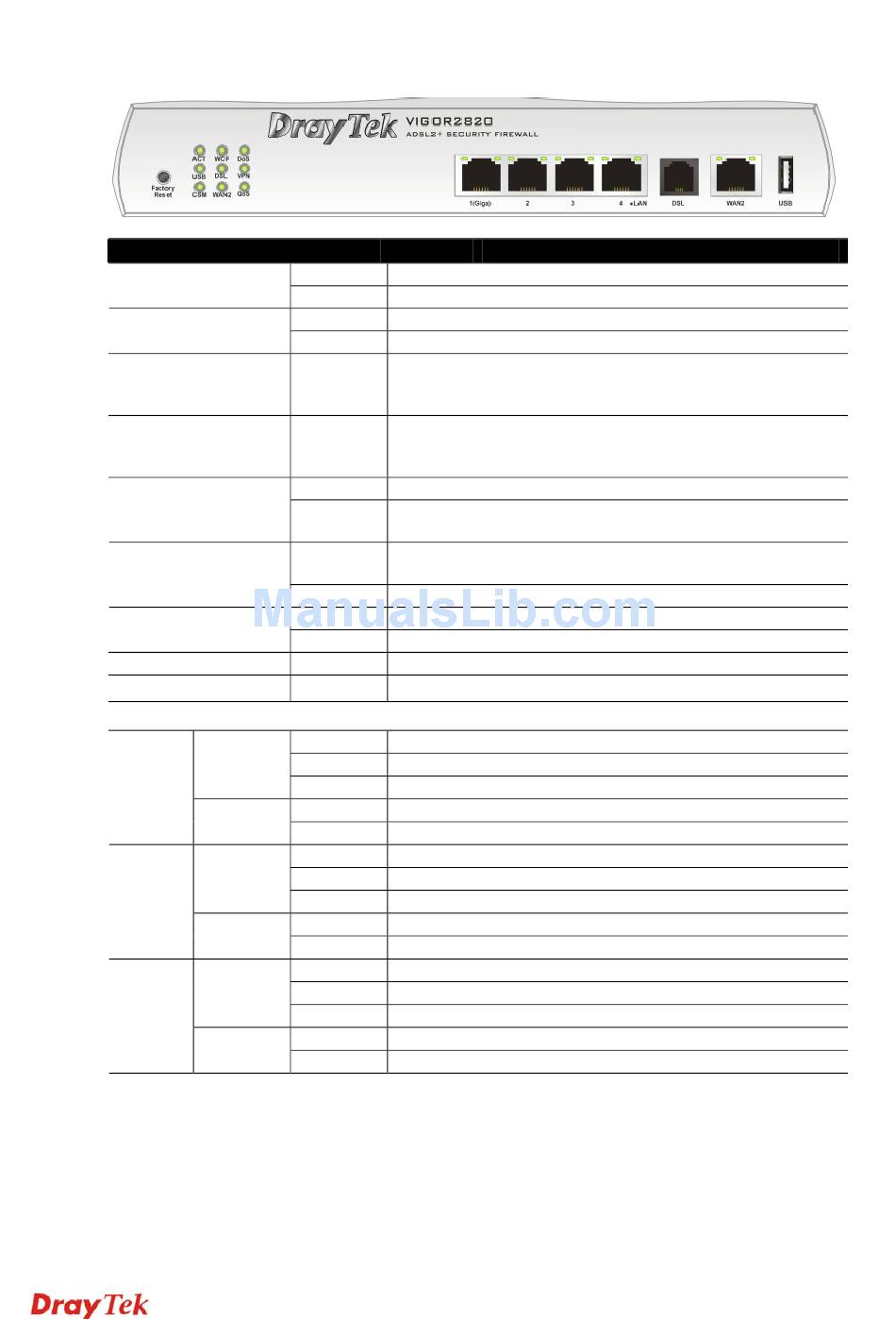

For Vigor2820 - Draytek Vigor2820 Series User Manual

1 . 2 . 1 F o r V i g o r 2 8
1 . 2 . 1 F o r V i g o r 2 8
LED
ACT (Activity)
USB
CSM
WCF
DSL
WAN2
DoS
VPN
QoS
LED on Connector
Left LED
LAN
(Green)
1(Giga)
Right LED
(Green)
Left LED
LAN
(Green)
2/3/4
Right LED
(Green)
Left LED
WAN 2
(Green)
Right LED
(Green)
2 0
2 0
Status
Blinking The router is powered on and running normally.
Off The router is powered off.
On A USB device is connected and active.
Blinking The data is transmitting.
On The profile of CSM (Content Security Management) for
IM/P2P application is enabled from Firewall >> General
Setup. (Such profile is established under CSM menu).
On The Web Content Filter is active. (It is enabled from Firewall
>> General Setup and the web content filter profile is
established under CSM menu.)
On The router is ready to access Internet through DSL link.
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is tranning.
On The router is ready to access Internet through WAN
connection.
Blinking It will blink while transmitting data.
On The DoS/DDoS function is active.
Blinking It will blink while deleting an attack.
On The VPN tunnel is active.
On The QoS function is active.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Off The port is disconnected with 10/100Mbps.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected with 10Mbps.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 100Mbps.
Off The port is disconnected with 10Mbps.
Explanation
3
Vigor2820 Series User's Guide
