Maintenance
Replacement:
1. Remove the front glass by
removing the two (2) outer
screws holding the glass clips
(Figure 5).
2. Remove the log grate
by removing the two (2)
mounting screws
3. Remove the log set by lifting
straight up
4. Slide the light assembly
slightly out of the insert
approximately one (1) inch.
5. Examine the bulb(s) to
determine which bulb(s)
require replacement.
6. unscrew the bulbs counter
clockwise.

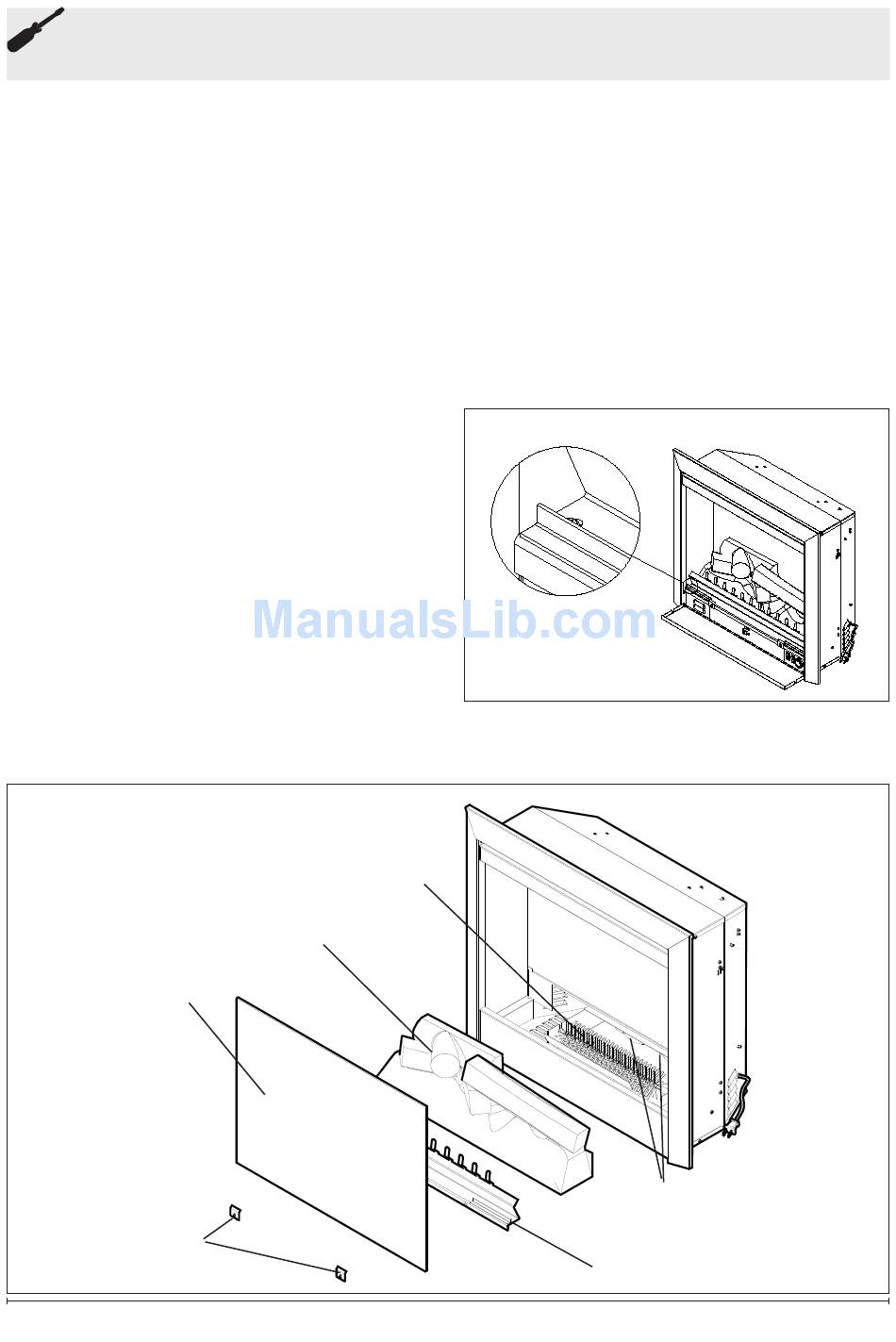

Figure 7
Front
glass
Glass
clips
14
(Figure
(Figure 7).
assembly
Log set
7. Insert new bulbs.
8. slide the light assembly back
into the insert.
9. replace the log set into the
insert.
10. reinstall the log grate.
11. reinstall the front glass.
6).
Figure 6
Light
Light bulbs
Log grate
