Operation

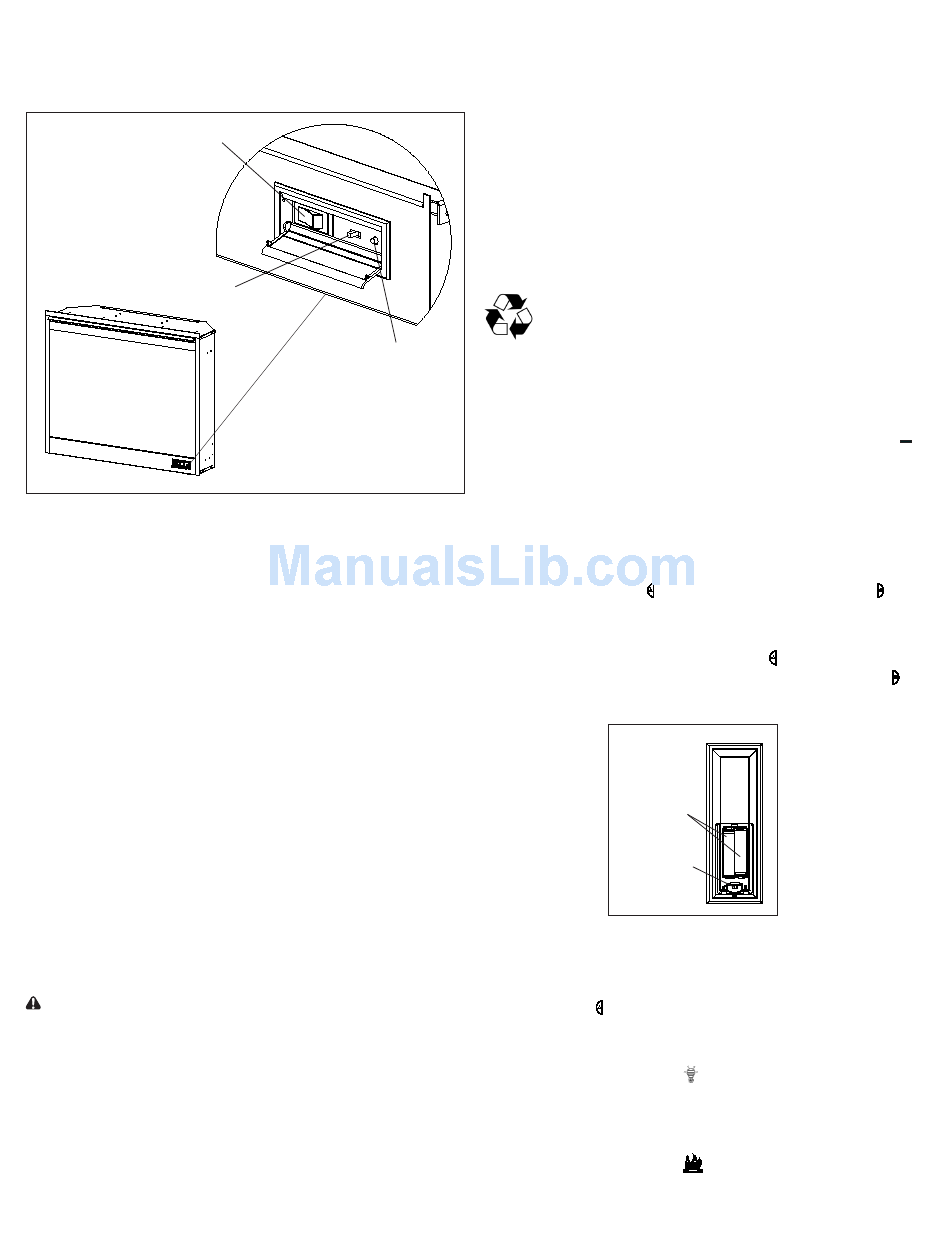

The manual controls for the fireplace are located in the lower
right hand corner (Figure 1).
Figure 1
A. On/Off Switch
Supplies power to the 3-Position Selector Switch.
B. 3-Position Selector Switch
• Remote (right position):
remote control.
• Flame (center position):
• Flame & Heat (left position):
heater are turned on simultaneously. When the manual
control is in the Flame & Heat position the heater does
not run on the remote control operated thermostat.
!
NOTE: When the 3-Position Selector Switch is in the
Flame and Flame & Heat positions, the fireplace unit will
not operate with the remote control.
C. Initialization Button
Used to synchronize the supplied remote control with the
fireplace.
Resetting the Temperature Cutoff Switch
Should the heater overheat, an automatic switch will turn the
heater off and it will not come back on without being reset.
The temperature cutoff switch can be reset by unplugging the
unit, waiting five (5) minutes and plugging the unit back
CAUTION: If you need to continuously reset the heater,
unplug the unit and call Dimplex North America Limited
at 1-888-346-7539. Please have your model and serial
number ready when calling.
Remote Control
The remote control has a range of approximately 50 feet
(15.25 m), it does not have to be pointed at the fireplace
and can pass through most obstacles (including walls). It
is supplied with 243 independent frequencies to prevent
interference with other units.
A
B
The unit is operated with the
The flame effect is turned on.
The flame effect and
Battery Installation/Replacement
1. Depress tab on the battery cover on the back of the
remote control and remove battery cover.
2. Install/replace two (2) AAA batteries into the remote
control.
3. Ensure Child Lock is in the "unlocked" position (Figure 2).
4. Replace the battery cover.
!
NOTE: When the "BAT" symbol is present on the
remote control it is recommended to replace the batteries
promptly, to maintain full functionality of the remote/
fireplace. The remote control has a battery backup time of
only several hours.
Battery must be recycled or disposed of properly.
Check with your Local Authority or Retailer for
recycling advice in your area.
C
Remote Control Initialization
1. Plug cord into a 120 Volt wall outlet.
2. Ensure the On/Off Switch located in the switch box on
the fireplace in the lower right hand corner is in the On
position.
3. Set the Three Position Manual Control (Figure 1B) to the
Remote position (right position).
4. Press and hold the Initialization Button on the unit
(Figure 1C).
5. While holding the Initialization Button, press the Flame/
Heat On/Off button or the Purifire™ On/Off button on
the remote control.
6. Release the Initialization Button on the unit.
7. Press the Flame/Heat On/Off button
Heat function on or press the Purifire™ On/Off button to
turn the Purifire™ function
Remote Control Functions
(All letters are in reference to Figure 3)
in.
B. Set Temperature
Press H button to turn fireplace on. Press J to raise
thermostat, or I to lower the thermostat. Press both J and I to
change °F to °C.
C. Light Dimmer Control
While the fireplace is running, repeatedly press the L or K
button to increase or decrease the brightness of the upper
lights.
D. Flame Speed Control
While the fireplace is running, press the N button to increase
3
to turn the Flame/
on.
Figure 2
Batteries
Child Lock
