Maintenance

WARNINg: Disconnect power before attempting any
maintenance or cleaning to reduce the risk of fire, electric
shock or damage to persons.
Light Bulb Replacement
CAUTION: Allow at least five (5) minutes for light
bulbs and heater to cool off before touching bulbs to avoid
accidental burning of skin.
Light bulbs need to be replaced when you notice a dark
section of the flame. There are three (3)
which generate the flames and embers, and two (2) bulbs
above the log that illuminate the log
Helpful Hints
It is a good idea to replace all light bulbs at one time if they
are close to the end of their rated life. Group replacement
will reduce the number of times you need to open the unit to
replace light bulbs. Care must be taken when removing the
Log Set as the Log Set contains LED's and wires.
Lower Light Bulb Requirements
Quantity of three (3) clear chandelier or candelabra bulbs
with an E-12 (small) socket base, 60 Watt rating. Example:
GE 60BC or Philips 60CTC.
Do not exceed 60 Watts per bulb.
To access the lower light bulb area:
1. Slide fireplace out of mantel.
2. Remove four (4) Phillips screws from right side of trim
(Figure 5).
3. Remove trim.
4. Slide glass to right side of fireplace to remove (Figure 5).
5. Pull the front edge of the plastic Log Set or plastic grate
up and forward until the rear tab releases from the ledge
located at the bottom of the Partially Reflective Glass
(Figure 6).
!
IMPORTANT: Only handle the Log Set Assembly by the
Ember Bed or plastic grate.
!
NOTE: Log Set Assembly fits tightly into firebox, some
force may be necessary to remove.
6. Set Log Set Assembly in front of fireplace.
7. Unscrew bulbs counter clockwise.
8. Insert new bulbs and screw in clockwise.

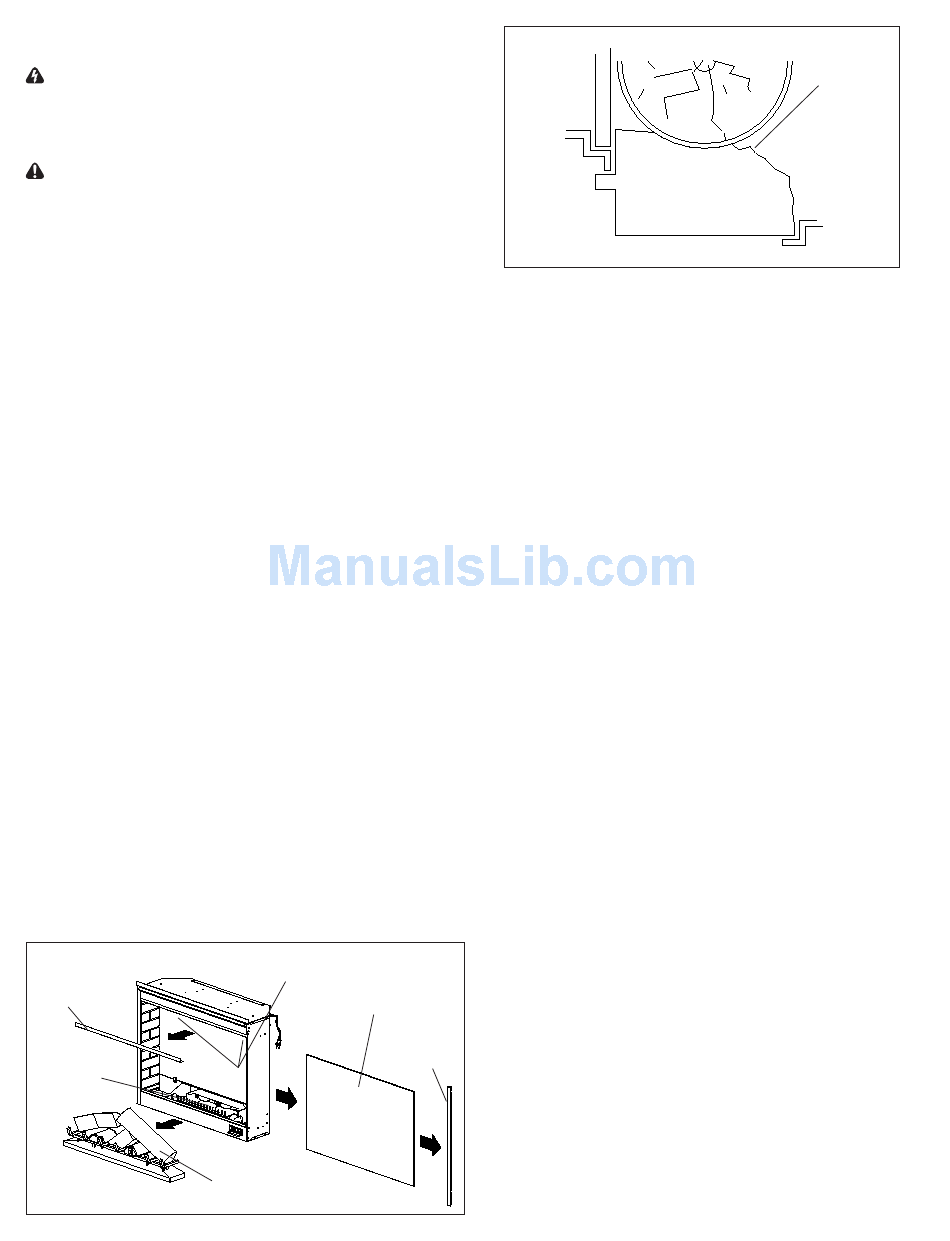

Figure 5
Upper Light
Bracket
Lower Bulbs
under the Log Set,
exterior.
Upper Bulbs
Front Glass
Log Set Assembly
Figure 6
Back
Ledge
Rear
Tab
9. Install the Log Set Assembly by placing the front, bottom
edge of the Ember Bed in the track behind the control
panel. Once in place, push down on the back edge of the
Ember Bed until the rear tab snaps into place under the
Partially Reflective Glass (Figure 6).
!
NOTE: Ensure the Log Set Assembly is installed tightly
under the back ledge to prevent light leakage.
10. Slide front glass back into position and attach trim.
Upper Light Bulb Requirements
Quantity of two (2) clear chandelier or candelabra bulbs with
an E-12 (small) socket base, 15 Watt rating.
Do not exceed 15 Watts per bulb.
To access the upper light bulb area:
1. Slide fireplace out of mantel.
2. Remove four (4) Phillips screws from right side of trim
(Figure 5).
3. Remove trim.
4. Slide glass to the right side of the fireplace to remove
(Figure 5).
5. Remove Upper Light Bracket (Figure 5).
6. Upper bulbs are located in the upper left and upper right
corners of the fireplace.
7. Unscrew bulbs counter clockwise.
8. Insert new bulbs and screw in clockwise.
9. Re-install Upper Light Bracket.
10. Slide front glass back into position and attach trim.
Trim
5
Log
Ember Bed
Front
Edge
Side Section
