Visonic AMBER SELECT Quick Start Manual

AMBER SELECT /
AMBER SELECT

Setting Up Your System

To set up your system, follow the steps below. For more
detailed information, see the AMBER SELECT / AMBER
X
SELECT User Guide.
Select a central location in your home for the AMBER
SELECT / AMBER SELECT
your time. The AMBER SELECT / AMBER SELECT
can be placed on a table, desk, or counter. It also can
be mounted on the wall.

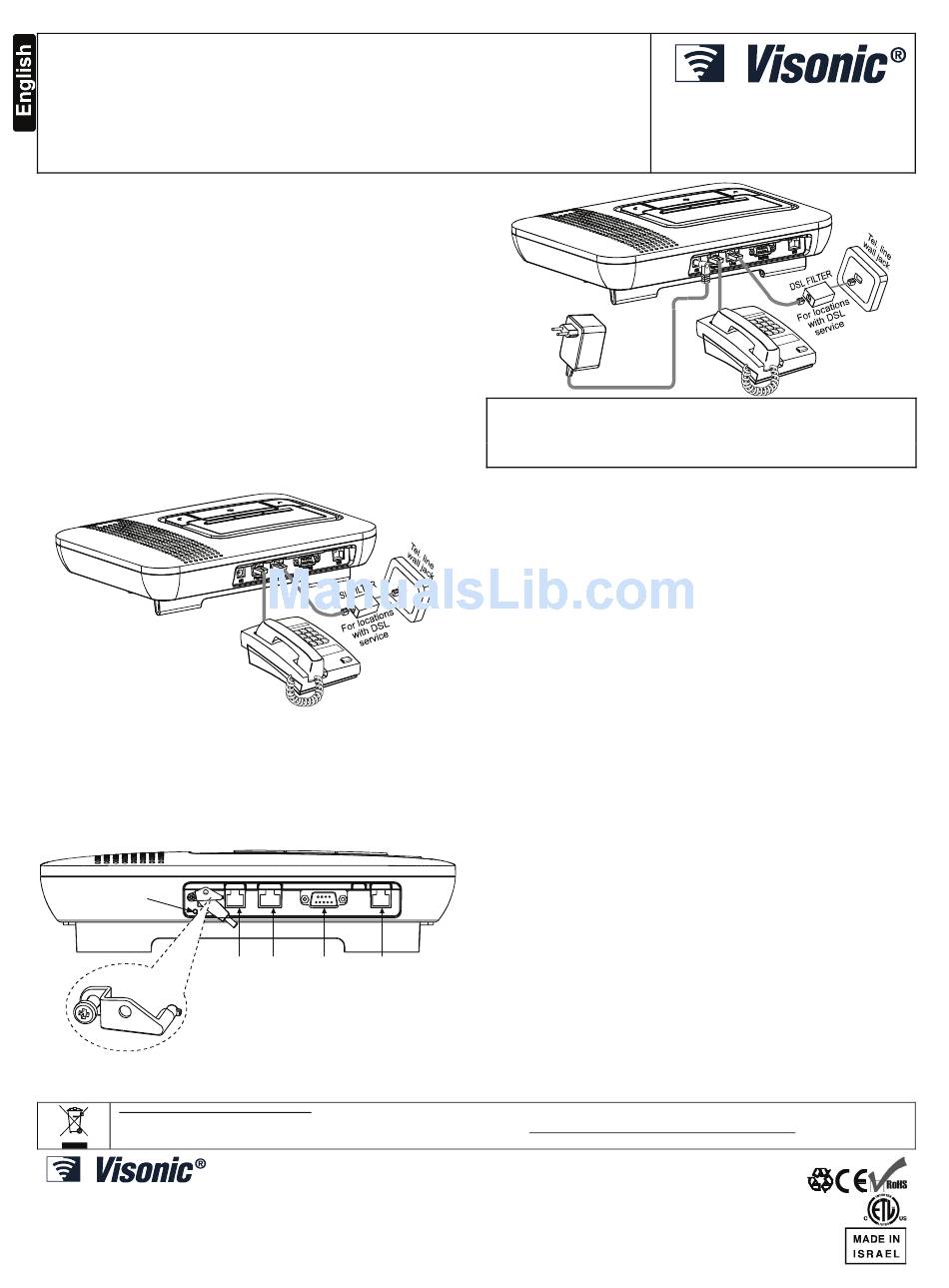

1. Connect the Base Unit to your
Telephone Line:
Connect the wide end (RJ-45) of the phone cord to the
"Wall Jack" on your AMBER SELECT / AMBER
X
SELECT . Plug the narrow end (RJ-11) of that phone
cord into the phone jack on your wall.
Note: Be aware of other phone line services such as
DSL. If DSL service is present on the phone line, you
must install a filter. For more information regarding
the DSL filter, contact the service provider.
INSERT THE SAFETY CATCH TAB HORIZONTALLY AS SHOWN.
TURN THE LEFT SIDE OF THE CATCH COUNTER-CLOCKWISE
UNITL IT FACES THE SCREW HOLE AND THEN FASTEN THE
SAFETY CATCH WITH THE SCREW
SCREW
HOLE
Note: The safety catch is optional, can be purchased
upon request.
