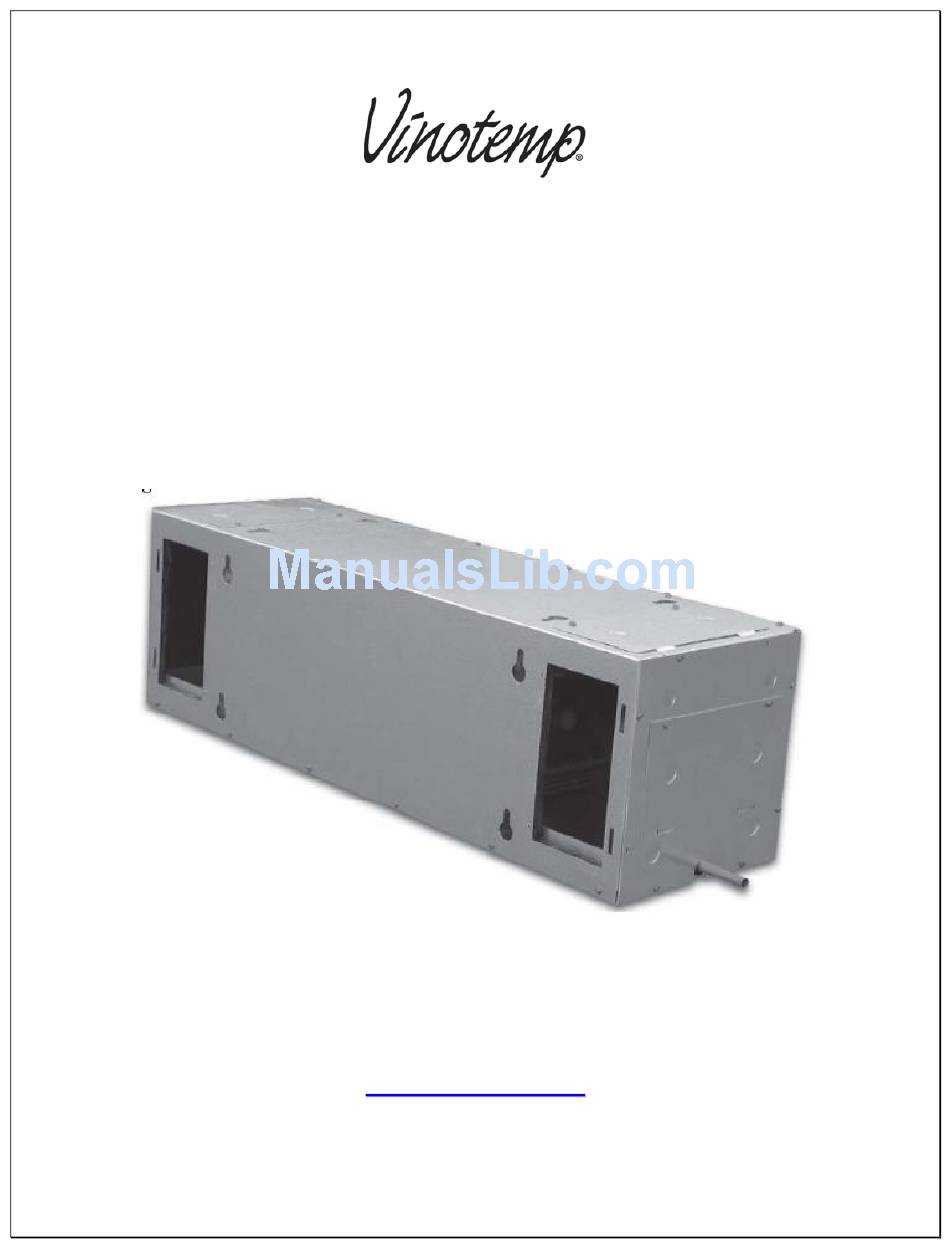

WINE-MATE Split System
Installation, Operation & Care Manual
V
i
n
o
t
e
V
i
n
o
t
e
READ AND SAVE THESE INSTRUCTIONS
VINO-2500SSR
VINO-4500SSR
m
p
I
n
t
e
r
n
a
t
i
o
m
p
I
n
t
e
r
n
a
t
i
o
www.winemate.com
www.winemate.com
n
a
l
C
o
r
p
.
n
a
l
C
o
r
p
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WINE-MATE VINO-2500SSR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vinotemp WINE-MATE VINO-2500SSR

Summary of Contents for Vinotemp WINE-MATE VINO-2500SSR

  • Page 1 WINE-MATE Split System Installation, Operation & Care Manual VINO-2500SSR VINO-4500SSR www.winemate.com www.winemate.com READ AND SAVE THESE INSTRUCTIONS...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information…..........2 Feature Description…………………………….……………..3 Installer’s Instruction…………….…..….……..……………..5 Temperature Control……………………..…………………...9 Care Guide…………………………………………………….14 User’ Troubleshooting…….………………………………...15 Customer Support……………………………………………18 Warranty……………………………………………………….19 - 1 -...

  • Page 3: Important Safety Information

    Important Safety Information • DO NOT USE A GROUND FAULT INTERRUPTER (GFI). • A DEDICATED 20 AMP CIRCUIT IS HIGHLY RECOMMENDED. - 2 -...

  • Page 4: Feature Description

    Feature Description • Wine-Mate split cooling system is designed and used to provide a cold ° temperature between 50~65 F for a properly insulated wine room at a normal environment. • The wine room will maintain humidity of 50~70% RH even when the environment becomes dry and humid.
  • Page 5 Fig. 1.1 WM25-45SFCR Evaporator Unit Fig. 1.2 WM25-45SCU Condensing Unit - 4 -...

  • Page 6: Installer's Instruction

    WINE-MATE split system is shipped as components and is ready for use only after a certified refrigeration technician has properly installed and tested the system. Proper installation is critical. Vinotemp can only warrant the quality of the components. The installation and proper operation of the system must be warranted by the installer.
  • Page 7 • Supply and return air flow from the evaporator unit should be unobstructed for at least 1 foot. 3. Refrigeration Piping and Charging • The evaporator’s constant pressure expansion valve is set around 38- ° F at factory. This pressure setting gives a dew point to maintain the humidity for storing wine •...
  • Page 8 5. Valve Operation SPINDLE FRONT POSITION SPINDLE BACK POSITION SPINDLE MIDDLE POSITION Fig. 2.1 Valve Operation 6. Electrical Wiring Fig. 2.2 VINO2500-4500SSR Electrical Wiring Diagram (952884) - 7 -...
  • Page 9 Fig. 2.3 VINO2500-4500SSR Electrical Wiring Diagram (XR30CX) 7. Condensing Unit Troubleshooting Unit not running a. Incorrect power supply a. Check for proper voltage b. Incorrect or loose wirings b. Check all wirings and connections c. Failed components c. Check start relay, start capacitor, overload protector, compressor.

  • Page 10: Temperature Control

    Temperature Control 1. Temperature Setting • Set the temperature at 55 ° for the optimum aging of wine • On initial start-up, the time required to reach the desired temperature will vary, depending on the quantity of bottles, temperature setting and surrounding temperature.
  • Page 11 1) Set Point Rotate the circular selector in correspondence with the arrow placed nearby. The selector represents -33°F to 50°F (-35°C to +10°C) for low temperature models, and 14°F to 68°F (-10°C to +20°C) for medium temperature models. “10” is the coldest setting, “1”...
  • Page 12 3. Use of the XR30CX controller Fig. 3.1 Digital Controller 1) Display During normal operating conditions, the display shows the value measured by the air regulation probe. In case of active alarm, the temperature flashes alternately to the code alarm. 1.1 LED Functions 1.2 Front Panel Commands - 11 -...
  • Page 13 2) Alarm Signals 2.1 Code Description 2.2 Alarm Recovery Probe alarms P1”, start a few seconds after the fault in the related probe; they automatically stop a few seconds after the probe restarts normal operation. Check connections before replacing the probe. Temperature alarms “HA”, “LA” automatically stops as soon as the temperature returns to normal value.
  • Page 14 2. The value of the set point will be displayed and the “°C” or “°F” LED starts blinking; 3. To change the Set value, push the o or n arrows within 10s. 4. To memorize the new set point value, push the SET key again or wait 10s. 4) Manual Defrost Push the DEF key for more than 2 seconds and a manual defrost will start.

  • Page 15: Care Guide

    Care Guide In general, always unplug system or disconnect power while doing care. 1. Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Unplug the system or disconnect power. •...

  • Page 16: User' Troubleshooting

    User’s Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Troubleshooting Chart Complaint Possible Causes Response 1. Unit not running No power Check power at receptacle & fuses k.
  • Page 17 4. Unit running too long or continually a. Improper room insulation & seal a. Check for insulation, gasket and door opening b. Exhaust restricted b. Leave minimum 3 feet clearance for the exhaust side and leave minimum 1 foot clearance for the fresh air intake side c.
  • Page 18 a. Mounting area not firm a. Add support to improve installation b. Loose parts b. Check fan blades, bearings, cabinet washers, tubing contact and loose screws. c. Compressor overloaded due to high c. Check for airflow blockage ambient temperatures or airflow restriction d.

  • Page 19: Customer Support

    Customer Support If you still have problems, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 18 -...

  • Page 20: Warranty

    BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
  • Page 21 VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
