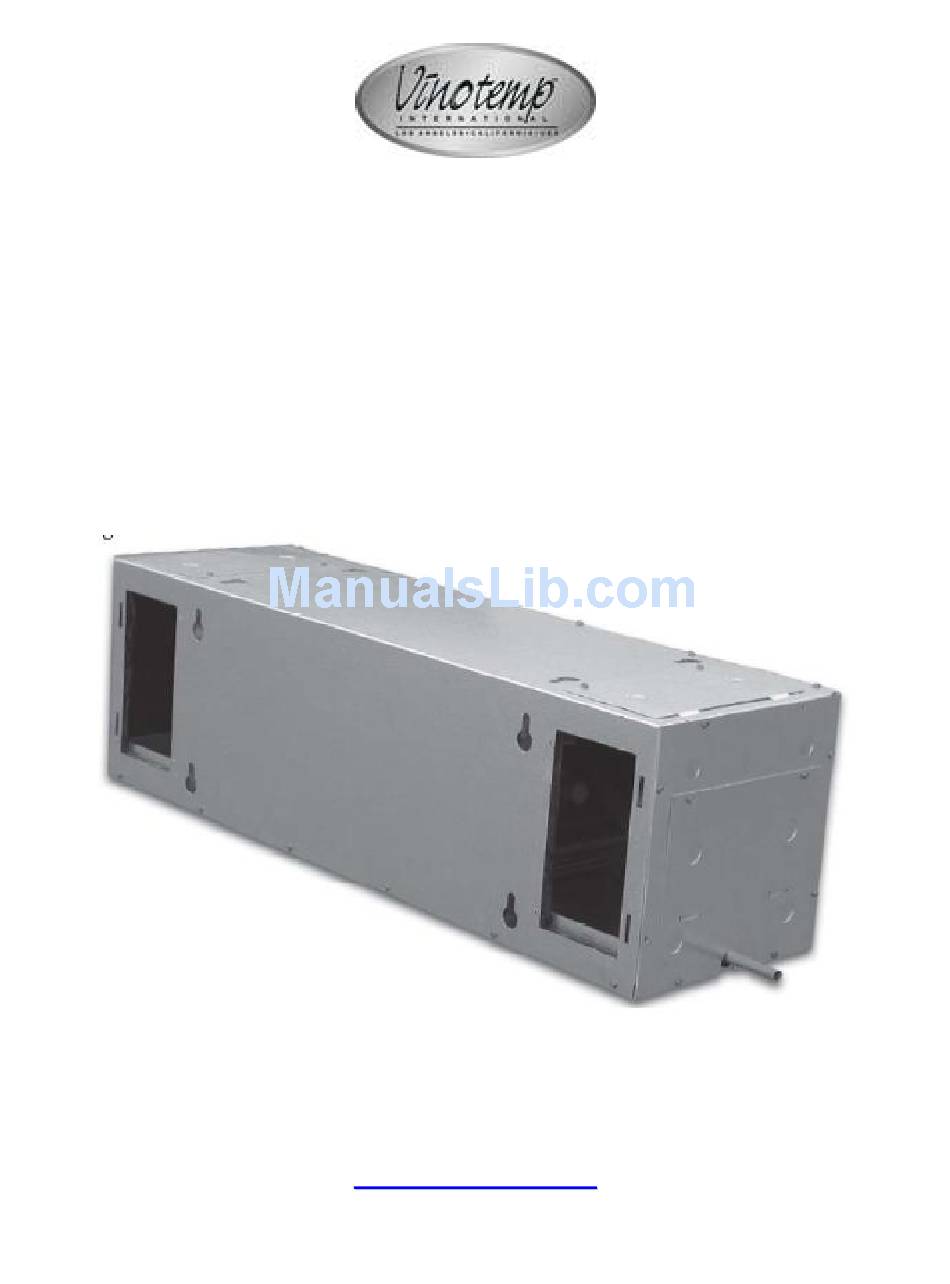

  • Page 1 WINEMATE Split System Installation, Operation & Care Manual VINO2500SSR VINO4500SSR...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information…...2 Feature Description…………………………….……………..3 Installation Instruction………………………………………..5 Use and Temperature Control……………………………….7 Care Guide………………………………………………………9 Troubleshooting……………………………………………..10 Customer Support……………………………………………12 Warranty……………………………………………………….13 - 1 -...

  • Page 3: Important Safety Information

    Important Safety Information • DO NOT USE A GROUND FAULT INTERRUPTER (GFI). • A DEDICATED 20 AMPCIRCUIT IS HIGHLY RECOMMENDED. - 2 -...

  • Page 4: Feature Description

    • WineMate split cooling system is designed and used to provide a stable temperature between 52~62 environment. • The refrigerated space will maintain humidity of 50~70% RH even when the environment becomes dry and humid. • These temperatures and humilities are optimized for long term storage of wine, fur and tobacco.
  • Page 5 Evaporator Unit Condensing Unit - 4 -...

  • Page 6: Installation Instruction

    Installation Instruction Federal law requires that WINEMATE split cooling systems be installed by an EPA certified refrigeration technician. 1. Location • Place the condensing unit in a properly ventilated location. If it is not, heat exhausted by the condensing unit will build up and the cooling system will not operate properly.
  • Page 7 The condensing unit and unit cooler are connected by a liquid line and an insulated suction line that are supplied by the installer. These lines must be properly sized for the distance between the two units. After the units and the lines are installed, the system must be pressure tested.

  • Page 8: Use And Temperature Control

    Use & Temperature Control 1. Temperature Setting • Set the temperature at 55 • On initial start-up, the time required to reach the desired temperature will vary, depending on the quantity of bottles, temperature setting and surrounding temperature. • Allow 24 hours to stabilize the temperature for each new temperature setting operation 2.
  • Page 9 1) Set Point Rotate the circular selector in correspondence with the arrow placed nearby. The selector represents -33°F to 50°F (-35°C to +10°C) for low temperature models, and 14°F to 68°F (-10°C to +20°C) for medium temperature models. “10” is the coldest setting, “1”...

  • Page 10: Care Guide

    In general, always unplug system or disconnect power while doing care. 1. Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Unplug the system or disconnect power. • Use a vacuum cleaner with an extended attachment to clean the coil when it is dusty or dirty.

  • Page 11: Troubleshooting

    This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes 1. Unit not running a. Power cord unplugged b. No power to unit c. Temperature setting high d.
  • Page 12 g. Low voltage h. Operating 60 Hz unit at 50Hz Sealed system problem Undercharge or overcharge 7. House circuit tripping a. Incorrect fuse or breaker b. Incorrect wirings c. Failed components 8. Noisy operation a. Mounting area not firm b. Loose parts c.

  • Page 13: Customer Support

    Customer Support If you still have problems, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 12 -...

  • Page 14: Warranty

    BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
