TABLE OF CONTENTS Important Safety Information…...2 Features & Specifications.…………………….……………..3 Cellar Construction.…………………………….……………..6 Installer’s Instruction…………….…..….……..……………..8 Electrical Wiring...……………..…..….……..………………15 Temperature Control & Humidity Adjustment.………….19 Care Guide…………………………………………………….22 User’ Troubleshooting…….………………………………...23 Customer Support……………………………………………26 Warranty……………………………………………………….27 - 1 -...
Important Safety Information WARNING: • DO NOT USE A GROUND FAULT INTERRUPTER (GFI). • A DEDICATED 20 OR 30 AMP CIRCUIT IS REQUIRED (2500-4500SSR OR 6500SSR). - 2 -...
• Wine-Mate split cooling systems VINO2500-6500SSR are designed and used to provide a cold temperature between 50~65 insulated wine room at a normal environment. • The wine room will maintain humidity of 50~70% RH even when the environment becomes dry and humid. These temperatures and humilities are optimized for long term storage of wine.
Page 5

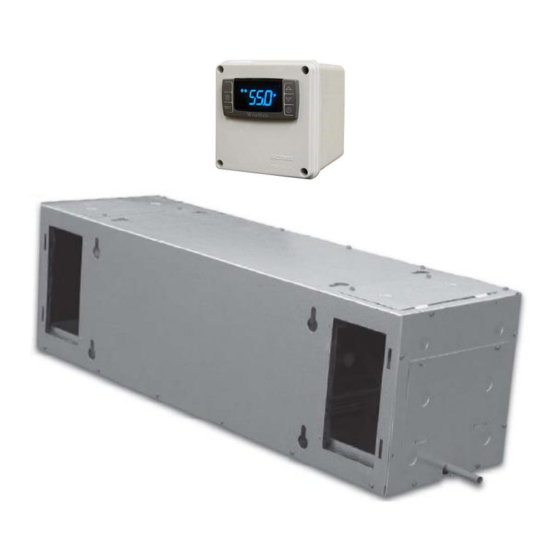

NOTE: LEAVE MINIMUM 3” CLEARANCE FOR ELECTRICAL WIRING AND REFRIGERATION PIPING. Parts included: Condensing Unit (discharge and suction valves installed) + Liquid Filter + Liquid Indicator Evaporator Unit (liquid line solenoid valve and expansion valve installed) Temperature Controller + Air Sensor Fig.
Page 6
Fig. 2 WM250-450SCU Condensing Unit Fig. 3 WM650SCU Condensing Unit - 5 -...
Cellar Construction This is only a guide and shall be considered as minimum requirements. All interior walls and floors shall have a vapor barrier and a minimum of R11 insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum of R19 insulation.
WINE-MATE split system is shipped as components and is ready for use only after a certified refrigeration technician has properly installed, evacuated, charged and tested the system. Proper installation is critical. Vinotemp can only warrant the quality of the components. The installation and proper operation of the system must be warranted by the installer.
Page 10
1. Condensing Unit • Place the condensing units WM250-650SCU in a properly ventilated location. If it is not, heat exhausted by the condensing unit will build up and the cooling system will not operate properly. • Condensing unit shall be elevated to avoid possible flooding and shaded from direct sun.
Page 11
1 - Process & Manometer; 2 – Receiver Discharge or Compressor Suction 3 – Liquid Line or Suction Line; 4 - Pressure Control 3. Evaporator Unit • The WM25-45SFCR evaporator units shall be installed for rack mount with the air supply from the left front, top or side and air return on the right front, top or side.
Page 12
2) Use inverted siphons to prevent liquid from flooding back to the compressor and aid oil returning to the compressor. 3) Both discharge and suction valves must be in the middle positions during evacuating and charging. 4) Charge the system after pipe brazing, leak testing and evacuating. Liquid must always be charged into the hide side.
Page 13
13) Both discharge and suction valves must be in the back positions before disconnecting evacuating and pressure gauges. The line sizes and refrigerant charges are listed as follows. REFRIGERATION MODEL LINES VINO- <=50 FT 2500SSR VINO- <= 50 FT 4500SSR VINO- <= 50 FT 6500SSR...
Page 14
B. PS2 Dual Control Fig. 12 Adjustable Pressure Control Use of the encapsulated pressure control (if applicable) Fixed suction pressure setting: Cut in = 32 psig; Cut out = 10 psig Fig. 13 Fixed Pressure Control Use of the condenser fan control (if applicable for low ambient kit) Head pressure setting: Cut in=170 psig;...
Page 15
10. Pressure, Superheat and Subcooling Readings CAUTION: THE VALVES MUST BE IN THE MIDDLE POSITIONS TO READ PROPERLY. Complaint a. High suction pressure and low head pressure Zero superheat and zero subcooling b. High suction pressure and low head pressure Low superheat and low subcooling c.
CAUTION: • USE MINIMUM 14 GAUGE WIRES FOR POWER LINES. • IF EQUIPPED WITH LOW AMBIENT CONDITION KIT, USE LOW AMBIENT TEMPERATURE WIRING DIAGRAMS. BEFORE POWER THE CONDENSING UNIT. ONLY TURN ON THE COMPRESSOR AFTER THE CONDENSING UNIT HAS BEEN POWERED FOR 24 HOURS.
Temperature Control & Humidity Adjustment 1. Temperature Setting • Set the temperature at 55 • On initial start-up, the time required to reach the desired temperature will vary, depending on the quantity of bottles, temperature setting and surrounding temperature. • Allow 24 hours to stabilize the temperature for each new temperature setting operation 1.
Page 21
2.1 LED Functions MODE Flashing Flashing Flashing 3) Alarm Signals 3.1 Code Description MESSAGE CAUSE Temperature probe faulty High temperature alarm Low temperature alarm External alarm 3.2 Alarm Recovery Probe alarms P1”, start a few seconds after the fault in the related probe; they automatically stop a few seconds after the probe restarts normal operation.
Page 22
5) Parameter Programming 1. Press the SET + keys for 3 sec until the “°C” or “°F” LED starts blinking, then release the keys. 2. Press again the SET + displayed, then release the keys. The first parameter Hy will be displayed. 3.
In general, always unplug system or disconnect power while doing care. 1. Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Unplug the system or disconnect power. • Use a vacuum cleaner with an extended attachment to clean the coil when it is dusty or dirty.
User’s Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive. Complaint Possible Causes a. No power 1.Unit not b. Power cord unplugged running c. Setting higher than ambient temperature d.
Page 25
running continually e. Malfunctioning fans Improper condenser airflow g. Dirty Condenser h. Iced evaporator Sealed system problem Undercharge or overcharge a. Improper room insulation & seal 6.Unit running too long b. Exhaust restricted c. Room too large d. Ambient temperature extremely high e.
Page 26
10.Noisy a. Mounting area not firm b. Loose parts operation c. Compressor overloaded due to high ambient temperatures or airflow restriction d. Malfunctioning components a. Add support to improve installation b. Check fans, cabinet washers, tubing contact and loose screws. c.
Customer Support If you still have problems, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 26 -...
BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
Page 29
VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
