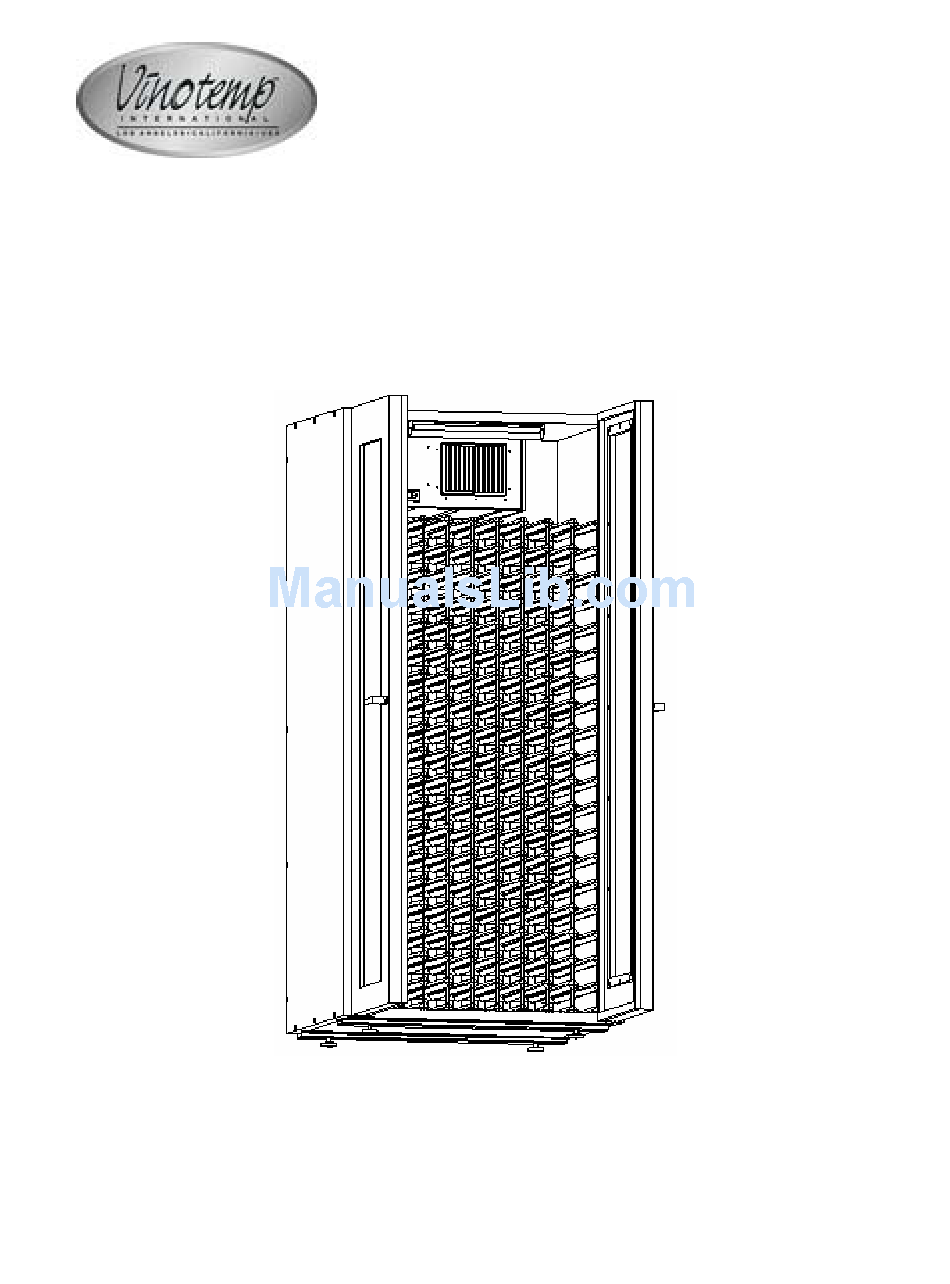

  • Page 1 Wood Wine Cellar Owner’s Manual Model: For General Use...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Welcome...2 Important Safety Information…...3 Features Description…………………………….……………4 Installation Instruction………………………………………..6 Cellar Inspection……………………………………………………..6 Cellar Location…………………………………………………….…6 Level Adjusting………………………………………………………6 Electrical Cord……………………………………………………….6 Winemate Installation……………………………………………….7 Cellar Assembly……………………………………………………..8 Use and Temperature Control………………………………9 Bottle Load……………………………………………………………9 Temperature Setting………………………………………………..10 Normal Sounds……………………………………………………...11 Maintenance…………………………………………………..12 Troubleshooting……………………………………………13 Customer Support……………………………………………14 Warranty……………………………………………………….15...
  • Page 3: Welcome

    Thank you for purchasing our wood wine cellars. Our goal at Vinotemp is to produce the finest quality wine cellars in the industry. Each of us here at Vinotemp plays an important role in the development of your wine cellar. Your unit has been made for you based on the information we have received.
  • Page 4: Important Safety Information

    Important Safety Information • DO NOT PLUG IN THE CELLAR UNTIL 24 HOURS AFTER DELIVERY. • DO NOT USE A GROUND FAULT INTERRUPTER (GFI). • A DEDICATED 15 AMPCIRCUIT IS HIGHLY RECOMMENDED. • KEEP CHILDREN OUT OF ENTERING THE WINE CELLAR.
  • Page 5: Features Description

    Feature Description • Vinotemp wood wine cellar is designed and used to provide a stable temperature between 52~62 • The wine cellar will keep a desired humidity of 50~70% RH even when the environment becomes dry and humid. • These temperatures and humilities are optimized for long term wine storage.
  • Page 6 The dimension and capacity are specified as follows: Model VINO-100WC VINO-110FW 2 French Doors VINO-114 VINO-114G VINO-200WC VINO-230 VINO-230G VINO-250 VINO-250G VINO-296 VINO-296G VINO-300WC VINO-400EC VINO-400EC3D VINO-400CRED VINO-400CREDG VINO-440 VINO-440TDFT 2 Furniture Trim Doors VINO-440TDG VINO-440TDBON 2 Beveled Doors, Cornice...
  • Page 7: Installation Instruction

    Installation Instruction 1. Cellar Inspection • Note any damage by yourself and the installation personals. • Claim the damage with 5 days after receipt. 2. Cellar Location • Place the wine cellar in a properly ventilated location. If it is not, heat exhausted by the unit will build up and the unit will not operate properly.
  • Page 8: Winemate Installation

    5. Winemate Installation • Unplug the wine cellar or disconnect power. • Unplug the light from receptacle. • Unscrew the 2 screws and remove the light. • Unplug the Winemate cooling unit from receptacle. • Use 7/16” wrench to unscrew the 2 screws and remove the 2 brackets •...
  • Page 9: Cellar Assembly

    6. Cellar Disassembly • Use 4 mm hex wrench, ¼” nut driver and Phillips head screw driver to unscrew and remove all the screws and nuts from panels and feet.
  • Page 10: Use And Temperature Control

    Use & Temperature Control 1. Bottle Load • Unless otherwise modified, the standard rack cubicle is 3 3/8”X3 3/8” to accommodate the traditional cabernets standard 750 ml Burgundy or Bordeaux bottles. • Customize 3 ¾” for French Burgundy, 4” for Dom Perignon, 4 ½” for Magnums.
  • Page 11 1) Display During normal working conditions, the display shows the value measured by the air regulation probe or the second probe (parameter /4). In case of active alarm, the temperature flashes alternately to the code alarm. 2) Alarm Code Description E0: fault air regulation probe E1: evaporator product/food probe fault digital input alarm IA: immediate external alarm (A4 and A7 parameters)
  • Page 12: Normal Sounds

    6) Access and Modification of the Frequent Parameters (F TYPE) 1) Press the button 6 for more than 5 seconds (in case of alarm, first silence the buzzer) until the display displays PS. 2) Press button 5 or button 7 to show the parameter whose value has to be changed;...
  • Page 13: Maintenance

    1. Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned as often as every 6 months. • Coil is on the back of the wine cellar. • Unplug the cellar or disconnect power. • Use a vacuum cleaner with an extended attachment to clean the coil when it is dusty or dirty.
  • Page 14: Troubleshooting

    Complaint Possible Causes 1. Unit not running a. Power cord unplugged b. No power to unit c. Temperature setting high d. DOWN button lighting e. UP button lighting 2. Temperature too high or unit running too long a. Surrounding temperature high b.
  • Page 15: Customer Support

    Customer Support If you still have problems, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com...
  • Page 16: Warranty

    Warranty TERMS AND CONDITIONS OF SALE: Vinotemp International (“Seller”) and the person or entity that acquires these goods from Seller (“Purchaser”) hereby fully agrees to the following terms and conditions of the sale: 1. All prices are FOB — Place of Shipment — Seller’s premises, unless otherwise noted.
  • Page 17 charges for items repaired under warranty with in 12 (twelve) months from date of sale. Since the natural variation in texture, density, grain, color, tone and shade of wood is unavoidable; Seller does not guarantee the texture, color, tone or shade of the wood: nor does seller guarantee the colorfastness of wood or against peeling, chipping, cracking or scratching.
