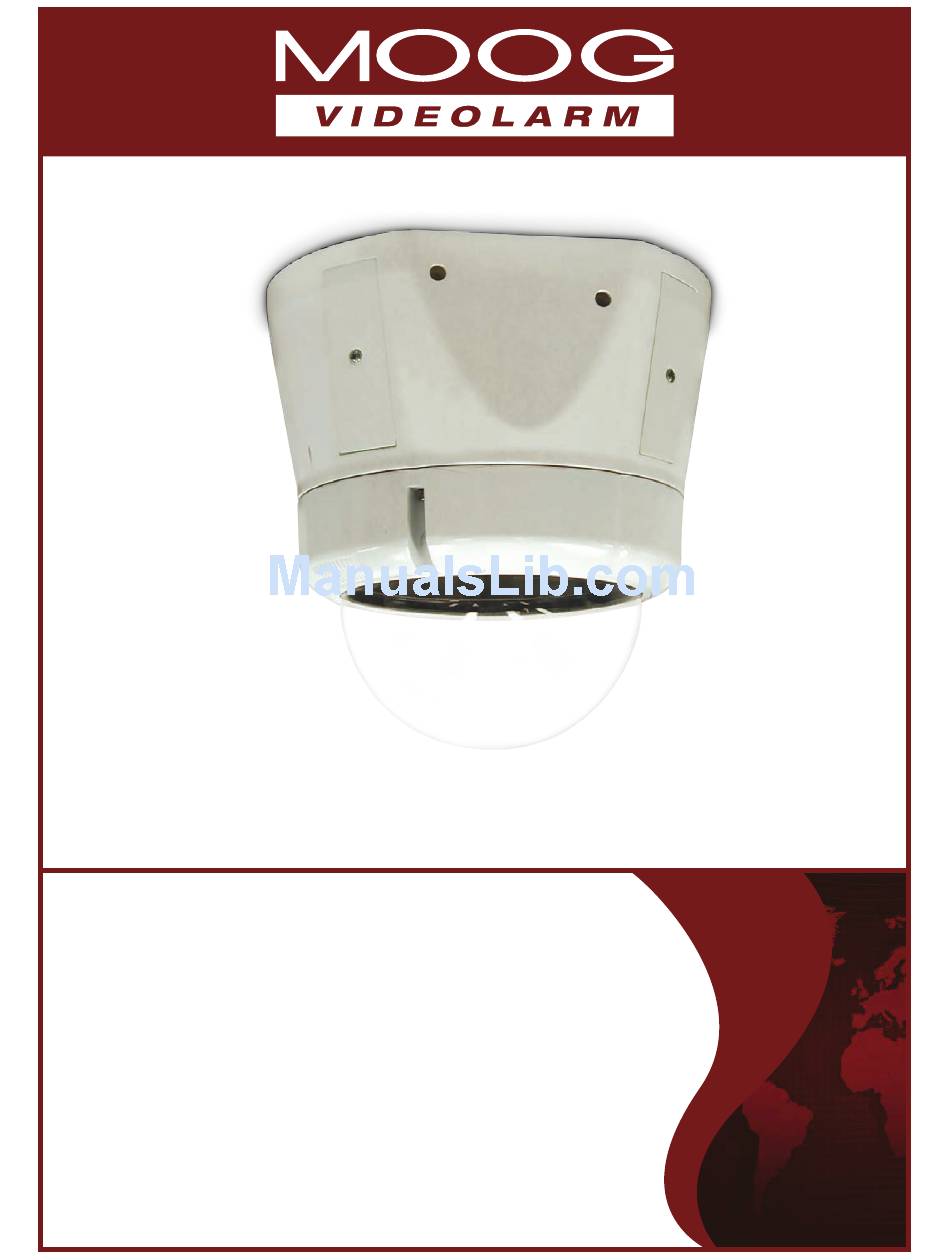

S M 7 C N - 3
SView Outdoor Vandal-Resistant Surface Mount Dome
Installation and Operation Instructions for the following models:
SM7CN-3 IP Network Ready 7" Outdoor Vandal-Resistant Surface Mount PTZ Camera System
- can be mounted facing down or facing towards the sky - with 23x zoom Day/Night
camera, wall mount, MPEG-4 and MJPEG video compression, full D1. Clear dome, with
24Vac input, heater/ blower
SM7CS-3
(Analog version)
IP Network Ready 7" Outdoor Vandal-Resistant Surface Mount PTZ Camera System
- can be mounted facing down or facing towards the sky - with 23x zoom Day/ Night
camera, wall mount, MPEG-4 and MJPEG video compression, full D1. Clear dome, with
24Vac input, heater/ blower
Before attempting to connect or operate this product, please read these instructions completely.
To be used with the 81-IN5409 Instruction Manual.
www.videolarm.com
81-IN5385
01-25-2012
Advertisement
Table of Contents
Related Manuals for Moog Videolarm SM7CN-3
Summary of Contents for Moog Videolarm SM7CN-3
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved S M 7 C N - 3 SView Outdoor Vandal-Resistant Surface Mount Dome www.videolarm.com Installation and Operation Instructions for the following models: SM7CN-3 IP Network Ready 7” Outdoor Vandal-Resistant Surface Mount PTZ Camera System - can be mounted facing down or facing towards the sky - with 23x zoom Day/Night camera, wall mount, MPEG-4 and MJPEG video compression, full D1. Clear dome, with 24Vac input, heater/ blower SM7CS-3 (Analog version) IP Network Ready 7” Outdoor Vandal-Resistant Surface Mount PTZ Camera System - can be mounted facing down or facing towards the sky - with 23x zoom Day/ Night camera, wall mount, MPEG-4 and MJPEG video compression, full D1. Clear dome, with...
- Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK).
- Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Specifications
Electrical Specifications Contents of Box SM7CN-9 SM7CS-9 Power 24VAC Class 2 Only 24 VAC 80 Watts Accessories: Heater: 50 Watts, Blower: 2 Watt Camera Power: (See Camera Specifications): 28 Watts Max Tools Required: .100” Flat Head Screwdriver Phillips Head Screwdriver English 24 VAC 80 Vatios... -
Page 5: Wall Mounting
Wall Wall Mounting Mounting WALL Use teflon tape WALL MOUNT Mount only to suitable material such as brick, Use Teflon Tape (included) to seal conduit plugs. concrete, wood, etc. (Wall mount sold separately) • Monte solamente al material conveniente tal como ladrillo, •... -
Page 6: Surface Mounting
Surface Surface Mounting Mounting Remove the (4) side plates . Mounting Surface Securely mount housing to mounting surface. Replace should be of suitable material such as brick, side plates when complete. concrete, wood etc. • Con seguridad montaje que contiene a la superficie de •... - Page 7 RJ45 24VAC POWER Camera Max 28 Watts Camera Orange Heater/Blower Yellow 52 Watts Heater/Blower Green Alarm 1 Blue Alarm 2 Violet Alarm 3 Gray Common White Make the appropriate male and female connec- The beam angle may be adjusted on the tions.
- Page 8 Green Yellow Accessory Power Camera Power Orange Camera = red & orange wires to terminal Use the rubber seal when mounting housing Heater/Blower = yellow & green wires to terminal. up right. Center the seal over the dome. • Cámara fotográfica = alambres rojos y anaranjados al •...
-
Page 9: Replacement Parts List
• Certifique-se que não há NENHUMA ABERTURA ou BORDA entre a borda do selo e a superfície da abóbada. • Assicurisi che non ci sono LACUNE o BORDI fra il bordo della guarnizione e la superficie della cupola. SM7CN-3 Replacement Parts List Wall Mount WMSM7... -
Page 10: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
