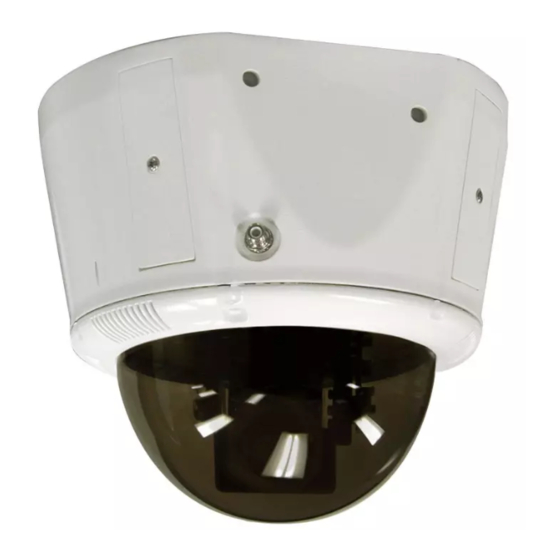

Outdoor vandal-resistant surface mount dome

Advertisement

Quick Links

© 2009, Videolarm, Inc. All Rights Reserved
S M 7 C N - 3
SView™ Outdoor Vandal-Resistant Surface Mount Dome
Installation and Operation Instructions for the following models:
SM7CN-3
IP Network Ready 7" Outdoor Vandal-Resistant Surface
Mount PTZ Camera System - can be mounted facing down or
facing towards the sky - with 36x zoom Day/ Night camera, wall
mount, MPEG-4 and MJPEG video compression, full D1.
Clear dome, with 24Vac input, heater/ blower
SM7CS-3
(Analog version)
IP Network Ready 7" Outdoor Vandal-Resistant Surface Mount
PTZ Camera System - can be mounted facing down or facing
towards the sky - with 36x zoom Day/ Night camera, wall mount,
MPEG-4 and MJPEG video compression, full D1. Clear dome,
with 24Vac input, heater/ blower
Before attempting to connect or operate this product, please read these
instructions completely. To be used with the 81-IN5409 Instruction Manual.
© 2009, Videolarm, Inc. All Rights Reserved
www.videolarm.com
CERTIFIED
81-IN5385
01-15-2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM7TN-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moog Videolarm SM7TN-3

  • Page 1 © 2009, Videolarm, Inc. All Rights Reserved S M 7 C N - 3 SView™ Outdoor Vandal-Resistant Surface Mount Dome Installation and Operation Instructions for the following models: SM7CN-3 IP Network Ready 7” Outdoor Vandal-Resistant Surface Mount PTZ Camera System - can be mounted facing down or facing towards the sky - with 36x zoom Day/ Night camera, wall mount, MPEG-4 and MJPEG video compression, full D1.
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings Follow all instructions. Do not use this apparatus near water. Clean only with damp cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Cable Runs- All cable runs must be within permissible distance.
  • Page 3: Limited Warranty

    1. NOTIFICATIONOF CLAIMS: WARRANTYSERVICE:If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period.
  • Page 4: Electrical Specifications

    Electrical Specifications Power 24VAC Class 2 Only 24 VAC 80 Watts Accessories: Heater: 50 Watts, Blower: 2 Watt Camera Power: (See Camera Specifications): 28 Watts Max Tools Required: .100” Flat Head Screwdriver English 24 VAC 80 Vatios De Accesorios: Calentador: 50 Watts, Blower: 2 Vatio Energía De la Cámara fotográfica De : (Véase Las Especificaciones De la Cámara fotográfica): 28 Vatios Español...
  • Page 5: Wall Mount

    Use Teflon Tape (included) to seal conduit plugs. • Utilice la cinta del Teflon (incluida) para sellar los enchufes del conducto. • Utilisez la bande de teflon (incluse) pour sceller des prises de conduit. • Benutzen Sie das Teflonklebeband (eingeschlossen) um Rohrstecker zu versiegeln.
  • Page 6 Surface Mounting Remove the (4) side plates . Mounting Surface should be of suitable material such as brick, concrete, wood etc. • Quite (4) las placas laterales usando la herramienta de la seguridad proporcionada. La superficie de montaje debe estar de material conveniente tal como ladrillo, concreto, madera etc.
  • Page 7 RJ45 Camera Camera Heater/Blower Heater/Blower Alarm 1 Alarm 2 Alarm 3 Common Make the appropriate male and female connec- tions. Indoor model does not include pre-run cables. • Haga las conexiones masculinas y femeninas apropiadas. El modelo de interior no incluye pre-funciona los cables. •...
  • Page 8 Camera = red & orange wires to terminal Heater/Blower = yellow & green wires to terminal • Cámara fotográfica = alambres rojos y anaranjados al terminal Heater/Blower = alambres del amarillo y del verde al terminal • Appareil-photo = fils rouges et oranges à la borne Heater/Blower = fils de jaune et de vert à...
  • Page 9: Replacement Parts List

    Make sure there are NO GAPS or EDGES between the seal edge and the dome’s surface. • Cerciórese de que no haya BOQUETES o BORDES entre el borde del sello y la superficie de la bóveda. • Assurez-vous qu'il n'y a AUCUNE LACUNE ou BORD entre le bord de joint et la surface du dôme.
  • Page 10: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products...

This manual is also suitable for:

Sview sm7cs-3Sview sm7ts-3Sview sm7cn-3
