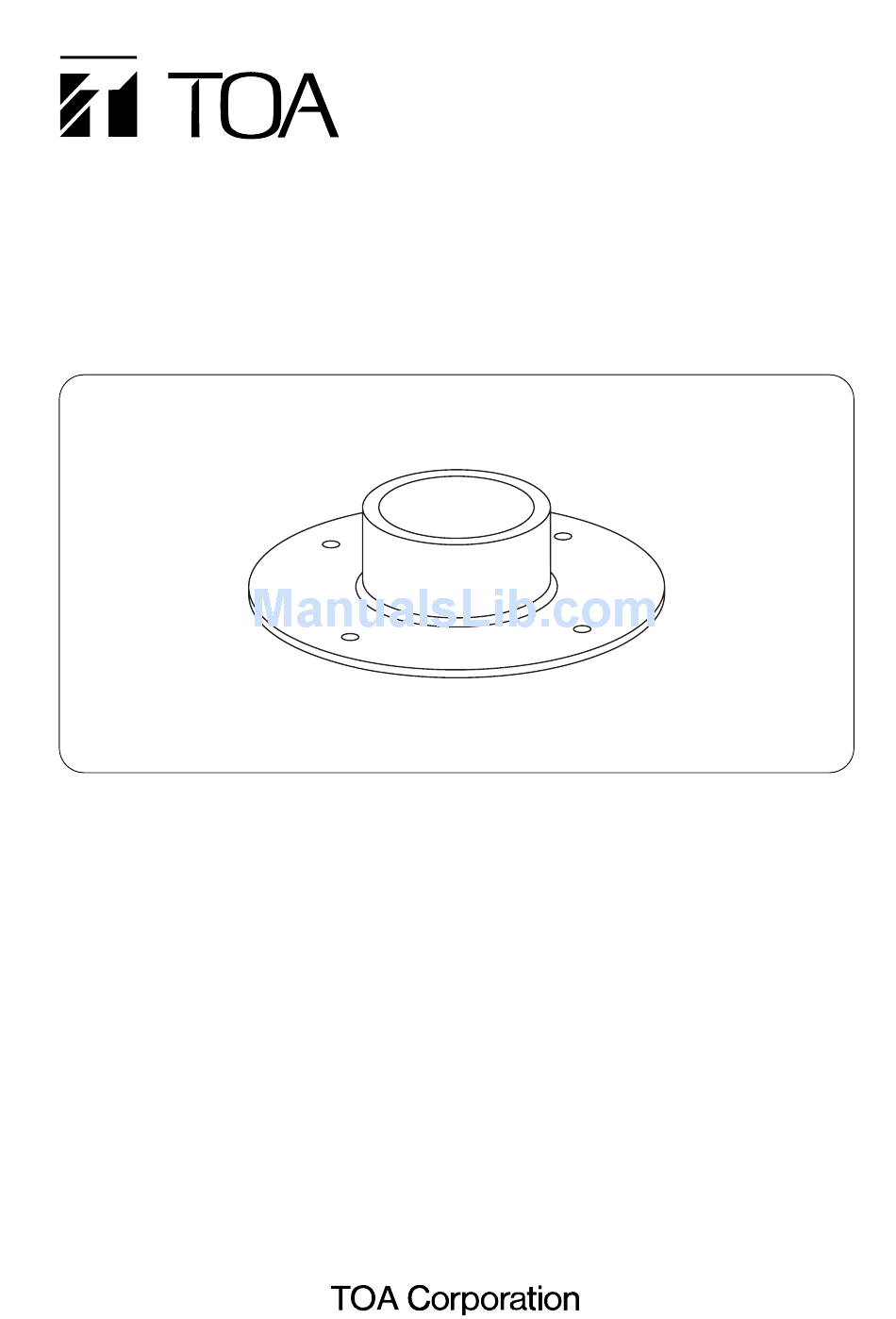

PENDANT ADAPTER
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS .......................... 2
2. GENERAL DESCRIPTION ........................ 4
3. HANDLING PRECAUTIONS ..................... 4
Thank you for purchasing TOA's Pendant Adapter. Please carefully follow the instructions in this manual
to ensure long, trouble-free use of your equipment.
INSTRUCTION MANUAL
C-BC704PB
4. INSTALLATION ......................................... 5
5. SPECIFICATIONS ..................................... 8
Accessories ................................................ 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-BC704PB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa C-BC704PB

Summary of Contents for Toa C-BC704PB

  • Page 1 2. GENERAL DESCRIPTION ......4 5. SPECIFICATIONS ........8 Accessories ..........8 3. HANDLING PRECAUTIONS ..... 4 Thank you for purchasing TOA’s Pendant Adapter. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included.
  • Page 3 When Installing the Unit • Leave the installation of the unit to your TOA dealer because the installation requires expert experience and skills. The unit may fall off if incorrectly installed, resulting in possible personal injury.

  • Page 4: General Description

    2. GENERAL DESCRIPTION The C-BC704PB is designed to suspend the C-CC704 Combination Camera from the ceiling in combination with the suspension pipe (required separately). 3. HANDLING PRECAUTIONS • Mount the unit to a robustly constructed concrete ceiling surface. Avoid mounting the unit to a pole on which other objects susceptible to wind are also mounted.
  • Page 5 4. INSTALLATION 1. Run the composite cable supplied with the C-CC704 through the cable bushing supplied with the unit. Remove the connectors on the end of the composite cable before running the cable through the cable bushing. Insert Remove 2. Secure the Pendant adapter to the C-CC704's case. Camera mounting screw (accessory) (Quantity: 4) Waterproof washer...
  • Page 6 4. Replace the connectors removed in Step 1 on the end of the composite cable. Note: Pay attention to the correct cable connections. Incorrect wiring at the connectors may cause damage to the equipment. Input connector Power supply connector Input/Output connector Power supply connector Terminal Terminal...
  • Page 7 5. After the suspension pipe (prepare separately) has been installed, pull out the cable from the lower end of the pipe, then connect it to the composite cable. The pipe thread is compatible with NPT1-1/2. Note: Be sure to seal and insulate each connection of the cable with waterproof tape. Suspension pipe Suspension pipe ( NPT1-1/2 ) NPT1-1/2...

  • Page 8: Specifications

    Dimensions 300 g ( 0.66 lb ) Weight Note: The design and specifications are subject to change without notice for improvement. • Accessories Camera mounting screw ......4 Waterproof washer ........4 Cable bushing ..........1 URL: http://www.toa.jp/ Ver. 1.00...
