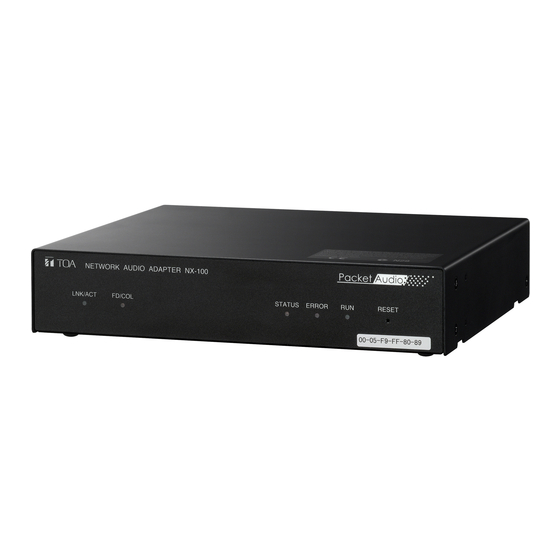

Toa NX-100 Operation Manual
Network audio adapter
Hide thumbs
Also See for NX-100:
- Installation setup manual (114 pages) ,
- Cookbook (70 pages) ,
- User manual (12 pages)
Advertisement
Table of Contents
NETWORK AUDIO ADAPTER
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
TABLE OF CONTENTS
......................................................... 3
.............................. 2
OPERATIONS MANUAL
NX-100
.......................... 4
.......... 6
Advertisement
Table of Contents
Related Manuals for Toa NX-100
Summary of Contents for Toa NX-100
- Page 1 Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. TABLE OF CONTENTS 1. OPERATION SCREEN ... 2 2. MENU ... 3 OPERATIONS MANUAL 3. MAKING BROADCASTS ... 4 4. ERROR MESSAGES (EXAMPLES) NX-100 ... 6...
- Page 2 1. OPERATION SCREEN (Operation screen example) (1) Selection Button Selects broadcast locations. (2) Group Button Simultaneously selects two or more Selection buttons. (3) Start Button Starts the broadcast selected with the Selection or Group button. (4) End Button Quits broadcasts. (5) Message Display Area Displays responses to operations or error contents.
- Page 3 2. MENU 2.1. File Exit: Exits the software program in use. 2.2. Setting Button setting: Not used during operation. (Used for settings only. Entry of both system name and password are required to perform the settings.) Unit settings: Not used during operation. (Used for settings only. Entry of both system name and password are required to perform the settings.) 2.3.
- Page 4 3. MAKING BROADCASTS Step 1. Start the NX-100 Operation Program by double-clicking on the operation program's desktop shortcut or the "nx100_control.jar" application created in the program's installed folder. The operation screen is displayed. (Operation screen example) Step 2. Press either the Selection or Group button to select broadcast locations.
- Page 5 The Selection buttons change to orange if a connection is made to at least one of the NX-100 units programmed for that button. Step 4. Broadcasting can begin when the "Connection succeed to all designated units." indication is displayed.
- Page 6 4. ERROR MESSAGES (EXAMPLES) Message • "OO" connection failure. - Maximum number of connectable PCs exceeded. • No start. - Designated unit busy. • "OO" contact output "XX" already ON. • "OO" contact output "XX" turned OFF by other contact or PC. •...
