Toa HY-ST7 Installation Manual

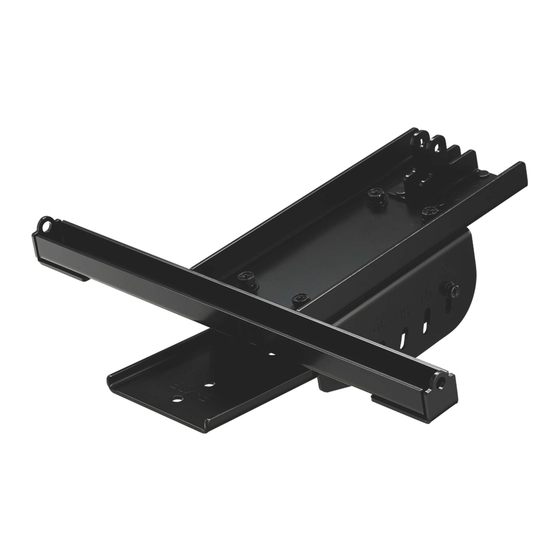

SpeAker STANd AdApTer
Thank you for purchasing TOA's Speaker Stand Adapter.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLe OF CONTeNTS

1. SAFeTy preCAUTIONS ............................. 1
2. GeNerAL deSCrIpTION ........................... 2
3. MOUNTING dIAGrAM ................................ 2

1. SAFeTy preCAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WArNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
• Avoid installing or mounting the speaker stand in
unstable locations, such as on a rickety table or a
slanted surface. Doing so may result in the speaker
stand falling down and causing personal injury and/
or property damage.
• Since the adapter is designed for indoor use, do
not install the speaker stand outdoors. If installed
outdoors, the aging of parts causes the speaker
to fall off, resulting in personal injury. Also, when
the speaker gets wet with rain, there is a danger of
electric shock.
• Owing to the speaker's size and weight, be sure
that at least two persons are available to mount the
speaker. Failure to do so could result in personal
injury.
• Do not use other methods than specified to mount
the adapter. Extreme force is applied to the adapter
and the speaker could fall off, possibly resulting in
personal injuries.
• Use the specified speaker stand.
Use K&M's 21300 Speaker Stand (recommended
model) or other stands that can support at least
50 kg (110.23 lb) in weight. Further, use the stand
with its inner pipe fully lowered. Doing otherwise
could cause the stand to lose balance and topple
over, potentially resulting in personal injury.
INSTALLATION MANUAL
4. INSTALLATION ............................................ 3
5. SpeCIFICATIONS ........................................ 8
• Tighten each nut and bolt securely. Ensure that
the adapter has no loose joints after installation
to prevent accidents that could result in personal
injury.
• Avoid installing the speaker in locations such
as in indoor swimming facilities that are not well
ventilated. In such locations, the adapter may be
vulnerable to corrosion, eventually allowing the
speaker to fall resulting in personal injury.
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Avoid placing the speaker stand in a doorway or
other high traffic area as people may trip on the
equipment and cords. Also, bundle the speaker
cable under the speaker stand, then make cable
routing in a way that people may not trip on it.
Failure to observe above instructions may cause
the speaker to fall down, resulting in personal injury.
• Avoid touching the adapter's sharp metal edge to
prevent injury.
• Do not place heavy objects on the speaker as this
may cause it to fall or break which may result in
personal injury and/or property damage. In addition,
the object itself may fall off and cause injury and/or
damage.
hy-ST7
