STRATCO HOMESHED ASSEMBLY INSTRUCTIONS
These pages are designed to give you the basic assembly techniques to fix your Stratco Gable Homeshed
onto a concrete slab. Please use this page in conjunction with the main set of instructions supplied,
"Stratco Gable Homeshed, Framework" and the appropriate door installation instructions.
1.0 COLUMN SPACING
Determine the location of the concrete slab. Figure
1 and TABLE 1 COLUMN SPACING indicate the
location of all columns. The outside edge of your
slab shall be no less than 70mm from the outside
face of the columns.
"D" m
Rear 100 or
150 mm C Section
FRONT GABLE END
SIZE W(m)xL(m)
G1 3.159m x 6.207m
G2 3.159m x 7.731m
G3 3.159m x 9.255m
G4 3.921m x 6.207m
G5 3.921m x 7.731m
G6
3.921m x 9.255m
G7
5.445m x 6.207m
G8
5.445m x 7.731m
G9
5.445m x 9.255m
G10
5.445m x 12.303m
G11
6.207m x 6.207m
G12
6.207m x 7.731m
G13
6.207m x 9.255m
G14
6.207m x 12.303m
G15
6.969m x 6.207m
G16
6.969m x 7.731m
G17
6.969m x 9.255m
G18
6.969m x 12.303m
FIXING TO CONCRETE SLAB
F
=114 mm (SC100)
F
=140mm(SC150)
"A" m

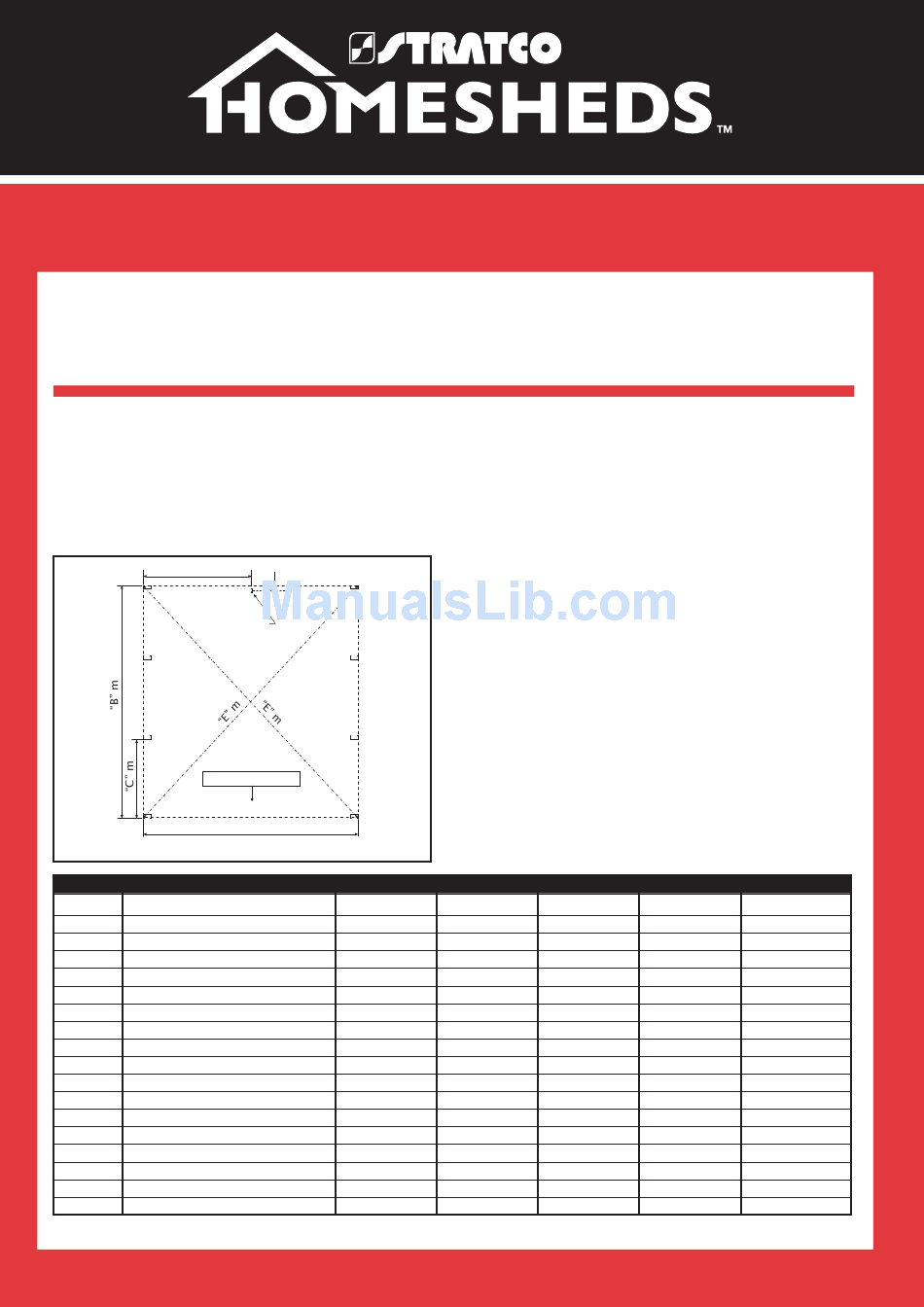

Figure 1 COLUMN SPACING
A
2.953
2.953
2.953
3.715
3.715
3.715
5.239
5.239
5.239
5.239
6.001
6.001
6.001
6.001
6.763
6.763
6.763
6.763
2.0 SLAB
Two base plate styles are available and depend on
the type of concrete slab being laid. If you have
chosen to incorporate integrated footings with
your slab, a two hole base plate will have been
welded to the base of your columns, if your slab is
not going to integrate footings four hole base
plates will have been supplied.
Concrete Slab with Integrated Footings:
Footings shall have a diameter of either 450mm or
that as specified in Table 2.2 ("Stratco Gable
Homeshed, Framework"), whichever is greater, with
the depth as specified in the same table. Mark out
and dig footing holes at the locations indicated in
STEP 1.0 of the "Framework" instructions. Pour the
concrete footings and score the top before pouring
the slab. The slab must be at least 100mm deep.
Note: Remember to include footings for any
internal roller door columns on Type 1 sheds (6.2 &
6.9m wide sheds only). Footings are not required
for centre roller door columns on Type 2 sheds but
B C
6.151 3.045
7.675 2.537
9.199 3.045
6.151 3.045
7.675 2.537
9.199 3.045
6.151 3.045
7.675 2.537
9.199 3.045
12.247 3.045
6.151 3.045
7.675 2.537
9.199 3.045
12.247 3.045
6.151 3.045
7.675 2.537
9.199 3.045
12.247 3.045
D E
- 6.823
- 8.223
- 9.661
- 7.186
- 8.527
- 9.921
2.644 8.080
2.644 9.293
2.644 10.586
2.644 13.319
3.025 8.593
3.025 9.743
3.025 10.983
3.025 13.638
3.406 9.141
3.406 10.230
3.406 11.417
3.406 13.990
Table 1 COLUMN SPACING
