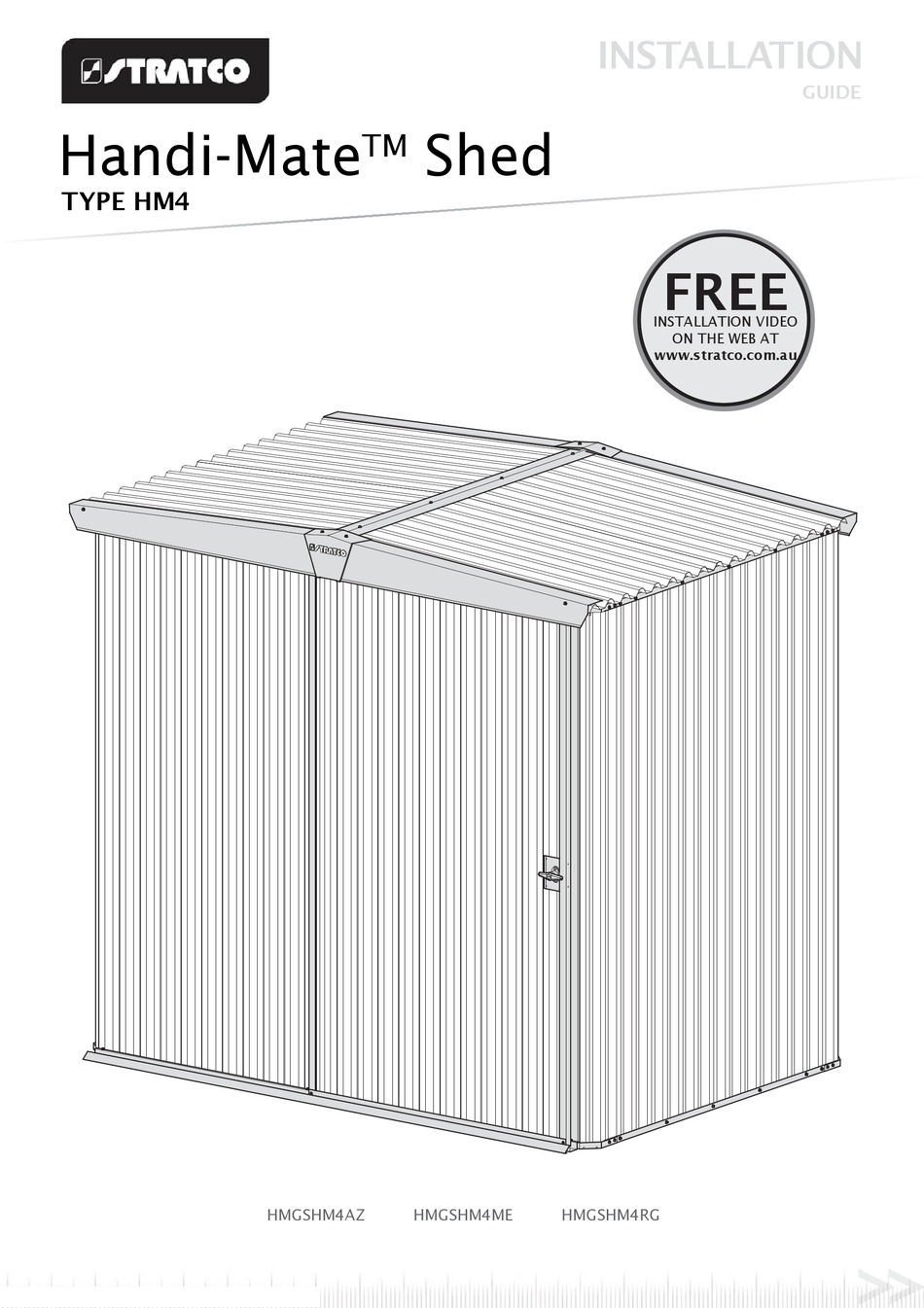

- Page 1 INSTA T T LLAT A A ION GUIDE Handi-Mate Shed TYPE HM4 FREE INSTALLATION VIDEO ON THE WEB AT www.stratco.com.au HMGSHM4AZ HMGSHM4ME HMGSHM4RG...
-
Page 2: Before You Start
A free installation video is on the web at www.stratco.com.au under the Garden Shed section. NOTE: Use heavy gloves when handling steel sheeting and flashings and never attempt to install a shed in windy conditions. - Page 4 HMBCL1090## - HMBCR1090## - BARGE CAP L/HAND BARGE CAP R/HAND TEK1016## only on colour sheds...
- Page 5 1.53 2.16 Important Notes It is essential to clear and level the site prior to assembling your Stratco Handi-Mate Shed. Before starting to build the shed, please refer to the previous pages of this guide for a list of recommended shed assembly tools and shed components.
-
Page 6: Door Assembly
DOOR ASSEMBLY HMDW HMDCTO1090GA HMDW HMNN6 HMNN6 HMDCVE1900GA WTK1016... - Page 7 SSPHMSD1900## SSPHMWS1900## HMDCBO1090GA ENSURE PRE-PUNCHED HOLES LINE UP IN ALL 4 CORNERS HMDCVE1900GA...
- Page 8 1. FIX OUTSIDE CORNERS. 2. CHECK SQUARE. WTK1016 3. FIX INSIDE CORNERS & HMDMGA. 4. FLIP & FIX ON FRONT SIDE. DRILL Ø12mm HOLE...
-
Page 9: Wall Assembly
WALL ASSEMBLY SSPHMWS1900## SSPHMWS1900## SSPHMWSCNR1900## HMWC2100GA HMWC2100GA... - Page 10 POSITION THE WALL SHEETS SO TEKNNW1016 THE SCREWS ARE DRIVEN INTO THE CENTRE OF THE PEAK. POSITION THE WALL SHEETS SO THE SCREWS TEKNNW1016 ARE DRIVEN INTO THE CENTRE OF THE PEAK FOR ALL SCREWS. TEKNNW1016...
- Page 11 FRONT WALL ASSEMBLY SSPHMSW1900## SSPHMWSCNR1900## HMDJ1900GA HMSR2100GA TEKNNW1016 HMBR2100GA POSITION THE WALL SHEETS SO THE SCREWS ARE DRIVEN INTO THE CENTRE OF THE PEAK.
- Page 12 POSITION THE WALL SHEETS SO THE SCREWS ARE DRIVEN INTO THE CENTRE OF THE PEAK. TEKNNW1016 HMDJ1900GA HMDJ1900GA...
- Page 13 SHED ASSEMBLY HMCBGA ENSURE PRE-PUNCHED HOLES IN HMCBGA AND WALL PANELS ARE ALIGNED. REPEAT PROCESS FOR THIRD WALL TEKNNW1016...
- Page 15 600mm TEKNNW1016 600mm TEKNNW1016 HMDSBO1010GA TEKNNW1016 USE HMDSBO1010GA AS SPACER TEMPLATE BETWEEN HMDJ1900GA. DO NOT FIX.
- Page 16 TEKNNW1016 TEKNNW1016 HMBS2047GA HMRRBO2047GA...
- Page 17 FIX TO GROUND WITH DYNABOLT ONCE SQUARE TEK1016 125mm BACK FROM FRONT EDGE OF HMRC1450GA HMRC1450GA THEN CONTINUE WITH 400mm SPACINGS HMRB1450GA...
- Page 18 TURN UP VALLEYS ON SHEET TO ENCOURAGE WATER TO FLOW TOWARDS WALLS TEK1016...
- Page 19 FIXING LOCATIONS FOR ALL SSPHMRS1090AZ ALL FIXINGS TEK1016 FIXING ORDER REMOVE ANY SWARF FROM HMSR2100GA BEFORE SLIDING DOOR ONTO SHED HMSS & WTK1022 630mm...
- Page 20 TIGHTEN WTK1022 SCREW...
- Page 21 HMDSBO1010GA TEKNNW1016 TEKNNW1016...
- Page 22 HMBCL1090## MAX 20mm TEK1016## 10mm...
- Page 23 HMBCR1090## HMBCL1090## TEK1016## HMBCR1090##...
-
Page 24: Maintenance
Do not directly anchor your shed to pavers. MAINTENANCE Your Stratco Handi-Mate Shed will maintain its good looks for even longer with a simple wash and wipe down. Cleaning should be performed as often as is required to remove any dirt, salt and pollutants.
