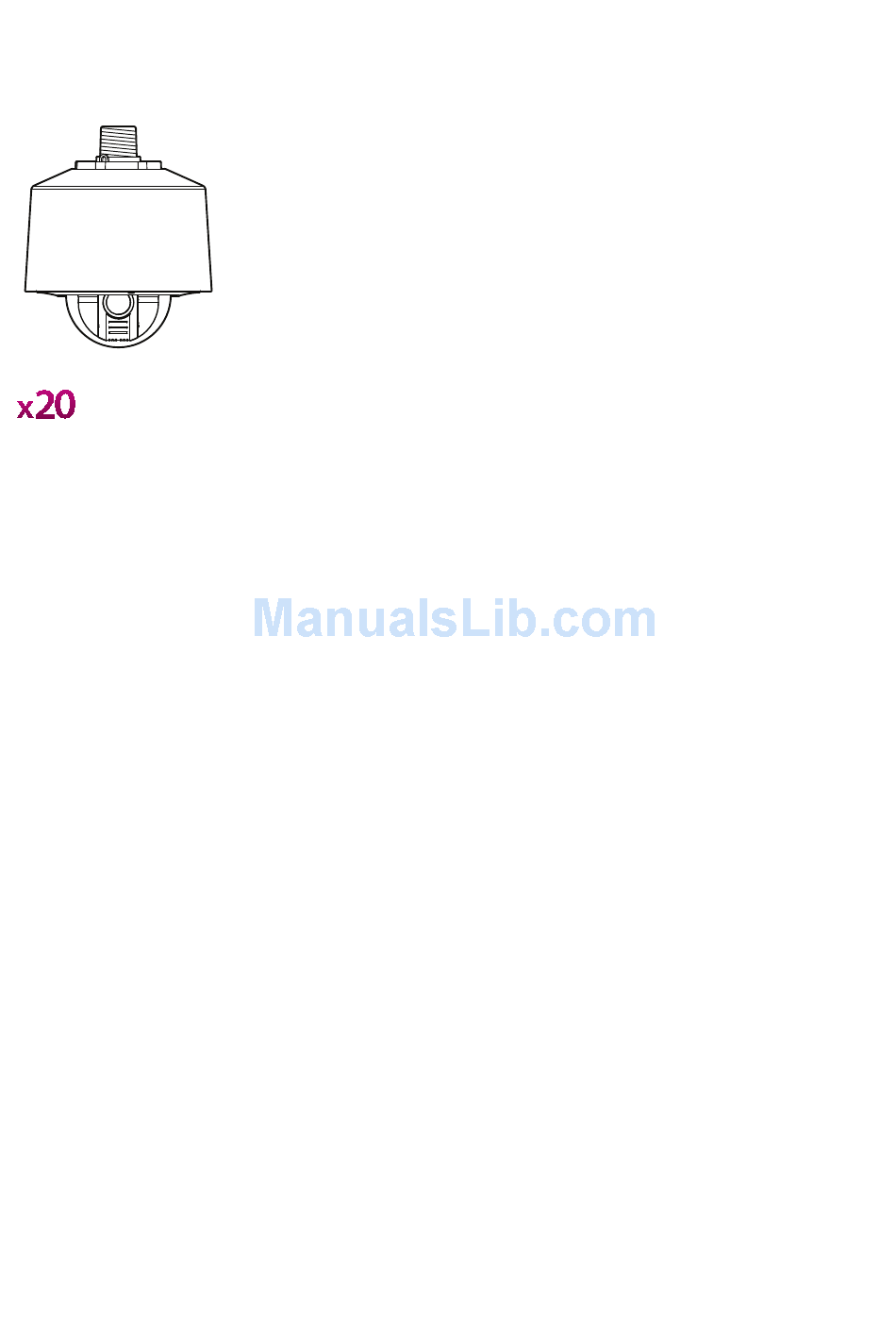

- Page 1 HD-SDI PTZ Outdoor All-In-One Camera User’s Manual Ver. 0.5 / 2011.03...
-
Page 2: Precautions
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and... -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. - All these safety and operating instructions should be read before the product is operated. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions. - Page 4 Disposal of Your Old Appliance 1. When this crossed-out wheel bin symbol is attached to a product it mean the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream via designated by the government or the local authorities.
-
Page 5: Table Of Contents
Contents 4 Precautions 1. Introduction Product & Accessories Parts Name & Functions_Appearance Parts Name & Functions_Inside 2. Installation Installation DIP Switch Setup Cabling 3. OSD Menu Check Points before Operation OSD - ROOT MENU & SYSTEM INFORMATION OSD - MOTION SETUP OSD - FUNCTION SETUP >... -
Page 6: Introduction
Introduction - Product & Accessories Product Accessories Hexagonal Wrench All-In-One Camera Manual CD Quick Manual... -
Page 7: Parts Name & Functions_Appearance
Introduction - Part Name & Functions_Appearance Sunshield & Upper Housing PTZ Mechanism Dome Safety Wire Dome Cover Sunshield & Upper Housing Dome Safety Wire Sunshield protect bubble dome cover from the sun rays and Prevents the dome cover from falling. rain fall. -
Page 8: Parts Name & Functions_Inside
Introduction - Part Name & Functions_Inside Video Output Port Video Coxial Cable ID Setup Switch Alarm Output Port Communication Setup Switch Alarm Input Port RS-485 Port Power Port Heater Video Output Port BNC Coxial Cable Video out check the screen during installation. Connects to video output device such as monitor using the BNC coaxial cable. -
Page 9: Installation
Installation - Installation You have to detach the PTZ mechanism from the upper housing to plug the connector of cable. When detach PTZ mechanism, pressing down and holding up the black handles in both sides of PTZ mechanism. [1] Wind the water proof tape on the pipe of upper housing. [2] Hooking the safety wire on the hole of pipe. - Page 10 Installation - Installation Connect each of the following cables to the applicable port and set the DIP switch to con gure the camera ID, communication protocol. Alarm Output Port Alarm Input Port DIP Switch for Camera ID Setup DIP Switch for Communication RS-485 Port Power Port Refer to 13, 14 page for detail DIP switch setting.
- Page 11 Installation - Installation Plug the connector of cable from junction box into properly. After checking the orientation of one touch connector in the upper housing, press the PTZ mechanism into hook in the upper housing. To lock the PTZ mechanism to the upper housing, press the two black handles till it sounds snap.
- Page 12 Installation - Installation Close the dome cover. Care must be taken to locate dome cover by matching the ‘Arrow Mark’. Arrow Mark Arrow Mark Tighten four screws on the dome cover in sequence as shown in the picture. To maintain the best sealing, the torque of each screw must be in the range between 0.5 ~ 1.0 N·m(0.3 ~ 0.73 lbf·ft).
-
Page 13: Installation Dip Switch Setup
Installation - DIP Switch Setup Before installing the camera, you should set Panasonic the DIP switch to configure the camera ID, communication protocol. Interface Board GE(Kalatel) AD(American Dynamics) Protocol Setup Baud Rate Setup RS-485 Termination Resistor - If you set the protocol as ‘Auto’ protocol, camera will automatically recognize PELCO-D or PELCO-P protocol. - Page 14 Installation - DIP Switch Setup 2. Communication Baud Rate Setup 3. RS-485 Termination Resistor Select the appropriate baud rate with DIP switch combination. 2400 BPS - Factory Default - Pin 8 is used for on/off of RS-485 termination. - Normally, it must be off state. - Especially, when you have trouble with long daisy chain style 4800 BPS connection, turn on this termination switch of the last camera.
-
Page 15: Cabling
Installation - Cabling Video Output Power RS-485 (Keyboard Controller/DVR) Video Output RS-485 Communication (DVR/Keyboard) Connects to video output device such as monitor using the For PTZ control, connect this line to keyboard and DVR. BNC coaxial cable. To control multiple cameras at the same time, RS-485 communication lines of them are connected in parallel as Power Connection shown below. - Page 16 Installation - Cabling Alarm Input Alarm Output In 1 In 8 Alarm Input/Sensor Alarm Output Sensor Input/Sensor Alarm Output If you want to use alarm input, the types of sensor must be There are 4 alarm outputs and all of them are relay contact selected in OSD menu.
-
Page 17: Check Points Before Operation
OSD - Check Points before Operation Check Points before Operation 1. Before power is applied, please check the cables carefully. 2. The camera ID of the controller must be identical to that of the camera to be controlled. The camera ID can be check in the system information of OSD menu. -
Page 18: Osd - Root Menu & System Information
OSD - ROOT MENU & SYSTEM INFORMATION ROOT MENU ROOT MENU ==================================================== <SYSTEM INFORMATION> <SYSTEM INFORAMTION> <MOTION SETUP> Shows information and current configuration. <FUNCTION SETUP> <CAMERA SETUP> <MOTION SETUP> <SYSTEM SETUP> Setup for motion related settings. <FUNCTION SETUP> Setup for various functions such as preset, scan, pattern, group and schedule. -
Page 19: Osd - Motion Setup
OSD - MOTION SETUP MOTION SETUP <MOTION SETUP> Setup the general functions of pan/tilt motions. ==================================================== POWER UP ACTION JOG MAX SPEED 100/SEC PWR UP ACTION ON / OFF JOG DIRECTION NORMAL This function enables to resume the last action executed before power <ALARM INPUT SETUP>... -
Page 20: Osd - Function Setup > Preset Setup
OSD - FUNCTION SETUP > PRESET SETUP FUNCTION SETUP <FUNCTION SETUP> Configure 4 special functions with this menu. ==================================================== <PRESET SETUP> <SCAN SETUP> PRESET SETUP <PATTERN SETUP> 255 presets from the number 1 to 255 can be assigned excluding <GROUP SETUP> preset 95, 131~134, 141~148, 151~158 reserved for menu. -
Page 21: Osd - Function Setup > Scan Setup
OSD - FUNCTION SETUP > SCAN SETUP SCAN SETUP <FUNCTION SETUP> Up to 8 scans are available, which makes the camera to move ==================================================== <PRESET SETUP> slowly between two preset positions. <SCAN SETUP> When scan function runs, the camera moves from the preset <PATTERN SETUP>... -
Page 22: Osd - Function Setup > Pattern Setup
OSD - FUNCTION SETUP > PATTERN SETUP PATTERN SETUP <FUNCTION SETUP> Pattern function is that a camera memorizes the path (mostly ==================================================== <PRESET SETUP> curve path) by joystick of controller for assigned time and <SCAN SETUP> revives the path exactly as it memorized. <PATTERN SETUP>... -
Page 23: Osd - Function Setup > Group Setup
OSD - FUNCTION SETUP > GROUP SETUP GROUP SETUP SCREEN <FUNCTION SETUP> The group function allows running sequence of presets, pattern ==================================================== <PRESET SETUP> and/or scans. Max. 8 group can be stored. Each group can have <SCAN SETUP> max. 20 action entities which can be preset, pattern or scan. <PATTERN SETUP>... - Page 24 OSD - FUNCTION SETUP > GROUP SETUP EDIT GROUP - Assign Function <EDIT GROUP> Move cursor to the ‘NO.’ to assign the function, press the ‘NEAR’ ==================================================== ACTION Dwell key to set up. Select the function by moving joystick up/down. ==================================================== NONE NONE...
-
Page 25: Camera Setup
OSD - CAMERA SETUP CAMERA SETUP <CAMERA SETUP> Setup the general functions of zoom camera module. ==================================================== FOCUS MODE AUTO DIGITAL ZOOM FOCUS MODE AUTO / MANUAL <WHITE BALANCE SETUP> Sets the camera focus mode. <AUTO EXPOSURE SETUP> <OTHER SETUP> - AUTO: This mode exchanges the focus mode automatically between manual focus mode and auto focus mode. - Page 26 OSD - CAMERA SETUP > AUTO EXPOSURE SETUP AE SETUP <CAMERA SETUP> ==================================================== FOCUS MODE AUTO BACK LIGHT ON / OFF DIGITAL ZOOM Sets the backlight compensation. <WHITE BALANCE SETUP> <AUTO EXPOSURE SETUP> DAY/NIGHT AUTO / DAY / NIGHT <OTHER SETUP> ‘AUTO’...
-
Page 27: Osd - Camera Setup > Other Setup
OSD - CAMERA SETUP > OTHER SETUP OTHER SETUP <CAMERA SETUP> ==================================================== FOCUS MODE AUTO EXP COMPENSATION 7 (GAIN:-10.5dB) DIGITAL ZOOM ~ +7 (GAIN:+10.5dB) (15 Steps) <WHITE BALANCE SETUP> Default is ‘0/0dB’. <AUTO EXPOSURE SETUP> <OTHER SETUP> APERTURE 0 ~ 15 GAMMA NORMAL / GAMMA1 / S-LOW / S-MID / S-HIGH PICTURE EFFECT... -
Page 28: Osd - System Setup
OSD - SYSTEM SETUP SYSTEM SETUP <SYSTEM SETUP> ==================================================== HD-SDI 1920x1080i60 HD-SDI 1280x720p50 / 1280x720p60 / 1920x1080i50 / CLEAR ALL DATA CANCEL 1920x1080i60 / 1920x1080p25 / 1920x1080p30 Select the resolution of HD-SDI. CLEAR ALL DATA CANCEL / OK Deletes all configuration data such as display, camera, motion setup and so on. -
Page 29: Specification
Specifications - Dimension Unit: mm 182.5 3/4” PIP THREAD 78.7 404.5 Wall Mount Bracket 182.5 3/4” PIP THREAD 3/4” PIP THREAD 78.7 Ceiling Mount Bracket...
