Speco VL-10 Instruction Manual

Speco VL-10 Instruction Manual

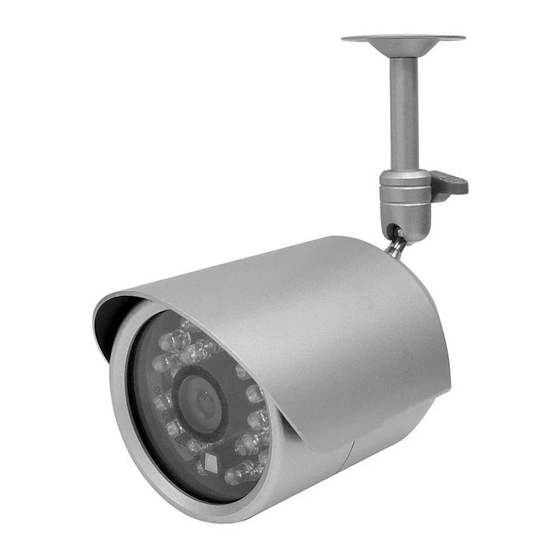

Ir ccd water resistant color camera

Advertisement

Quick Links

VL-10 AND VL-11
IR CCD WATER RESISTANT
COLOR CAMERA
200 New Highway. Amityvill, NY 11701
1-800-645-5516 FAX:631-957-9142 or 631-957-3880
www.specotech.com
SAFETY PRECAUTIONS
Please read before using
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of insulated dangerous Voltage within the
product's enclosure that may be sufficient magnitude
to constitute risk of electrical shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in
the literature accompanying the appliance.
1.
Please read the service manual in details before using.
2.
Do not disassemble the camera-no user serviceable parts inside
3.
The product is IP-66 waterproof rated.
4.
Do not attempt to service the unit yourself unless you are
authorized to do so. Opening cover may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified personnel only.
5.
Turn off the power before cleaning the camera body; use only a
clean damp cloth. Do not use any soap or cleaners.
3
CONTENTS
CONTENT...............................................................................
SAFETY PRECAUTIONS.............................................................. 3
FEATURES.............................................................................. 4
CDS ........................................................................... 4
AWS .......................................................................... 4
IR LENS ...................................................................... 4
Mount........................................................................
Sunshade..................................................................... 5
Power and Video Output Jack.......................................... 5
INSTALLATION........... .............................................................. 6
SPECIFICATIONS ..................................................................... 7
DIMENSIONS........................................................................... 8
2
FEATURES
AWB: The camera includes auto white balance mode and auto capture
color temperature. The range is 2400k~9400K
CDS:The IR LED: only activate when needed.
Illumination is 4 LUX±2LUX (LED on) / 8LUX±2LUX(LED off)。
C DS SEN SOR
LENS:Super sensitivity BOARD LENS for optimum low light pictures..
L ENS
IR LED : Super power LED IR light , wavelength is 840nm for maximum
illumination.
IR LEDS
4
2
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the VL-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Speco VL-10

  • Page 1 VL-10 AND VL-11 IR CCD WATER RESISTANT COLOR CAMERA 200 New Highway. Amityvill, NY 11701 1-800-645-5516 FAX:631-957-9142 or 631-957-3880 www.specotech.com SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude...
  • Page 2 Power and video connections: Power: Regulated 12 Volts DC, center pin is positive (+) Video: BNC, 1 Volt p-p BNC Vid eo Output DC Pow er SPECIFICATIONS Model VL-10 Pick Up Device 1/3” Interline transfer CCD Resolution 420TV Lines Lens 4.3mm...

This manual is also suitable for:

Vl-11
