Fusion DX800RAID Enclosure Specs and Features
Enclosure
Link LED
SCSI
Enclosure
Services LED
Mute Button
Power LED
Power
Switch
Power Cable
Connector
Drive Module
(Bay 1)
Drive Module
(Bay 2)
Drive Module
(Bay 3)
Drive Module
(Bay 4)
Drive Module
(Bay 5)
Drive Module
(Bay 6)
Drive Module
(Bay 7)
Drive Module
(Bay 8)

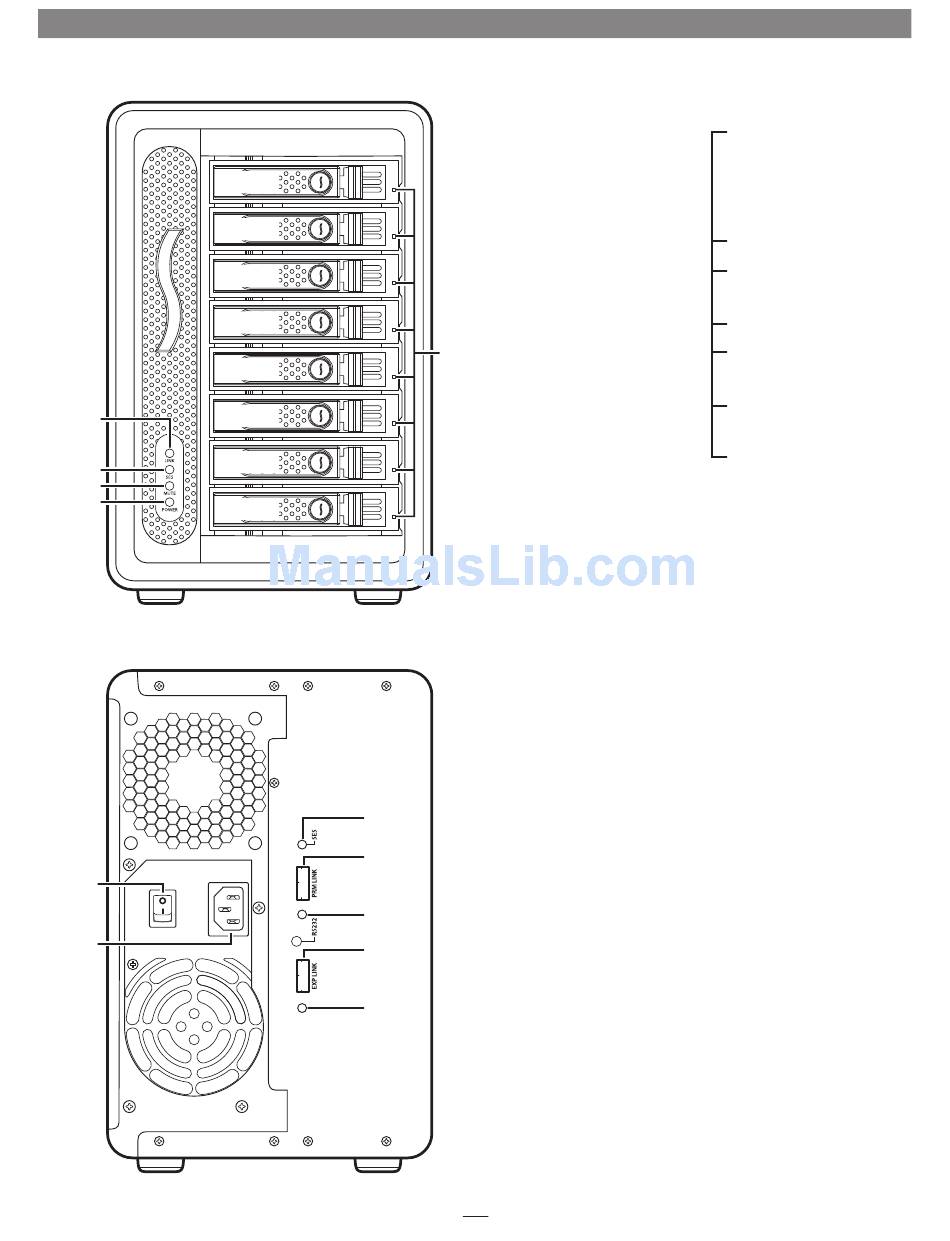

Figure 1
SCSI Enclosure
Services LED
Primary Mini-
SAS Port
Primary Link
LED
Secondary/
Expansion
Link Mini-SAS
Port
Secondary/
Expansion
Link LED
Figure 2

Enclosure Specifications

Compatibility
Interface Connectors
Drives Supported
Power Supply
Drive Activity (Blue)
Operating Temperature
and Identification/Fault
(Red) Indicator LEDs
Dimensions (WxDxH)
Weight
2
Compatible with Mac ,
®
Windows , and Linux
® ®
computers with Sonnet
RAID controller installed
2 x mini-SAS
3 & 1.5 Gb/s Serial ATA;
3.5"
100–240V AC, 50/60Hz
41 to 104˚ F
(5˚ C to 40˚ C)
7.4 x 15.8 x 11.2 in
(18.7 x 40.1 x 28.6 cm)
14.7 lbs
(6.7 kg)
