Data Group Recommended Circuitry

The data group contains six signals: three output signals from application, two input signals to
application, and one I/O signal.

VPPFLASH/DCD

3.2.1
This signal, located on pin 23 in the system connector, can be used by the application to enable
flashing of the phone module. To enter flash-mode, the application shall set VPPFLASH_EN active
high, then enable the MODULE_PWR_EN_B pin.
CM52 Integrators' Manual
WI_DEV_CM52_UGD_001-001
Page 42 of 53
Application
RxD
CTS
1 - 100k
TxD
RTS
DTR
VPPFLASH_EN
VCC
1 - 100k
DCD

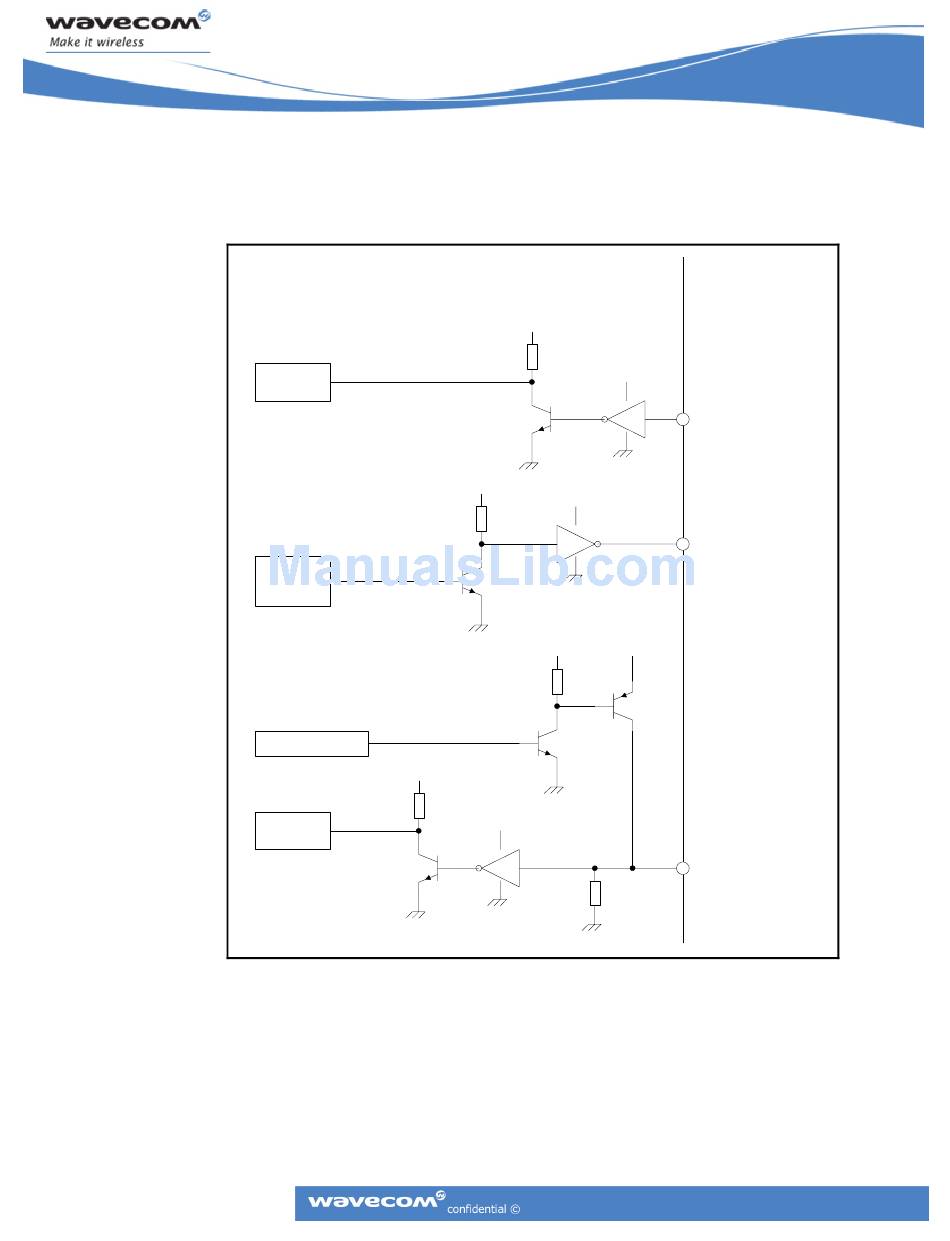

Figure 23: Data Group Diagram
