2.6

Audio Interface

The audio-related signals are: the analog audio signals
ATMS (Audio to Mobile Station),
AFMS (Audio from Mobile Station),
PCM (Pulse Code Modulation) signals (PCMULD, PCMDLD, PCMCLK, and PCMSYNC).
Pin
7
10
9
17
18
19
20
CM52 Integrators' Manual
WI_DEV_CM52_UGD_001-001
Page 27 of 53

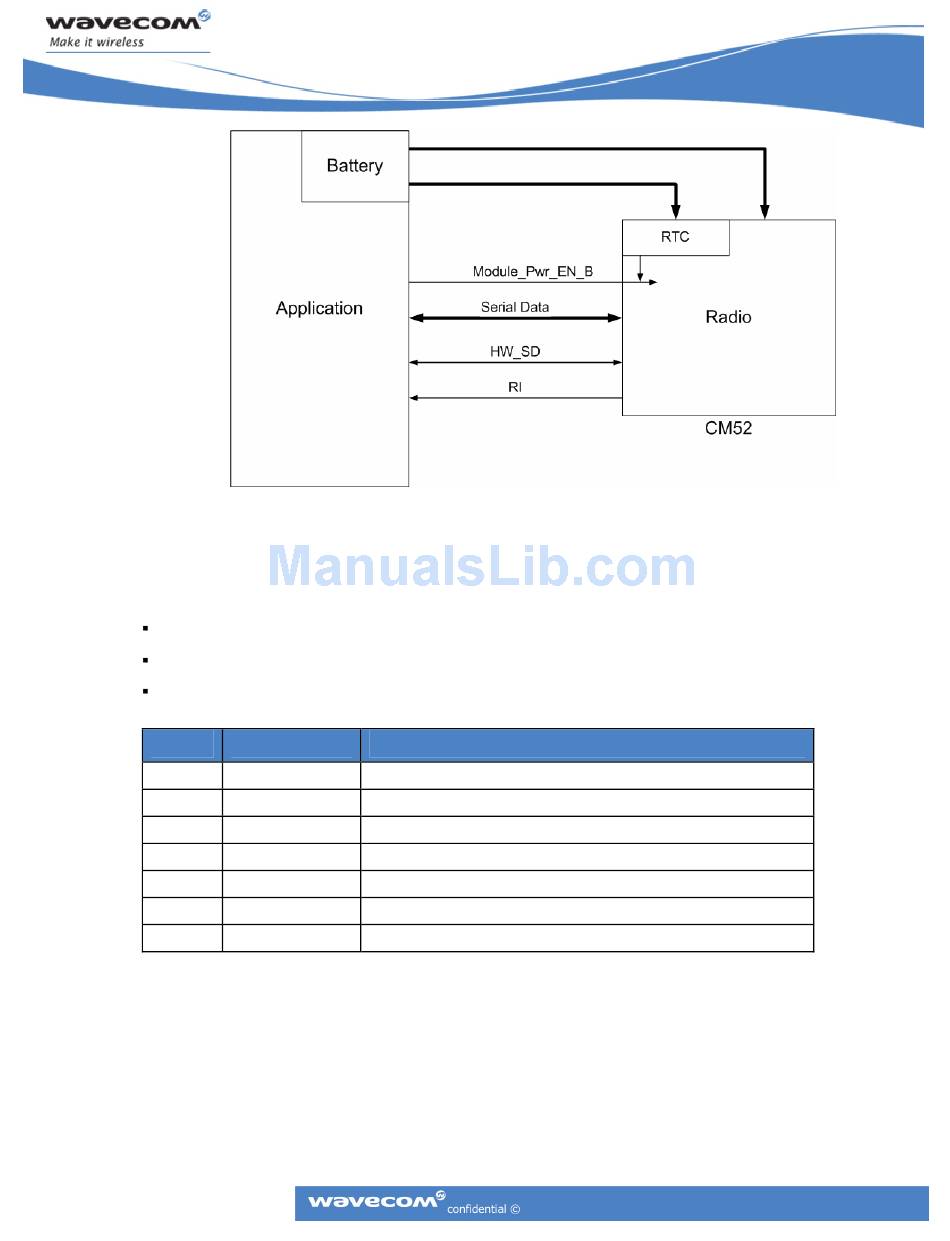

Figure 12: RTC Functional Block Diagram
Signal Description
AFMS Audio Output From Wireless CPU
ATMS Audio Input to Wireless CPU
AGND Analog Reference
PCMCLK PCM Clock Output from Wireless CPU
PCMSYNC PCM Frame Sync Output from Wireless CPU
PCMULD PCM Voice Input to Wireless CPU
PCMDLD PCM Voice Output from Wireless CPU
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.
Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable
®
.
®
.
®
Table 16: CM52 Audio Signals
