2.3

System Connector Interface

Mechanical Overview

2.3.1
External interfaces to the Wireless CPU
pitch, ODU header show below.
Description
System Connector
Mating Ribbon
Connector
SMT Mating Header
Ribbon cable, AWG 30
Please consult the ODU site for more information on mating options:
CM52 Integrators' Manual
WI_DEV_CM52_UGD_001-001
Page 18 of 53

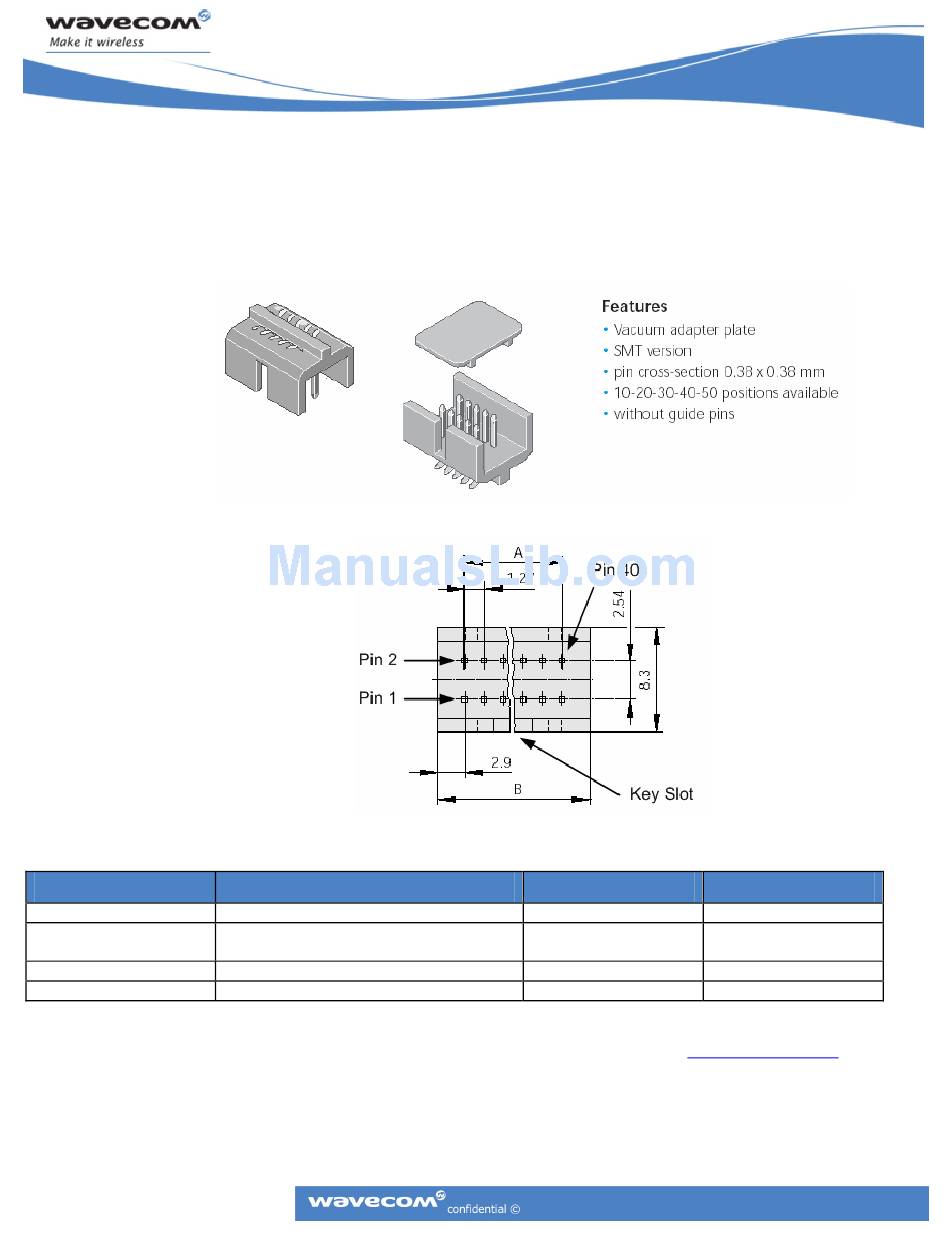

Figure 10: 40-Pin System Connector
Figure 11: 40-Pin System Connector Pin Numbering
ODU Part Number
515.569.035.140.xxx
525.060.035.040.xxx
525.041.035.040.xxx
921.659.031.040.000
Table 2: System Connector and Mating Part Numbers
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.
Ce document est la propriété exclusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable
are made primarily through a 40 pin, standard 0.050-inch
®
Dimension A
24.13 mm
CM52 Integrators' Manual
Dimension B
22.86 mm
http://www.odu.de
