- Page 1 Portable Wireless Receiver © 2011 Shure Incorporated Printed in U.S.A. 27A14812 (Rev. 1)
-
Page 2: Safety Precautions
ADVERTENCIA WARNING! EL ESCUCHAR REPRODUCCIONES DE AUDIO A NIVELES EXCESIVOS DE VOLUMEN PUEDE LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. CAUSAR DAÑOS PERMANENTES AL OIDO. USE EL VOLUMEN MAS BAJO POSIBLE. USE AS LOW A VOLUME AS POSSIBLE. La exposición prolongada a niveles sonoros excesivamente intensos puede dañar los oídos y causar Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced una pérdida permanente del oído causada por ruidos. -
Page 3: Précautions De Sécurité
ACHTUNG! AVERTISSEMENT ! MÖGLICHST GERINGE LAUTSTÄRKEPEGEL VERWENDEN. L'ÉCOUTE AUDIO À UN VOLUME SONORE EXCESSIF PEUT CAUSER DES LÉSIONS AUDITIVES Längerfristiges Hören bei übermäßigen Schallpegeln kann zu Hörschäden und zu permanentem, durch PERMANENTES. RÉGLER LE VOLUME LE PLUS BAS POSSIBLE. Lärm verursachten Gehörverlust führen. Bitte orientieren Sie sich an den folgenden von der Occupa- Une surexposition à... - Page 4 ВНИМАНИЕ: ATENÇÃO! ПРОСЛУШИВАНИЕ ЗВУКА ПРИ ЧРЕЗМЕРНО ВЫСОКОЙ ГРОМКОСТИ МОЖЕТ OUVIR O SOM COM VOLUME MUITO ALTO PODE CAUSAR DANOS PERMANENTES À AUDIÇÃO. USE O VOLUME MAIS BAIXO POSSÍVEL. ПРИВЕСТИ К НЕОБРАТИМОМУ ПОВРЕЖДЕНИЮ СЛУХА.ИСПОЛЬЗУЙТЕ КАК МОЖНО A exposição a sons excessivamente altos pode danificar os ouvidos e resultar em perda per- БОЛЕЕ...
-
Page 5: General Description

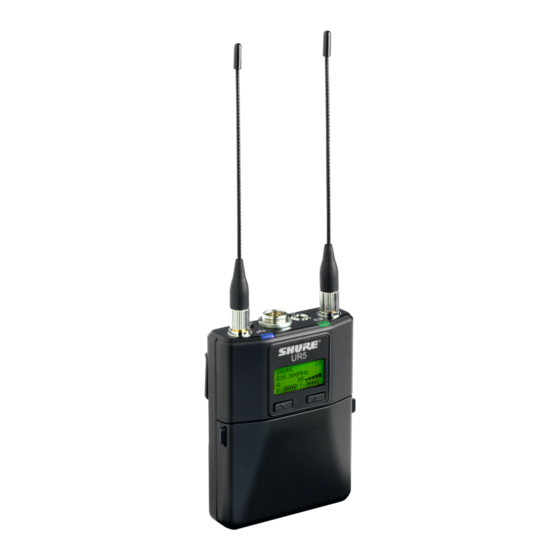

General Description The UR5 is a premium portable wireless microphone receiver component, designed to provide Shure UHF-R®-class wireless technology, performance and quality for profes- sional field and media production applications. Featuring wide-band frequency tuning, hands-on navigation, rechargeability, and a wide variety of mounting options, the UR5 is the clearest choice for wireless portability. Features • Wide-band frequency tuning • True diversity • Balanced Output • Variety of mounting options • Operates with standard AA batteries or Shure SB900 rechargeable battery Included Components • UR5: Portable Wireless Receiver • Shoe Mount • 1/4 Wave Antennas (2) • Mounting Strap • TA3F to XLRM Audio Cable • 90° SMA Adapters (2) • TA3F to 3.5 mm (1/8”) Audio Cable • Zippered Pouch • AA Batteries (2) (except in Argentina) • Protective Cover... - Page 6 exit enter sync scan exit enter sync exit enter sync exit enter sync scan scan exit enter sync scan exit enter sync scan exit enter sync scan 2 sec exit enter sync exit enter sync scan scan exit enter sync exit enter sync scan scan exit enter sync scan...
- Page 7 UR5 Portable Receiver ① Power Switch Turns the portable receiver on and off. ② TA3M Jack. For audio out. ③ 3.5 mm Headphone Jack For monitoring audio. ④ Scan Button Press the scan button to find the next available channel. Press and hold for two seconds to find the group with the most available channels. ⑤ IR Window For transferring RF settings and name to a transmitter, or copying the MTx list to another receiver. ⑥ Battery Compartment Install 2 AA batteries or a Shure SB900 rechargeable battery. Open by pressing the latches on both sides and pulling outward. ⑦ Menu Buttons Use in conjunction with the ▼▲ buttons to access the configuration menus. ⑧ ▼▲ Buttons Use to scroll through menus, change settings, or select transmitters in MTx mode.
-
Page 8: Audio Setup
Use the AA adapter (installed in the battery compartment as shipped) when using ceiver are close to, but not at, the peak level (5th segment on the audio bar). AA batteries. 2. Check the input setting on the device to which you are connecting the re- For the battery icon to accuratly display battery life, select the battery type from the battery menu (SYST CONF > BATTERY). ceiver. Set the camera output volume on the receiver accordingly (AUDIO > CAMERA VOL). Note: Battery type is set to alkaline by default. Input Setting on the Camera UR5 Camera Output Volume AUX level -5 dB - +10 dB) SB900 Rechargeable Battery Information MIC level -36dB - -5 dB When using an SB900 rechargeable battery, battery life is displayed in hours and minutes on the home screen. The battery menu displays battery status: SYST CONF > BATTERY 3. Attach the supplied TA3F audio cable to the receiver camera output. Hrs: Min Left: The number of hours and minutes of battery life left (accurate 4. Mount the receiver on the camera. -
Page 9: System Setup
Radio Frequency (RF) Settings SystemSetup Transmitter Compatibility Scan and Sync The receiver is compatible with both UHF-R and Axient transmitters, but must be Use this procedure to set a receiver and transmitter to the same open channel. set to the correct system mode. Select the transmitter type from the system mode menu (SYS MODE). This configures the receiver with a compatible tonekey, au- Important! Before you begin: dio companding, and IR sync protocol. The UR5 does not have Axient ShowLink • Turn off the RF on the transmitters for the systems you are setting up. (This capabilities. prevents them from interfering with the frequency scan.) • Turn on potential sources of interference such as other wireless systems or Note: Changing modes removes all entries in the MTx list. You will be prompted with devices, computers, CD players, large LED panels, effects processors, and the following warning: MTx MODE LIST WLL BE ERASED?. digital rack equipment so they are operating as they would be during the System Mode Menu presentation or performance (so the scan will detect and avoid any interference SYST CONF > SYS MODE they generate). -
Page 10: Other Settings
Use the ▼▲ buttons to preview the different ways of displaying information on the home screen. Press enter to accept the selection. To manually adjust group, channel or frequency, use the RADIO > SET FREQ menu. Contrast Change the contrast of the LCD from the contrast menu (SYST CONF > Squelch CONTRAST). Squelch mutes the audio output from the receiver when the transmitter tonekey RF Use the ▼▲ buttons to set the desired contrast. signal becomes low or in the presence of high RF noise. While squelch is activate, the blue LED on the portable receiver turns off. Lock Panel WARNING: Adjusting the squelch can negatively affect RF and audio performance. Locks UR5 Controls(UTILITIES > LOCK PANEL). Use the default setting HIGH (NORMAL) unless absolutely necessary. Select and press enter. Squelch Settings Restore HIGH (NORMAL) Default factory setting. Resets UR5 to factory default parameters(SYST CONF > RESTORE). Moderately decreases the signal-to-noise ratio re- Select and press enter. quired to squelch the receiver. Greatly decreases the noise squelch threshold. HIGH NO TK* High squelch without a tonekey. NO SQUELCH* Turns off noise and tonekey squelch. (Used as a... - Page 11 Copying an MTx List to Another Receiver Using Multiple Transmitters with a Single Use COPY/PASTE to transfer the MTx list from one portable receiver to another. Receiver (MTx Mode) 1. Highlight COPY/PASTE from the MTx menu on both receivers (UTILITIES > MTx MODE). The MTx feature stores a list of presets, allowing you to easily switch from one transmitter to another without having to reconfiguring receiver settings. This replac- Important: COPY/PASTE must be highlighted on both receivers. es the need to mount multiple receivers on your camera whenever you only need to tune to one transmitter at a time. 2. Align the receiver IR windows and press enter on the source receiver (the re- The presets are stored as entries in the MTx list. Each entry stores a name, RF ceiver you want to copy from). channel, and receiver camera output volume. Transmitters can be synced to entries The display shows SUCCESS and the LEDs flash on both receivers after trans- in the list, which transfers the entry name and RF channel settings over the IR port. ferring the list. To use the presets, enter MTx mode on the receiver and scroll through the MTx list with the ▼▲ buttons to receive audio from the transmitter on that RF channel. Modifying an MTx List Entry Multiple entries can be set to the same RF channel. This may be desired, for exam- The name, frequency, and camera output volume setting can be modified for each ple, if the same transmitter will be used at different times throughout a performance...
-
Page 12: Specifications
Axient Mode: 28 kHz tone key pilot Audio Frequency 50Hz -16 kHz Response Ultimate Quieting >100 dBm=, A-weighted Total Harmonic Distortion <0.4% THD (typical) (ref. ±20 kHz deviation @1 kHz) Signal-To-Noise Ratio 90 dB (typical) (A-Weighted) Companding Patented Shure Audio Reference Companding Camera Output Electronically balanced Configuration: mono TA3 Maximum output power: adjustable -35dBV to +10dBV peak Pin Assignment: Pin 1 = Gnd Pin 2 = Hot Pin 3 = Cold Headphone Output Adjustable Range Configuration: Unbalanced mono (L=R), 1/8th inch Minimum load impedance: 9.5 ohms... -
Page 13: Accessories And Parts
ACCESSORIES AND PARTS UR5 Frequency Bands - ABU/EMEA Frequency Band Range Freq. Span (MHz) Furnished Accessories Name 470-530 TA3F-to-XLRm audio cable WA451 470-530 TA3F-to-1/8”(3.5mm) audio cable WA461 518-578 Camera shoe mount AFP512 518-578 Optional Accessories 578-638 Shure Rechargeable Lithium Battery SB900 578-638 Shure 8-bay Recharging Station SBC800 J5HK 578-638 Anton Bauer plate mount AFP522 606-666 638-698 Anton Bauer DC plate mount AFP522DC... -
Page 14: Licensing Information
Meets essential requirements of the following European Directives: Licensing: A ministerial license to operate this equipment may be required in certain • R&TTE Directive 99/5/EC areas. Consult your national authority for possible requirements. Changes or modifi- • WEEE Directive 2002/96/EC, as ammended by 2008/34/EC cations not expressly approved by Shure Incorporated could void your authority to op- erate the equipment. Licensing of Shure wireless microphone equipment is the user’s Please follow your regional recycling scheme for electronic waste responsibility, and licensability depends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropri- • RoHS Directive 2002/95/EC, as ammended by 2008/35/EC ate telecommunications authority concerning proper licensing, and before choosing • Conforms to European Regulation (EC) No. 1275/2008, as amended. and ordering frequencies. Meets requirements of the following standards: EN 300 422 Parts 1 and 2, EN 301 489 Parts 1 and 9, EN60065. INFORMATION TO USER The UR5 was confirmed complaint based on use of LR6 AA alkaline batteries and This equipment has been tested and found to comply with the limits for a Class B SB900 battery pack as specified in the instructions. Use of other batteries with the digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to equipment has not been investigated. Use of any other battery can result in risk of provide reasonable protection against harmful interference in a residential installation. fire hazards. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will Certified in Canada by IC to RSS-123. not occur in a particular installation. If this equipment does cause harmful interference IC: 616A-UR5A, 616A-UR5B, 616A-UR5D, 616A-UR5E to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the Approved under the Declaration of Conformity (DoC) provision of FCC Part 15. following measures: This device complies with Industry Canada licence-exempt RSS standard(s). - Page 15 UTILITIES MTx MODE ENTER MODE ADD CURRENT DELETE ALL COPY/PASTE VOL ASSIGN exit enter sync scan exit enter sync scan TONE GEN RX NAME LOCK PANEL SYNC SYST CONF SYS MODE SET MODE SET FREQ RADIO UHFR FULL SCAN AXIENT RUN SCAN DISPLAY SPECTRUM...
