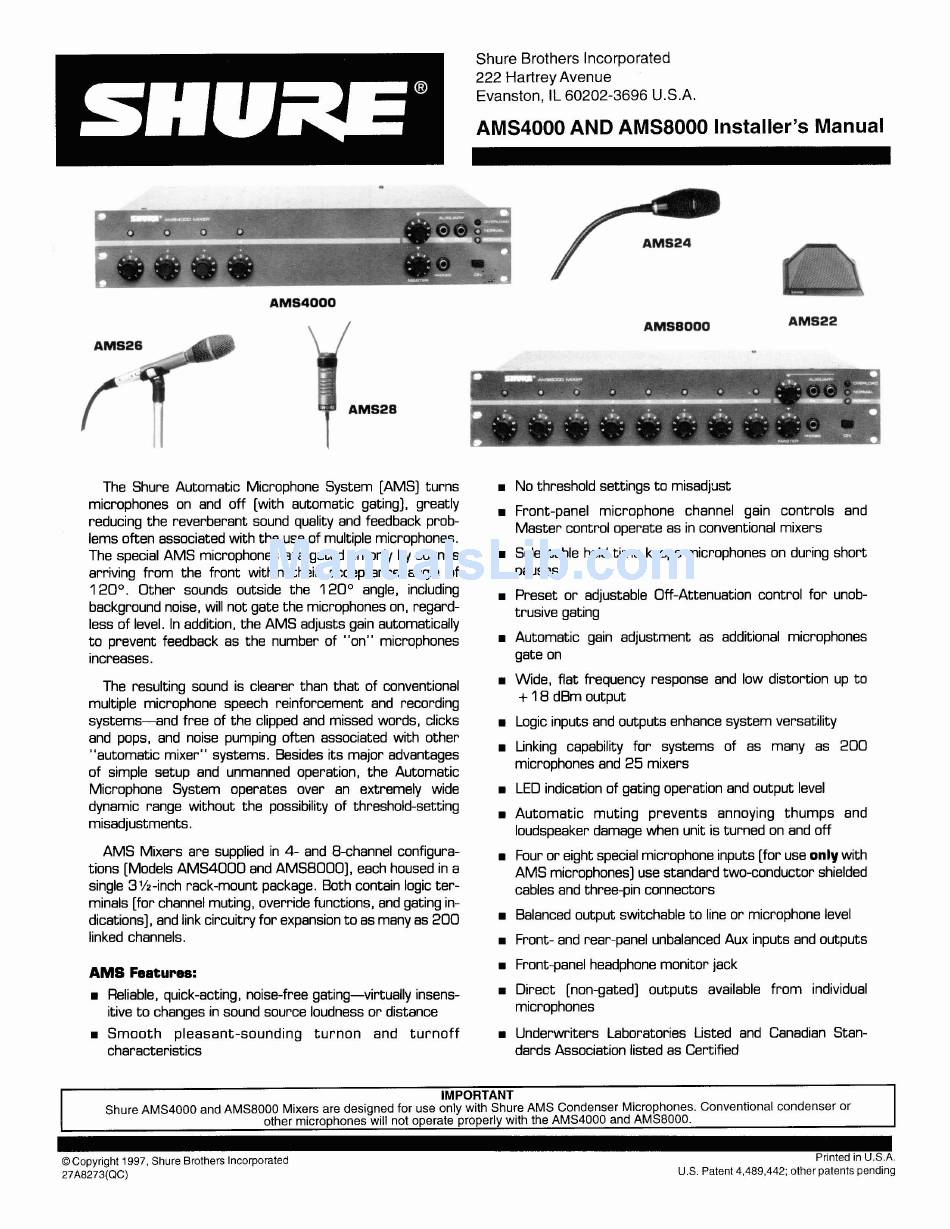

AMS4000 AND AMS8000 Installer's Manual
The Shure Automatic Microphone System [AMS] turns
microphones on and off [with automatic gating], greatly
reducing the reverberant sound quality and feedback prob-
lems often associated with the use of multiple microphones.
The special AMS microphones are gated on only by sounds
arriving from the front within their acceptance angle of
1 20°. Other sounds outside the 120° angle, including
background noise, will not gate the microphones on, regard-
less of level. In addition, the AMS adjusts gain automatically
to prevent feedback as the number of "on" microphones
increases.
The resulting sound is clearer than that of conventional
multiple microphone speech reinforcement and recording
systems-and free of the clipped and missed words, clicks
and pops, and noise pumping often associated with other
"automatic mixer" systems. Besides its major advantages
of simple setup and unmanned operation, the Automatic
Microphone System operates over an extremely wide
dynamic range without the possibility of threshold-setting
misadjustments.
AMS Mixers are supplied in 4- and Schannel configura-
tions [Models AMS4000 and AMS80001, each housed in a
single 3lh-inch rack-mount package. Both contain logic ter-
minals [for channel muting, override functions, and gating in-
dications], and link circuitry for expansion to as many as 2 0 0
linked channels.
AMS Features:
w
Reliable, quick-acting, noise-free gating-virtually insens-
itive to changes in sound source loudness or distance
w
Smooth pleasant-sounding turnon and turnoff
characteristics
w
No threshold settings to misadjust
w
Front-panel microphone channel gain controls and
Master control operate as in conventional mixers
w
Selectable hold time keeps microphones on during short
pauses
w
Preset or adjustable Off-Attenuation control for unob-
trusive gating
Automatic gain adjustment as additional microphones
gate on
w
Wide, flat frequency response and low distortion up to
+
18 dBm output
w
Logic inputs and outputs enhance system versatility
w
Linking capability for systems of as many as 2 0 0
microphones and 25 mixers
LED indication of gating operation and output level
w
Automatic muting prevents annoying thumps and
loudspeaker damage when unit is turned on and off
w
Four or eight special microphone inputs [for use only with
AMS microphones] use standard two-conductor shielded
cables and three-pin connectors
w
Balanced output switchable to line or microphone level
w
Front- and rear-panel unbalanced Aux inputs and outputs
w
Front-panel headphone monitor jack
w
Direct [non-gated] outputs available from individual
microphones
w
Underwriters Laboratories Listed and Canadian Stan-
dards Association listed as Certified
.....
-
......
-.
Shure AMS4000 and AMS8000 Mixers are designed for use only with Shure AMS Condenser Microphones. Conventional condenser or
other microphones will not operate properly with the AMS4000 and AMS8000.
-
OCopyr~ght 1997, Shure Brothers lncorporated
27A8273(QC)
Printed in U.S.A.
U.S. Patent 4,489,442; other patents pending
