Shure AXU Series User Manual

This user guide provides detailed instructions for your Access UHF series wireless system. To get your system up and
running in minutes, see the Access UHF Series Quick Set Up Guide.
Your new Access UHF Series system is designed to give you both the freedom of a wireless system and world-famous
Shure sound quality. This manual covers all four Access UHF Series systems: the AXU58D handheld systems; the AXUGD
bodypack systems; the AXUHD Headset systems; and the AXULD lavalier microphone system.
Wireless
Hand-held systems for
System
Components
Transmitter: AXU2 Hand-Held
Microphone-Transmitter
Microphone: SM58 Microphone
Receiver:
Power Supply:
Battery:
Supplied Microphone Stand Adapter,
Accessories: Receiver Feet,
VELCRO
Mounting Strips
1. Power On Indicator: This green light glows when DC Power
ia applied to receiver.
2. Diversity A/B Indicators: These yellow lights glow when the
receiver detects RF signals from the transmitter. When only one
light glows, the signal is being received on only one antenna.
3. Audio Peak Indicator: This red light flickers when the receiver
audio output signal approaches the overload clipping level.
4. Volume Control: Increases or decreases receiver output
volume. It does not affect audio clipping levels.
5. Antennas: Receive RF signals from the transmitter. For best
performance, point the receiver antennas away from each
other at a 45 angle.
1
6. / " Phone Jack Connector (Unbalanced High Z Output):
4
An unbalanced audio cable with a
ACCESS UHF SERIES USER GUIDE
AXU58D AXUGD
Bodypack systems for
singers electric guitar, bass, and
other electric instruments
WL184 Supercardioid
Lavalier Microphone
PS20 (105–125 VAC, 60 Hz), o PS20E (230 VAC, 50 Hz)
Receiver Feet,
VELCRO Receiver Mounting
Receiver

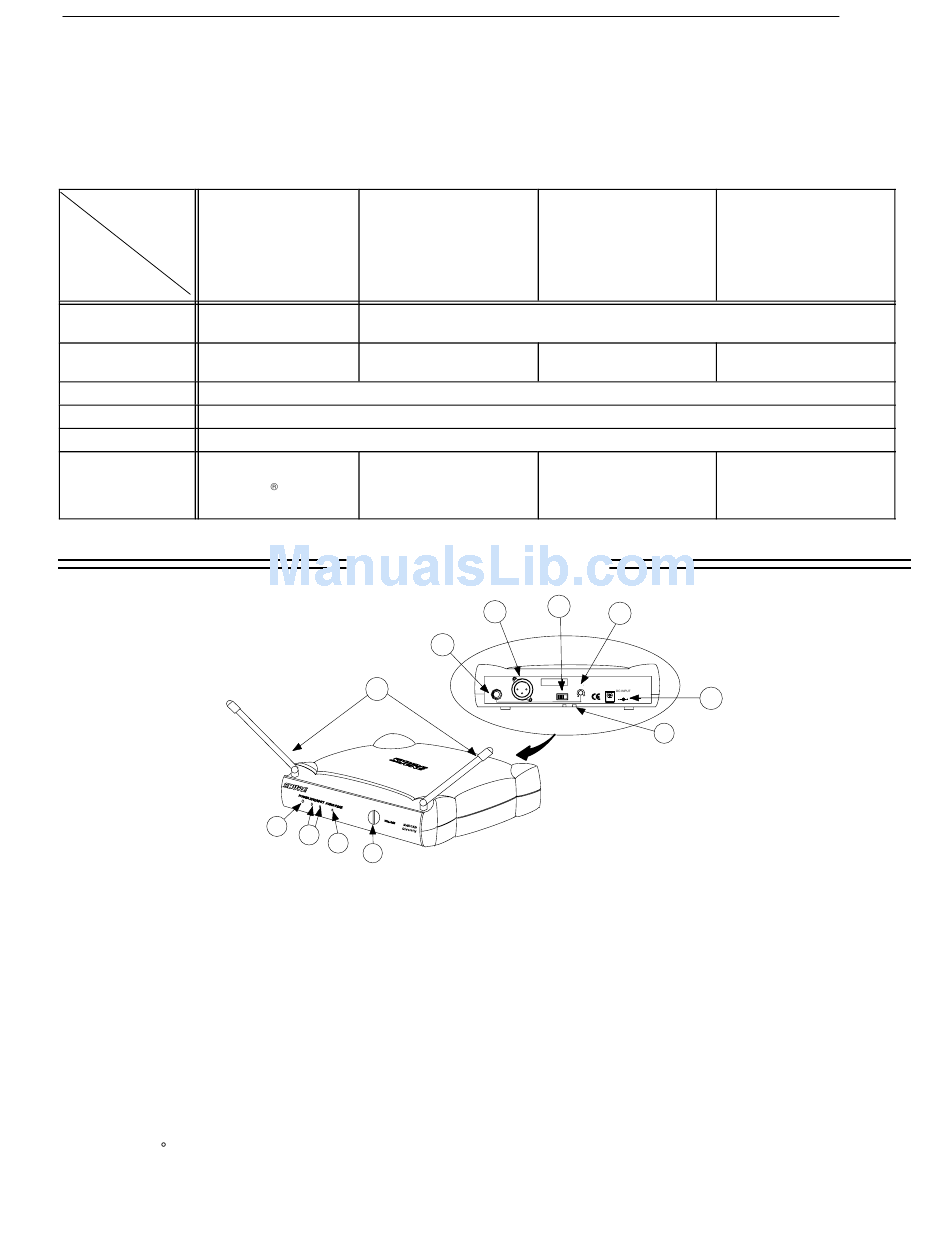

RECEIVER FEATURES
5
. .
. .
.
. .
.
.
.
1
2
3
4
FIGURE 1. AXU4 RECEIVER FEATURES
1
/ " phone plug (such as a
4
AXUHD
Bodypack system for hands-
free applications, such as
aerobics instruction or
percussion
AXU1 Body-Pack Transmitter
WH20TQG
Headset Microphone
AXU4 Diversity Receiver
9 V Alkaline (Duracell MN 1604)
Receiver Feet,
VELCRO Receiver Mounting
Strips Strips
8
7
6
UNBALANCED
HIGH Z SQUELCH
LINE MIC
BALANCED
LOW Z
MIN MAX
standard guitar cable) can be used between this connector and
your amplifier input.
7. XLR Audio Output Connector: Balanced low Z micro-
phone level output.
8. Mic/Line Switch: Switches output of XLR connector from
microphone level to line level. Use line level when connect-
ing receiver to a device without an available mic-level input,
such as a power amplifier, signal processor, or VCR.
9. Squelch Control: Adjusts squelch to enhance signal quality or
extend system range. This control is factory pre-set, and nor-
mally does not require further adjustment.
10. Power Input Connector: Mates with the AC power adapter.
11. Power Cable Retainer: Secures the AC adapter cable to the
receiver.
1
AXULD
Bodypack system for public
speaking, theater, or
business presentations
A302
Adapter Cable
Receiver Feet,
VELCRO Receiver Mounting
Strips
9
12–18 VDC
10
11
