Installation
Invalid Cascading. An example of invalid cascading is shown in Figure 10.
When sending packets over the network, it is possible to send information
through up to four cascaded repeaters; however, five or more cascaded
repeaters will not produce guaranteed results. Referring to Figure 10, there
are four repeaters between PC A and PC B so the connection between PC A
and PC B is possible; there are a total of five repeaters between PC A and PC
C, making the connection between PC A and PC C invalid.
18

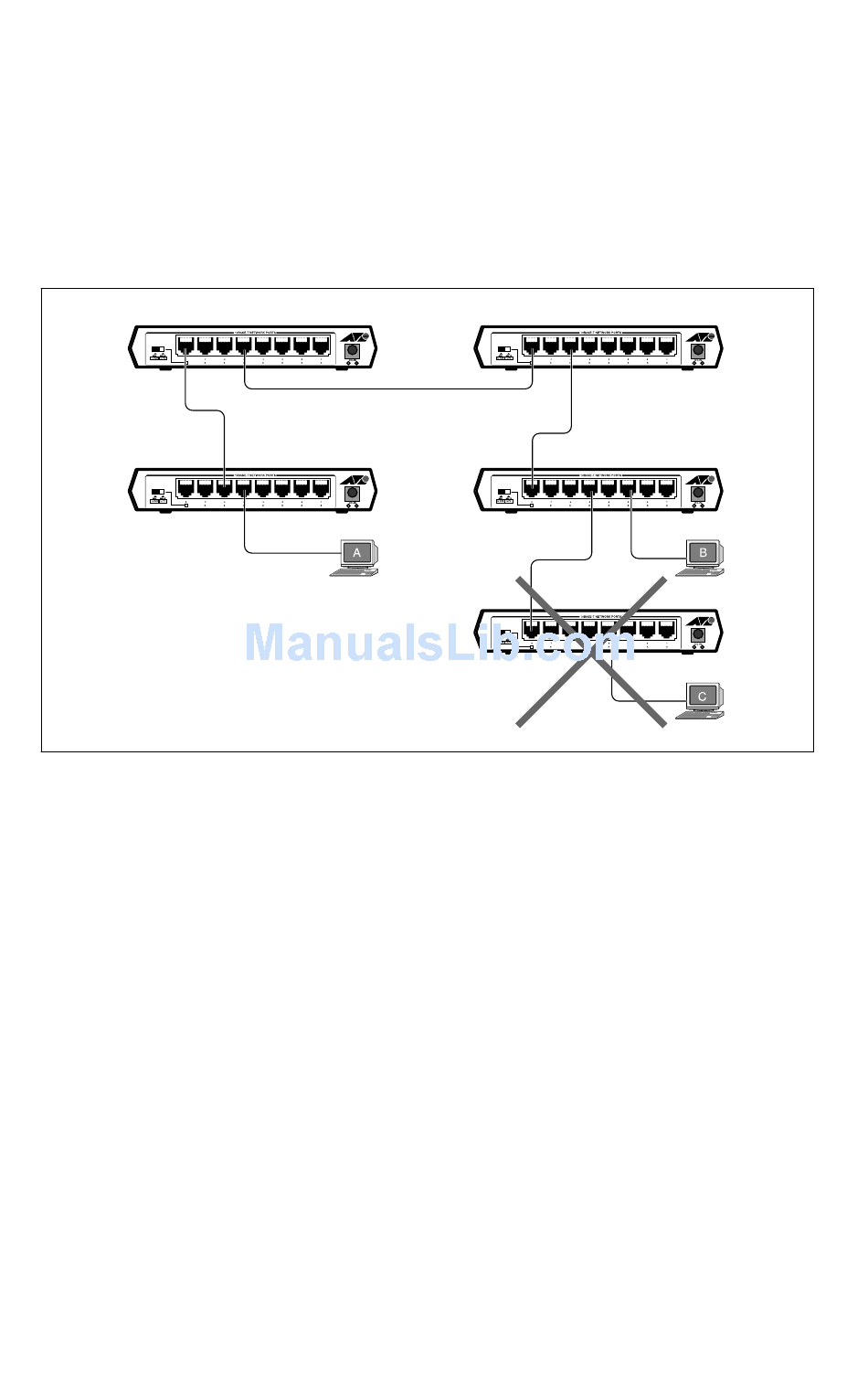

Figure 10: Invalid LAN Connectivity
