IS-IPRY8
Input/Output Adaptor for the IS-IPMV and IS-IPDV(F)
Programming Manual
ATTENTION:
This is the programming manual for the IS-IPRY8 only. Refer to the IS Series IP Network
Direct Installation and Setting Manuals for complete information on IS-IP components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS-IPRY8 and is the answer not in the manual?

Questions and answers

Related Manuals for Aiphone IS-IPRY8

Summary of Contents for Aiphone IS-IPRY8

  • Page 1 0313 IS-IPRY8 Input/Output Adaptor for the IS-IPMV and IS-IPDV(F) Programming Manual ATTENTION: This is the programming manual for the IS-IPRY8 only. Refer to the IS Series IP Network Direct Installation and Setting Manuals for complete information on IS-IP components.

  • Page 2: Package Contents

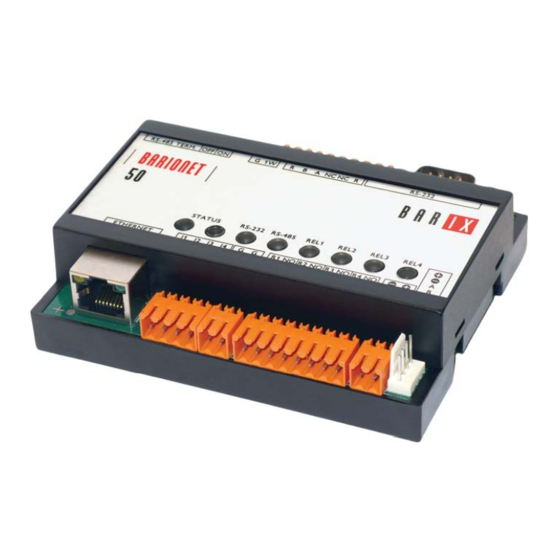

    Unique IP address for each adaptor Overview / Description The IS-IPRY8 is an IP adaptor with 4 relay outputs and 4 contact inputs. This adaptor is designed to work with Aiphone’s IS-IPMV master stations and IS-IPDV(F) video door stations. Relay outputs on the IS-IPRY8 can be programmed to trigger when a door station is calling in, while in communication, or while calling and communicating.
  • Page 3 Uploading SIF / INI File to Door / Master Stations The SIF / INI text fi le must be uploaded to each IS-IP device associated with the IS-IPRY8 adaptor. ! Note that the IP address for each IS-IP unit will be unique for your network settings.
  • Page 4 Confi guring the IS-IPRY8 The IS-IPRY8 has a default IP address of 192.168.0.45. Open a web browser and point the address bar to http://192.168.0.45 for access to the adaptor. The fi rst screen to appear will be the Device Status screen.
  • Page 5 Output Relay Programming The IS-IPRY8 has 4 relays. These relays can be programmed to trigger when a specifi c door station is calling, while in communication with a specifi c door station, or while calling and communicating with a specifi c door station.
  • Page 6 Once all masters have been checked, click Apply Settings at the bottom of this window to save the settings to memory. Reboot to update adaptor settings. Note: Only IS-IPMV masters can be enabled for door release using the IS-IPRY8. 6 | IS-IPRY8 Programming Manual...

  • Page 7: Input Programming

    Remote Call-In: The IS-IPRY8 adaptor has 4 inputs. These inputs can be programmed to trigger a call-in from a specifi c door station to a specifi c master station or group of master stations (max. 20). The IS-IPRY8 inputs can have different calling rules than the default calling rule set under advanced stations settings in the IS Host Programming.

  • Page 8: Fcc Warning

    IS-IPRY8 Dimensions Mounting: The IS-IPRY8 adaptor can mount to an Aiphone W-DIN11 mounting rail (sold separately). Depth: 1-1/4” 4-1/8” IS-IPRY8 Wiring = Power Transformer (use proper power for the strike, mag lock, or external signaling device being used). Relay contact rating: 30V DC, 0.5A.
