LEM, LEF, LAF/LDF, or NEM/NDR Series Masters
The BA-1 Paging Adaptor allows paging to external speakers from the NEM, LAF, LEF, LDF
and LEM series master stations. For each zone of paging, use a BA-1 with the appropriate
sized amplifier. The BA-1 provides outgoing paging only. Talkback is not available.

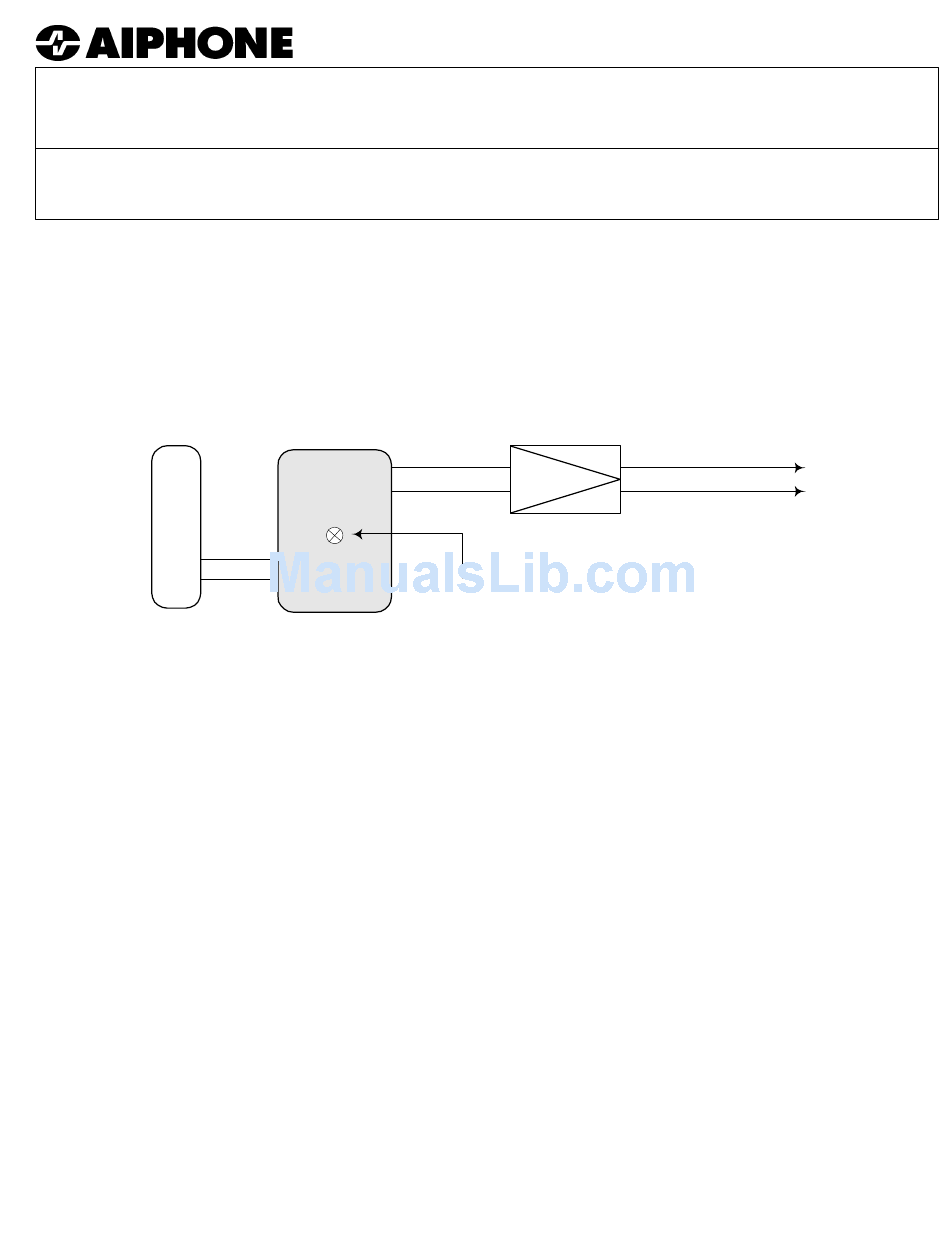

WIRING DIAGRAM:
NEM, LAF
or LEF
Master
1
2
3
4
5
E
SPECIFICATIONS:
Power Source: Supplied by master
Input:
20 ohms
Output:
10K ohms
Amplifier input
requirements: Aux input (10K ohms)
Dimensions:
4-1/8"H x 2-1/2"W x 1-1/2"D
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
Paging Adaptor
- INSTRUCTIONS -
BA-1
Org
OUTPUT
Brn
TONE
Yel
INPUT
Grn
NOTES:
1. The above example shows station 5 accessing the paging
zone. Any unused station can be used for a paging zone.
2. The colored wires at each end of the BA-1 are the Input and
Output. Connect them to the intercom and amplifier as
shown.
3. Only wiring concerning the BA-1 is shown here. For
complete
installation information see the system's
instruction manual.
4. The TONE control is located on the top of the BA-1, and
requires a screwdriver for adjustment.
TOLL FREE TECHNICAL SUPPORT:
TOLL FREE FAX LINE:
E-MAIL: tech-serv@aiphone.com
BA-1
Use with:
Amplifier
HOT
GND
TONE: Control to adjust the
paging volume
BA-1 COLOR CODE DEFINITIONS:
Org:
Brn:
Yel:
Grn:
(800) 692-0200
(800) 832-3765
OUTPUT
Hot side of output
(Connect to amplifier input)
Ground side of output
(Connect to amplifier input)
Hot side of BA-1 input
(Connect to station # on master)
Ground side of input
(Connect to "E" terminal on master)
Special
Order
Products
TO PAGING
SPEAKERS
BA-1 Instr.
1198bkjd
